SEALMASTER CRPS-PN31T 712661 Pillow Block Bearing, 2 Bolt, 1.93 Inch Bore, Concentric Collar Mount
Item: BD9FTJ
Model: CRPS-PN31T
In Stock
Get it by Wednesday, Apr 15
£525.65/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Ability To Relubricate | Yes |
|---|---|
| Base Length | 8.13" |
| Base To Center Height | 2 1/4" |
| Base Width | 2.38" |
| Bearing Insert Finish | Phosphorus Nickel Coated |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bolt Size | 5/8" |
| Bolt Spacing Max | 6 1/2" |
| Bolt Spacing Min | 6" |
| Bore Dia. | 1 15/16" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Centerline To Outermost Bearing Face | 1 7/25" |
| Dynamic Load Capacity | 7889 lbs. |
| End Cap | Yes |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 3/4" |
| Grease Fitting Thread Size | 1/8" |
| Grease Fitting Thread Type | NPT |
| Housing Base | Solid |
| Housing Color | Silver |
| Housing Construction | One Piece |
| Housing Material | Stainless Steel |
| Housing Style | Pillow Block |
| Housing Type | Pillow Block, Two Bolt |
| Htc | 8483.20.8040 |
|---|---|
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Ring Outside Diameter | 2.469" |
| Insert | PN-31T |
| Ip Rating | IP69K |
| Length Through Bore | 2.03" |
| Locking Collar Outside Diameter | 3.38" |
| Lubrication Type | Calcium Sulfonate Nlgi 2 Nsf H1 Food Grade Grease |
| Max. Operating Temperature | 220°F |
| Max. Speed | 1500 RPM |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Options | Corrosion Resistant |
| Outer Ring Land Profile | Standard |
| Overall Height | 4 14/25" |
| Overall Length | 5 1/2" |
| Overall Width | 2.38" |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | Multi-Lip Contact Seal |
| Shaft Locking Type | Concentric |
| Size Code | 2-115 |
| Static Load Rating | 5216 lbs. |
| Vibration Frequency Fundamental Train | 0.0068 cPS |
| Vibration Frequency Inner Ring Defect | 0.0984 cPS |
| Vibration Frequency Outer Ring Defect | 0.0683 cPS |
| Vibration Frequency Roller Spin | 0.0445 cPS |
Product Details
Pillow Block Bearing
Shipping Information
| height | 13.18 |
|---|---|
| length | 22.86 |
| width | 6.05 |
| country of origin | US |
|---|---|
| weight | 3.555000 |
Related Products
| Style | Model | Shaft Locking Type | Bore Dia. | Overall Length | Overall Width | Overall Height | Seal Type | Insert | Max. Speed | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|

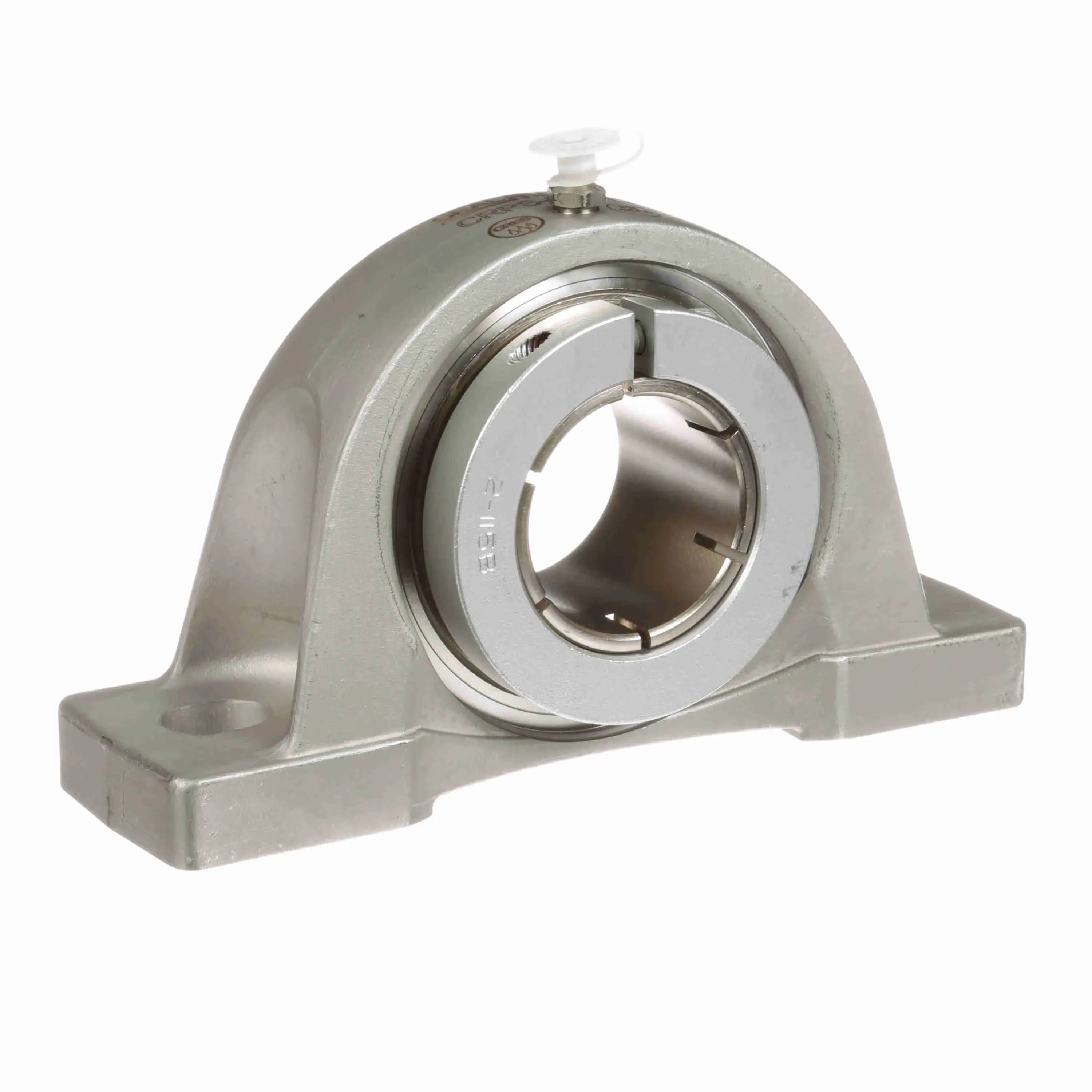

| A | CRPS-PN20RT | Concentric | 1 1/4" | 5 12/25" | 1 22/25" | 3.38" | Multi-Lip Contact Seal | PN-20RT | 2300 RPM | 253.05 | |
| B | CRPS-PN204 RMW | Set Screw | 20 mm | 5 12/25" | 1 1/2" | 2 14/25" | Multi-Lip Contact Seal | PN-204 | 3100 RPM | 182.04 | |
| C | CRPS-PN39T RMW | Concentric | 2 7/16" | 10 1/4" | 2 3/4" | 5 14/25" | Multi-Lip Contact Seal | PN-39T | 1250 RPM | 625.40 | |
| B | CRPS-PN23 RMW | Set Screw | 1 7/16" | 5 1/2" | 1 22/25" | 3 3/4" | Multi-Lip Contact Seal | PN-23 | 2000 RPM | 277.85 | |
| C | CRPS-PN24T RMW | Concentric | 1 1/2" | 7 1/4" | 2.13" | 3.94" | Multi-Lip Contact Seal | PN-24T | 1750 RPM | 327.27 | |
| C | CRPS-PN27T RMW | Concentric | 1 11/16" | 7 1/2" | 2.13" | 4 1/4" | Multi-Lip Contact Seal | PN-27T | 1600 RPM | 414.24 | |
| C | CRPS-PN19T RMW | Concentric | 1 3/16" | 7 1/2" | 1 22/25" | 3.38" | Multi-Lip Contact Seal | PN-19T | 2300 RPM | 253.05 |
