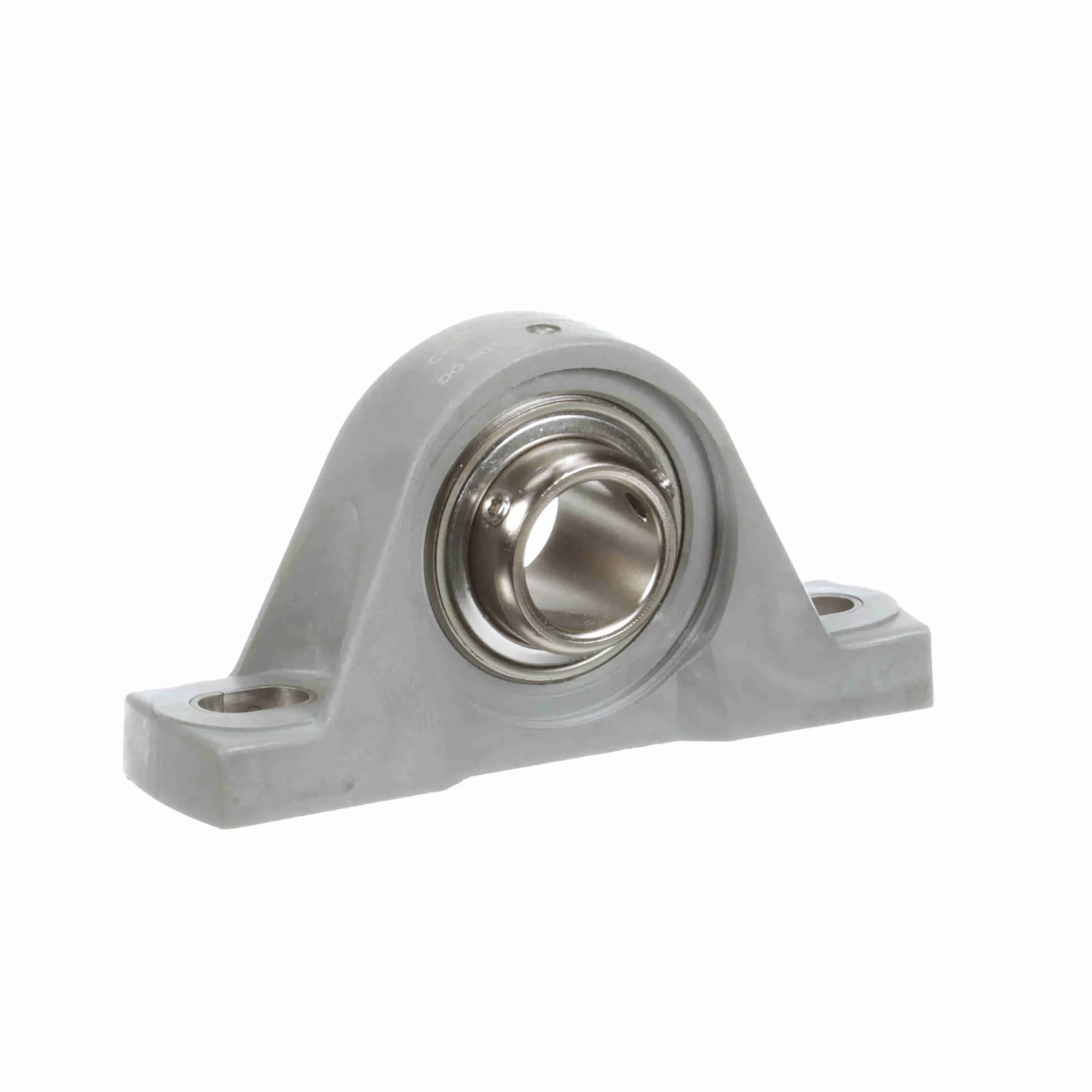

SEALMASTER CRPC-PN16 RMW 712991 Pillow Block Bearing, 2 Bolt, 1 Inch Dia, Setscrew Locking, Composite Housing
Item: BE4UUQ
Model: CRPC-PN16 RMW
In Stock
Get it by Wednesday, Apr 15
£174.65/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Ability To Relubricate | No |
|---|---|
| Base Length | 5 1/2" |
| Base To Center Height | 1 7/16" |
| Base Width | 1 1/2" |
| Bearing Insert Finish | Phosphorus Nickel Coated |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bolt Size | 3/8" |
| Bolt Spacing Max | 4 1/2" |
| Bolt Spacing Min | 3 3/4" |
| Bore Dia. | 1" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Centerline To Outermost Bearing Face | 0.813" |
| Dynamic Load Capacity | 2801 lbs. |
| End Cap | Yes |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 14/25" |
| Grease Fitting Thread Size | 1/4"-28 |
| Housing Base | Solid |
| Housing Color | Light Gray |
| Housing Construction | One Piece |
| Housing Material | Composite |
| Housing Style | Pillow Block |
| Housing Type | Pillow Block, Two Bolt |
| Htc | 8483.20.8040 |
|---|---|
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Ring Outside Diameter | 1 3/8" |
| Insert | PN-16 |
| Ip Rating | IP69K |
| Length Through Bore | 1 3/8" |
| Lubrication Type | Calcium Sulfonate Nlgi 2 Nsf H1 Food Grade Grease |
| Max. Operating Temperature | 220°F |
| Max. Speed | 2700 RPM |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Options | Corrosion Resistant Reduced Maintenance Lubed For Life |
| Outer Ring Land Profile | Tapered Lands |
| Overall Height | 2.81" |
| Overall Length | 5 1/2" |
| Overall Width | 1 1/2" |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | Multi-Lip Contact Seal |
| Shaft Locking Type | Set Screw |
| Size Code | 2-015 |
| Static Load Rating | 1651 lbs. |
| Vibration Frequency Fundamental Train | 0.0068 cPS |
| Vibration Frequency Inner Ring Defect | 0.0985 cPS |
| Vibration Frequency Outer Ring Defect | 0.0682 cPS |
| Vibration Frequency Roller Spin | 0.0442 cPS |
Product Details
Pillow Block Bearing
Shipping Information
| height | 4.29 |
|---|---|
| length | 8.89 |
| width | 14.6 |
| country of origin | US |
|---|---|
| weight | 0.373500 |
Related Products
| Style | Model | Shaft Locking Type | Bore Dia. | Overall Length | Overall Width | Overall Height | Seal Type | Insert | Max. Speed | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | CRPC-PN14 | Set Screw | 7/8" | 5 1/2" | 1 1/2" | 2.81" | Multi-Lip Contact Seal | PN-14 | 2700 RPM | 147.07 | |
| B | CRPC-PN16T RMW | Concentric | 1" | 5 1/2" | 1 1/2" | 2.81" | Multi-Lip Contact Seal | PN-16T | 2700 RPM | 208.27 | |
| C | CRPC-PN208T | Concentric | 40 mm | 7 1/4" | 2.13" | 4.02" | Multi-Lip Contact Seal | PN-20T | 1750 RPM | 241.01 | |
| B | CRPC-PN24T RMW | Concentric | 1 1/2" | 7 1/4" | 2.13" | 4.02" | Multi-Lip Contact Seal | PN-24T | 1750 RPM | 240.74 | |
| D | CRPC-PN19T | Concentric | 1 3/16" | 5 1/2" | 1.86" | 3.33" | Multi-Lip Contact Seal | PN-19T | 2300 RPM | 181.24 | |
| E | CRPC-PN20RT RMW | - | - | - | - | - | High Performance Seal | - | - | 900.44 | |
| F | CRPC-PN19 | Set Screw | 1 3/16" | 5 1/2" | 1.86" | 3.33" | Multi-Lip Contact Seal | PN-19 | 2300 RPM | 163.57 |
