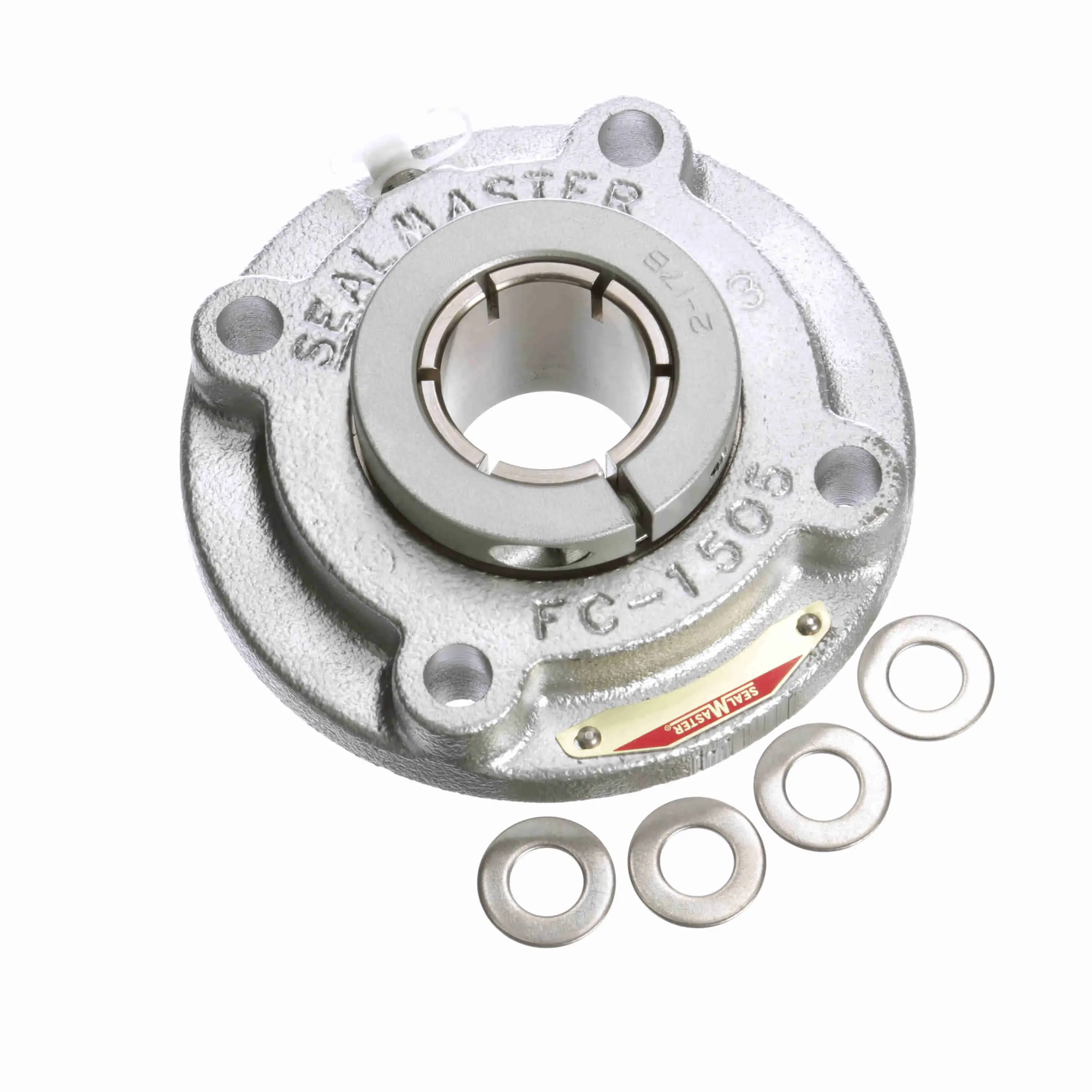

SEALMASTER CRFCF-PN32T 711393 Flange Cartridge Ball Bearing, Phosphorus Nickel Coated, Concentric Lock, 2 Inch

Item: BE3BVF
Model: CRFCF-PN32T
In Stock

Get it by Wednesday, Apr 15

£937.28/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Ability To Relubricate Yes
Bearing Insert Finish Phosphorus Nickel Coated
Bearing Insert Material Steel
Bearing Insert Material Grade 52100
Bearing Insert Type Standard Duty
Bolt Circle 5 3/8"
Bolt Size 7/16"
Bore Dia. 2"
Bore Shape Straight
Cage Material Polyphenylene Sulfide
Cage Type Land Riding Retainer
Dynamic Load Capacity 9752 lbs.
End Cap No
Fixed Vs. Expansion Fixed
Foot Height 11/25"
Grease Fitting Thread Size 1/8"
Grease Fitting Thread Type NPT
Housing Coating Fluoropolymer Coated
Housing Color Gray
Housing Construction One Piece
Housing Material Cast Iron
Housing Outside Diameter 6.38"
Housing Style Flange Block
Housing Type Flange, Piloted
Htc 8483.20.4040
Inner Race Heat Treat Method Zone Hardened
Inner Ring Outside Diameter 2.719"
Insert PN-32T
Ip Rating IP69K
Length Through Bore 2 1/4"
Locking Collar Outside Diameter 3 1/2"
Lubrication Type Calcium Sulfonate Nlgi 2 Nsf H1 Food Grade Grease
Max. Operating Temperature 220°F
Max. Speed 1350 RPM
Misalignment Capability -2° to +2°
Misalignment Type Static Only
Options Corrosion Resistant
Outer Ring Land Profile Standard
Overall Height 2 1/4"
Overall Length 6.38"
Overall Width 6.38"
Pilot Configuration Piloted
Pilot Depth 5/8"
Pilot Diameter 4 1/2"
Radial Clearance Standard
Rolling Element Ball Bearing
Seal Type Multi-Lip Contact Seal
Shaft Locking Type Concentric
Size Code 2-23
Static Load Rating 6601 lbs.

Product Details

Flange Cartridge Ball Bearing

Shipping Information

height 16.51
length 17.14
width 6.2
country of origin US
weight 3.469500
