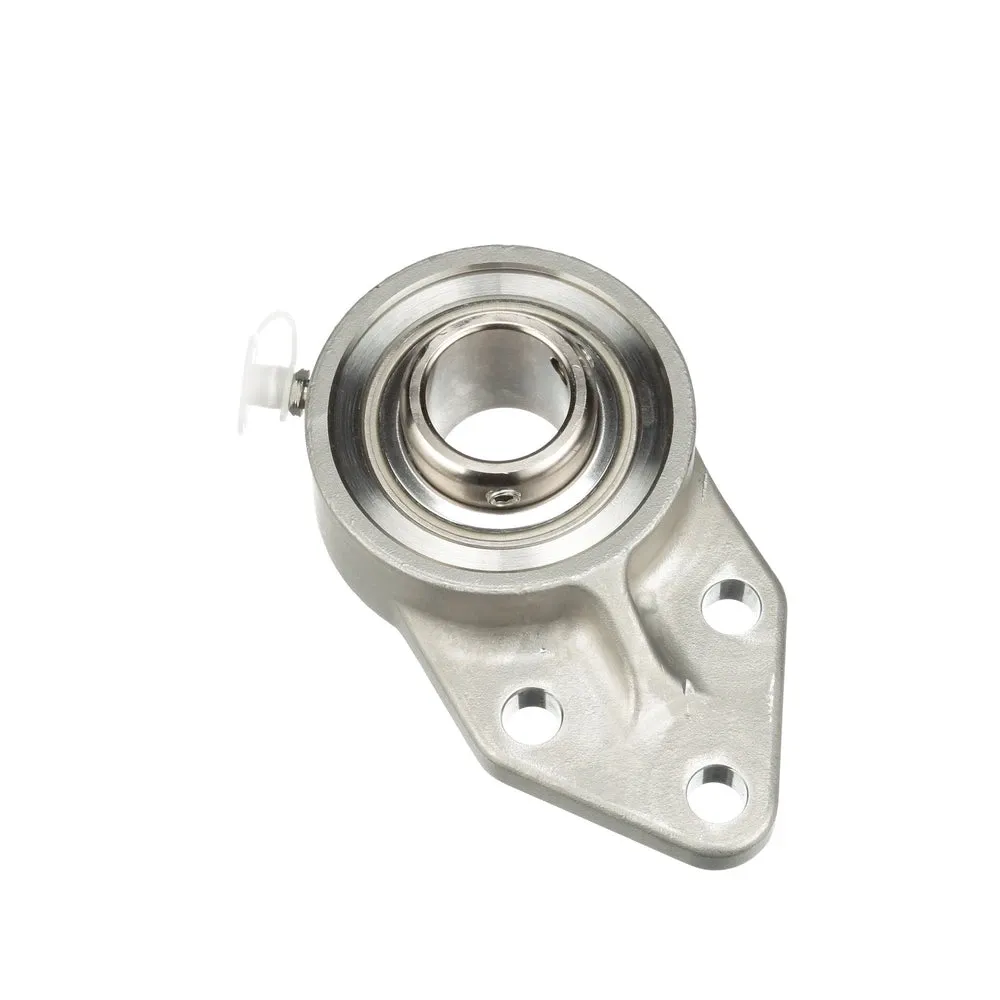

Sealmaster CRFBF-PN32R | 711895 | Flange-Mount Ball Bearing Unit, 2 Inch Bore

SEALMASTER CRFBF-PN32R 711895 Flange-Mount Ball Bearing Unit, 2 Inch Bore

Item: BD9FPH

Model: CRFBF-PN32R

In Stock

Get it by Thursday, Apr 16

Specifications

Base To Center Height	5.19"
Bearing Centerline To Bolt Hole Center	2 15/16"
Bearing Insert Finish	Phosphorus Nickel Coated
Bearing Insert Material	Steel
Bearing Insert Material Grade	52100
Bearing Insert Type	Standard Duty
Bearing Type	Three Bolt Flange Bracket
Bolt Center To Center Length	2.75"
Bolt Size	1/2"
Bolt Spacing	2 3/4"
Bolt Spacing Height Direction	1 5/8"
Bore Dia.	2"
Bore Shape	Straight
Cage Material	Polyphenylene Sulfide
Cage Type	Land Riding Retainer
Coating Finish	Silver, Gray
Duty Type	Standard Duty
Dynamic Load Capacity	7889 lbs.
End Cap	No
Family Series	Sealmaster Bearings, CRFBF Series
Fixed Vs. Expansion	Fixed
Foot Height	1/2"
Grease Fitting Thread Size	1/8"
Grease Fitting Thread Type	NPT
Housing Coating	Fluoropolymer Coated
Housing Color	Silver, Gray
Housing Construction	One Piece
Housing Material	Fluoropolymer Coated Cast Iron
Housing Material	Cast Iron
Housing Style	Flange Block
Housing Type	Flange, Bracket, Three Bolt
Housing Width	4 14/25"
Housing Width	4.56"
Htc	8483.20.4040
Inner Race Heat Treat Method	Zone Hardened

inner ring outside dia.	2.469"
Insert	PN-32R
Insert Material	52100 Steel, High Phosphorus Electroless Nickel Plated
Ip Rating	IP69K
Length Through Bore	2.027"
Locking Device	Set Screw
Lubrication Type	Calcium Sulfonate NLGI 2 NSF H1 Food Grade Grease
Max Operating Temperature	220°F
max. operating temp.	220°F
Max. Rpm	1350 RPM
Max. Speed	1500 RPM
Misalignment Capability	-2° to +2°
Misalignment Type	Static Only
Operating Temp. Range	-20°F to +220°F
Options	Corrosion Resistant
Outer Ring Land Profile	Standard
Overall Height	2 4/25"
Overall Length	7.47"
Overall Width	4 14/25"
Pilot Configuration	No Pilot
Radial Clearance	Standard
Replacement Bearing	PN-32R
Rolling Element	Ball Bearing
Seal Type	Multi-Lip Contact Seal
Seal Type	High Performance Triple Lip Seal
Series	CRFBF Series
Setscrew Torque	230 lbs.-in. to 300 lbs.-in.
Shaft Locking Type	Set Screw
Size Code	2-115
Static Load Rating	5216 lbs.
Type Of Bearing	Ball
Vibration Frequency Fundamental Train	0.0068 cPS
Vibration Frequency Inner Ring Defect	0.0984 cPS
Vibration Frequency Outer Ring Defect	0.0683 cPS
Vibration Frequency Roller Spin	0.0445 cPS

Country Of Origin	US
Weight	2.295000
