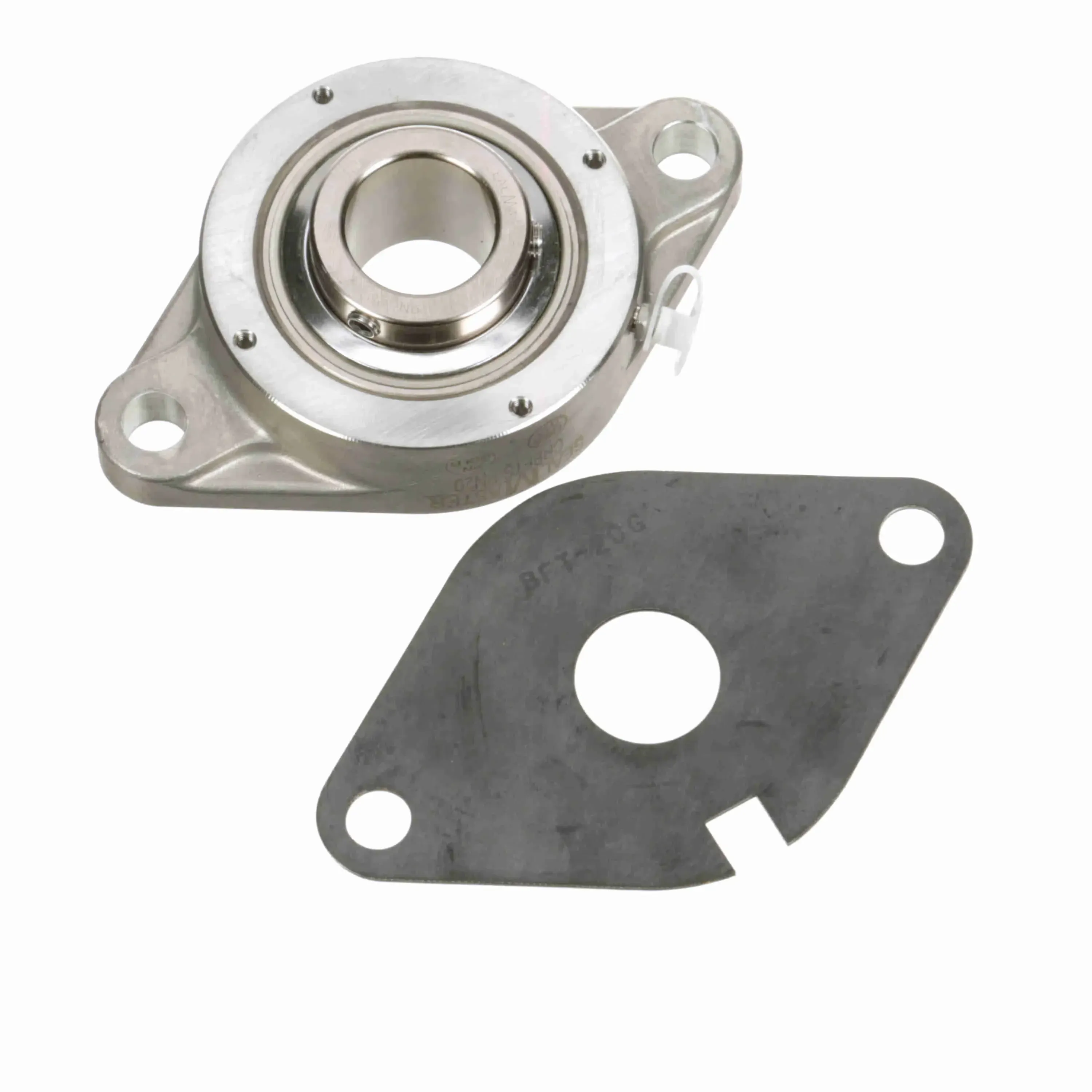

SEALMASTER CRBFTS-PN20 711743 Flange Ball Bearing, 2 Bolt, Phosphorus Nickel Coated, Setscrew Lock, 1.25 Inch

Item: BF2NJC
Model: CRBFTS-PN20
In Stock

Get it by Thursday, Apr 16

£363.35/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Ability To Relubricate Yes
Backside Shield/seal Backside Shield Included Loose In Box
Bearing Insert Finish Phosphorus Nickel Coated
Bearing Insert Material Steel
Bearing Insert Material Grade 52100
Bearing Insert Type Standard Duty
Bolt Size 1/2"
Bolt Spacing 5 1/8"
Bore Dia. 1 1/4"
Bore Shape Straight
Cage Material Polyphenylene Sulfide
Cage Type Land Riding Retainer
Dynamic Load Capacity 5782 lbs.
End Cap Yes
Fixed Vs. Expansion Fixed
Foot Height 14/25"
Grease Fitting Thread Size 1/4"-28
Housing Color Silver
Housing Construction One Piece
Housing Material Stainless Steel
Housing Style Flange Block
Housing Type Flange, Two Bolt
Htc 8483.20.4040
Inner Race Heat Treat Method Zone Hardened
Inner Ring Outside Diameter 1.859"
Insert PN-20
Ip Rating IP69K
Length Through Bore 1.688"
Lubrication Type Calcium Sulfonate Nlgi 2 Nsf H1 Food Grade Grease
Max. Operating Temperature 220°F
Max. Speed 2000 RPM
Misalignment Capability -2° to +2°
Misalignment Type Static Only
Options Corrosion Resistant
Outer Ring Land Profile Standard
Overall Height 1 3/4"
Overall Length 6.13"
Overall Width 3 3/4"
Pilot Configuration No Pilot
Radial Clearance Standard
Rolling Element Ball Bearing
Seal Type Multi-Lip Contact Seal
Setscrew Torque 75 lbs.-in. to 100 lbs.-in.
Shaft Locking Type Set Screw
Size Code 2-17
Static Load Rating 3493 lbs.
Vibration Frequency Fundamental Train 0.0066 cPS
Vibration Frequency Inner Ring Defect 0.0905 cPS
Vibration Frequency Outer Ring Defect 0.0595 cPS
Vibration Frequency Roller Spin 0.0386 cPS

Product Details

Shipping Information

Height 5.08
Length 12.7
Width 12.7
Country Of Origin US
Weight 1.584000
