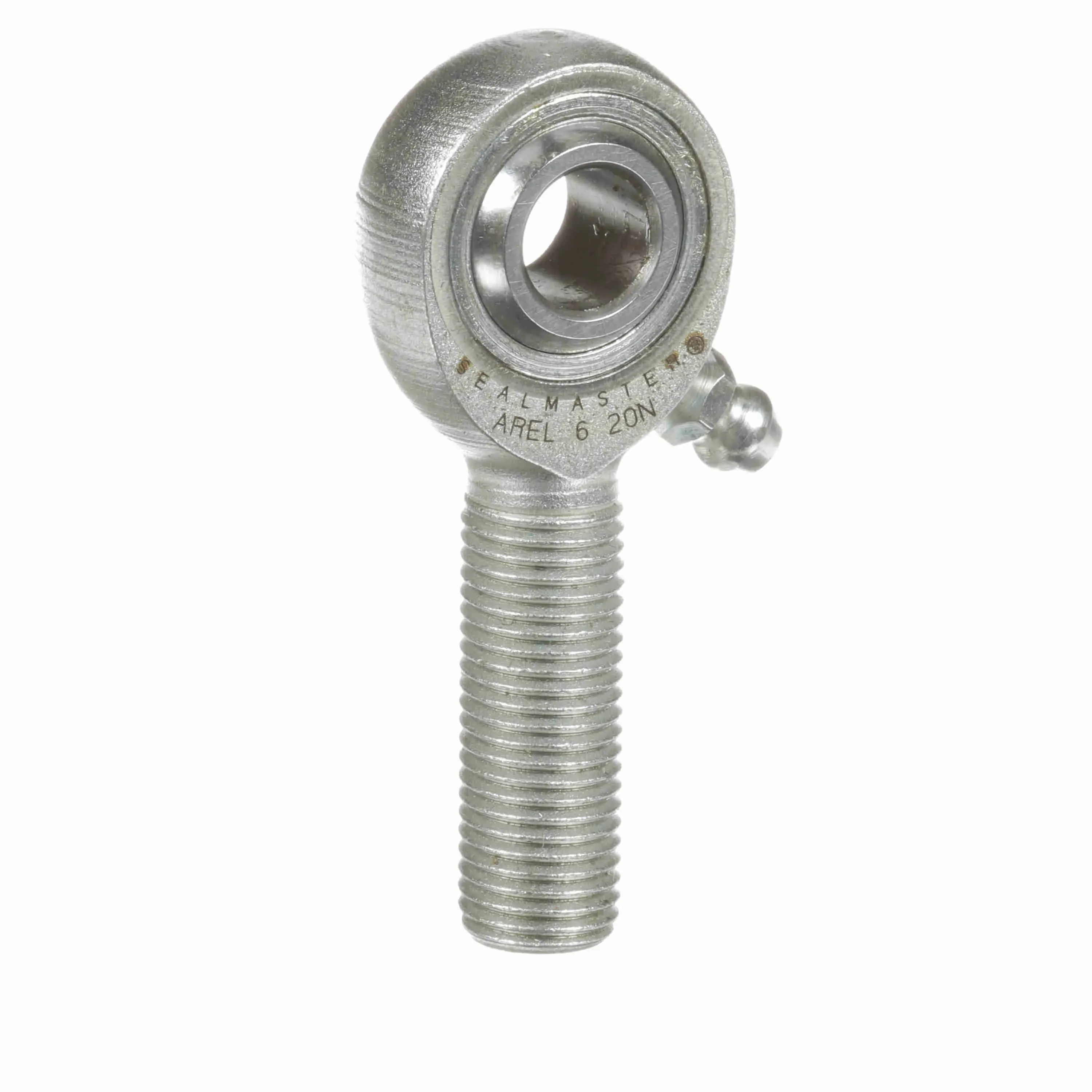

SEALMASTER AREL 6N 1540601000 Rod End Bearing, 3/8 Inch Bore, 13/32 Inch Housing Width, Male, Left Hand
Item: BD8YNC
Model: AREL 6N
In Stock
Get it by Thursday, Apr 16
£59.92/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Ability To Relubricate | Yes |
|---|---|
| Axial Load | 958 |
| Ball Diameter | 0.718" |
| Ball Finish | Chrome Plated |
| Ball Flat Diameter | 0.517" |
| Ball Material | Alloy Steel |
| Ball Width | 1/2" |
| Bearing Insert Type | Rod End |
| Bore Dia. | 3/8" |
| Class | Precision |
| Configuration | Male |
| Construction | Three Piece Rod End With Zerk Fitting |
| Head Dia. | 1" |
| Housing Style | Male Rod End |
| Housing Width | 0.406" |
| Htc | 8483.30.8055 |
| Length To Center Of Ball | 1.94" |
| Lubrication | Zerk Fitting |
| Lubrication Method | Fitting |
| Lubrication Type | Grease |
|---|---|
| Max Static Radial Load | 9580 |
| Max. Ambient Temp. | 350°F |
| Misalignment Angle | -6° to +6° |
| Outer Material | Alloy Steel |
| Outer Material Grade | 4130 |
| Outer Material Property | Heat Treated Corrosion Resistant Plating |
| Product Selection Available Sw | Yes |
| Product Type | Are |
| Race Material | Carbon Steel |
| Race Material Property | Corrosion Resistant Plating |
| Series | PRECISION EXTRA CAPACITY Series |
| Thread Direction | Left Hand |
| Thread Length | 1.219" |
| Thread Size | 3/8"-24 |
| Thread Type | UNF |
| Type | Male Rod End |
| Zerk Fitting Sw | Yes |
Product Details
Rod End Bearing
Shipping Information
| height | 10.92 |
|---|---|
| length | 5.59 |
| width | 1.9 |
| country of origin | MX |
|---|---|
| weight | 0.049500 |
