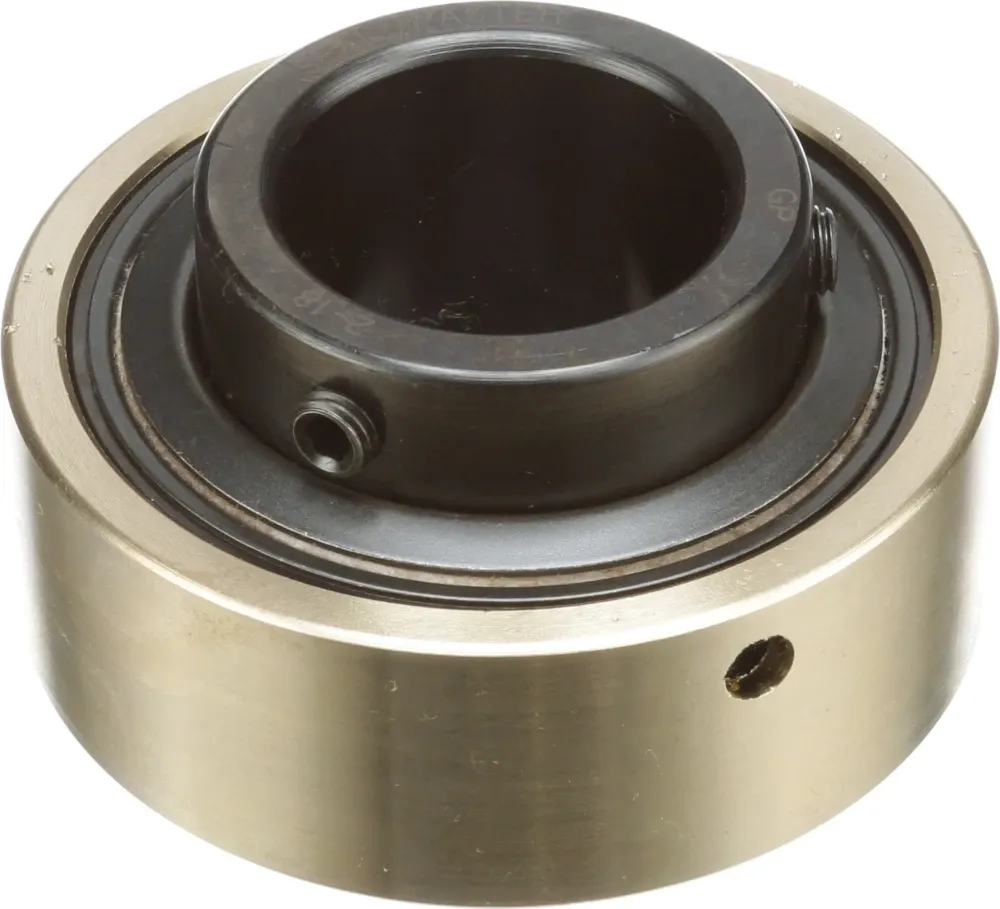

SEALMASTER AR-311 Insert Bearing, 55mm Dia, Setscrew Locking, Cast Steel/Black Oxide, Standard Felt Seal
Item: BD9UMG
Model: AR-311
27 In Stock
Ships within 2 days via
£842.68/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Duty Series | Medium |
|---|---|
| Dynamic Load Capacity | 11789 lbs. |
| Finish | Black Oxide |
| Grade | Grade 52100 |
| Grease Type | Lithium Complex, Ep, Nlgi#2 |
| Housing Type | Insert Only |
| Inner Race Length | 2 9/16" |
| Inner-race Heat-treat Method | Zone Hardened |
| Insert Material | Steel |
| Locking Device | Single Set Screw |
| Max. Operating Temperature | 250°F |
|---|---|
| Outer Race Outside Dia. | 4.718" |
| Outer Race Width | 1 21/64" |
| Retainer Type | Brass |
| Rolling Element | Ball |
| Seal Flinger | Yes |
| Seal Type | Felt |
| Shaft Size | 55 mm |
| no. links/ ft. | 0 |
Product Details
Insert Bearing
Shipping Information
| height | 12.22 |
|---|---|
| length | 12.06 |
| width | 6.68 |
|---|---|
| weight | 2.610000 |
Related Products
| Style | Model | Bore Dia. | Seal Type | Dynamic Load Capacity | Dynamic Radial Load Capacity | Max. Speed | Cage Material | Locking Type | Overall Width | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | AR-2-13 | 1 3/16" | - | - | 4381 lbs. | 5450 RPM | - | Set Screw | 1 1/2" | 249.44 | |
| B | AR-2-22 | - | - | - | - | - | - | - | - | 545.05 | |
| C | AR-2-1TC | 1" | - | - | 2801 lbs. | 6350 RPM | Polyphenylene Sulfide | Concentric | 1.438" | 211.07 | |
| D | AR-3-3 | - | Felt | 17412 lbs. | - | - | - | - | - | 5,462.77 | |
| E | AR-2-1C | 1" | - | - | 2801 lbs. | 6350 RPM | Polyphenylene Sulfide | Set Screw | 1 3/8" | 207.13 | |
| F | AR-2-23T | 2 3/16" | - | - | 9752 lbs. | 4500 RPM | Polyphenylene Sulfide | Concentric | 2 1/4" | 465.24 | |
| G | AR-3-111T | - | Felt | 7889 lbs. | - | - | - | - | - | 397.61 |
