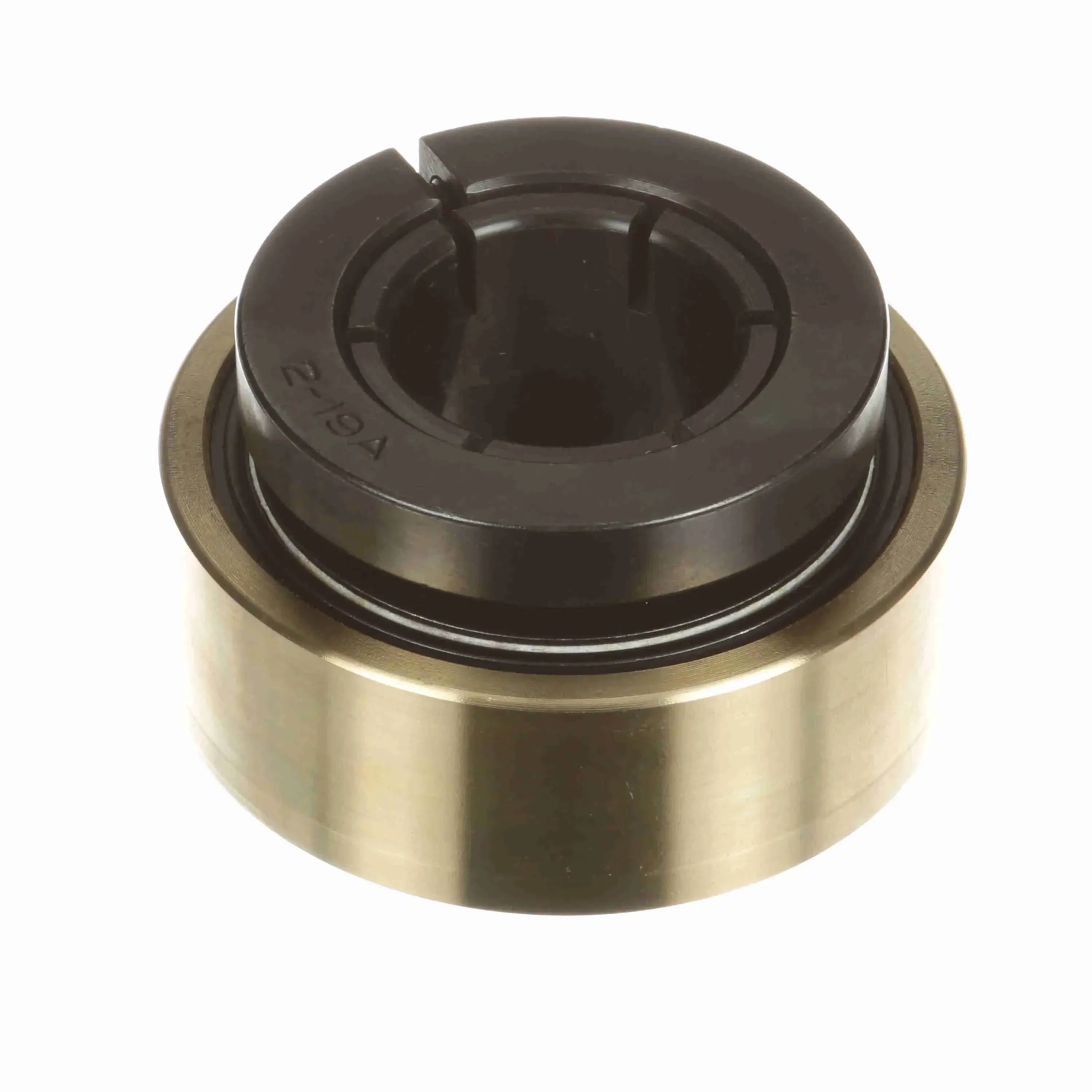

SEALMASTER AR-3-17T 705606 Insert Bearing, 1.43 Inch Bore, 2 Inch Length Thru Bore, 1-11/64 Inch Outer Race Width
Item: BD7UPQ
Model: AR-3-17T
In Stock
Get it by Friday, Apr 17
£389.15/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Ability To Relubricate | Yes |
|---|---|
| Bearing Insert Finish | Black Oxide |
| Bore Dia. | 1 7/16" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Centerline To Front Face | 1 1/4" |
| Collar Outer Diameter | 2.688" |
| Duty/series | Standard Series |
| Dynamic Radial Load Capacity | 7340 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | No |
| Housing Type | Insert Only |
| Htc | 8482.10.5052 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Race Length | 2" |
| Inner Race Profile | Wide Inner Ring |
| Inner Ring Outside Diameter | 2.688" |
| Insert Material | Steel |
| Insert Material Finish | Black Oxide |
| Insert Material Grade | 52100 |
| Internal Clearance | Standard |
| Locking Type | Concentric |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
|---|---|
| Max. Operating Temperature | 220°F |
| Max. Speed | 5850 RPM |
| Measure Units | Inch |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Outer Race Od | 3 3/8" |
| Outer Race Profile | Cylindrical |
| Outer Race Width | 1.172" |
| Outer Ring Land Profile | Standard |
| Overall Width | 2" |
| Platform | Gold Line Ball Bearing |
| Precision Rating | Abec 1 |
| Radial Static Load Capacity | 4467 lbs. |
| Radius | 0.062" |
| Retainer Type | Land Riding Retainer |
| Rolling Element | Ball Bearing |
| Series | AR-T Series |
| Torx Cap Screw Length | 3/4" |
| Torx Cap Screw Size | #10-24 |
| Type Of Seal | Felt Labyrinth Seal |
Product Details
Shipping Information
| Height | 5.08 |
|---|---|
| Length | 9.22 |
| Width | 9.22 |
| Country Of Origin | MX |
|---|---|
| Weight | 1.147500 |
Related Products
| Style | Model | Bore Dia. | Seal Type | Dynamic Load Capacity | Dynamic Radial Load Capacity | Max. Speed | Cage Material | Locking Type | Overall Width | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | AR-2-13 | 1 3/16" | - | - | 4381 lbs. | 5450 RPM | - | Set Screw | 1 1/2" | 249.44 | |
| B | AR-2-22 | - | - | - | - | - | - | - | - | 545.05 | |
| C | AR-2-1TC | 1" | - | - | 2801 lbs. | 6350 RPM | Polyphenylene Sulfide | Concentric | 1.438" | 211.07 | |
| D | AR-3-3 | - | Felt | 17412 lbs. | - | - | - | - | - | 5,462.77 | |
| E | AR-2-1C | 1" | - | - | 2801 lbs. | 6350 RPM | Polyphenylene Sulfide | Set Screw | 1 3/8" | 207.13 | |
| F | AR-2-23T | 2 3/16" | - | - | 9752 lbs. | 4500 RPM | Polyphenylene Sulfide | Concentric | 2 1/4" | 465.24 | |
| G | AR-3-111T | - | Felt | 7889 lbs. | - | - | - | - | - | 397.61 |
