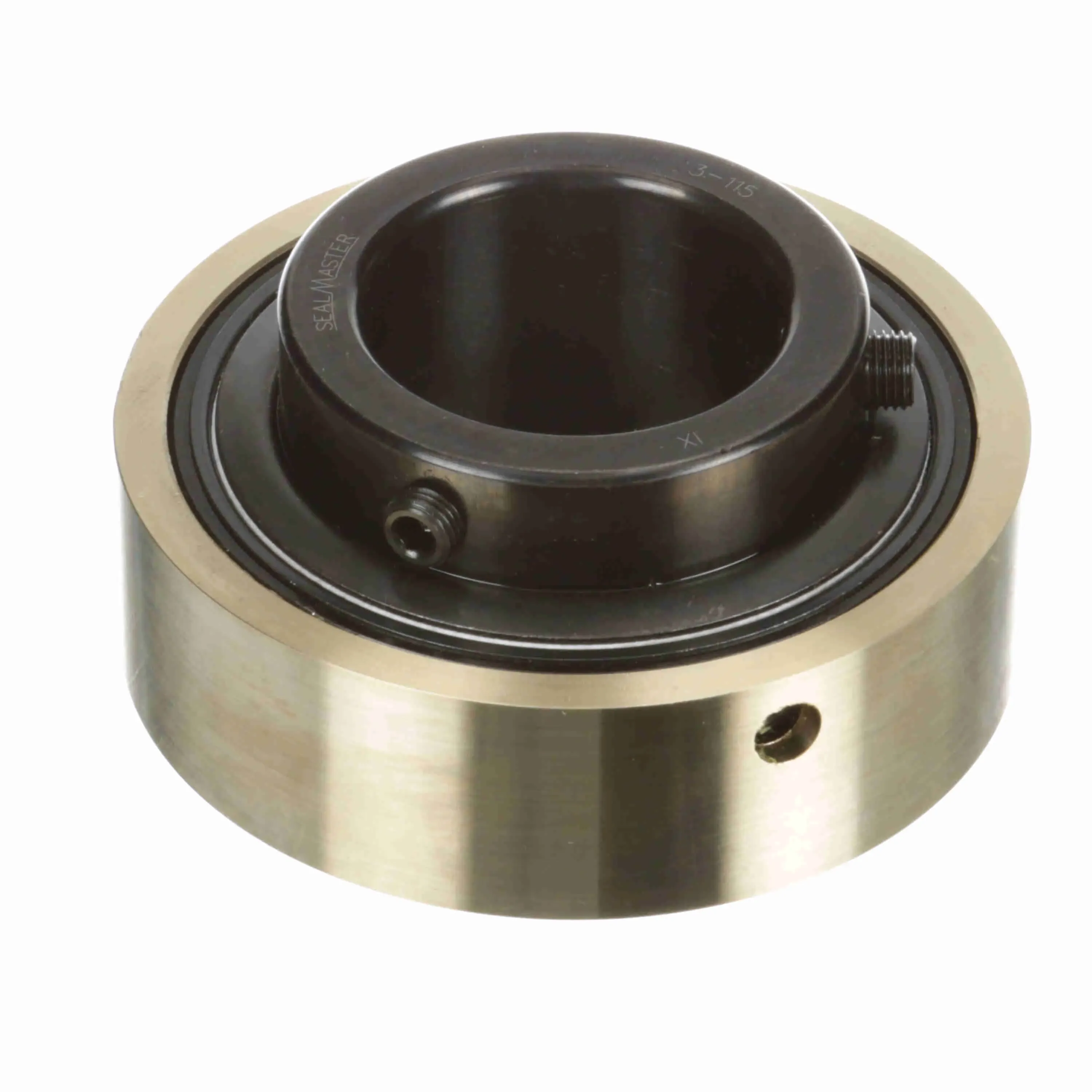

SEALMASTER AR-3-115 701206 Insert Bearing, 1.93 Inch Bore, 2.18 Inch Length Thru Bore, 1-17/64 Inch Outer Race Width
Item: BD9DYT
Model: AR-3-115
In Stock
Get it by Wednesday, Apr 15
We deliver to your doorstep under DAP terms. Customs clearance is for your account
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Ability To Relubricate | Yes |
|---|---|
| Bearing Insert Finish | Black Oxide |
| Bore Dia. | 1 15/16" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Centerline To Front Face | 1.313" |
| Duty/series | Medium Series |
| Dynamic Radial Load Capacity | 9752 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | No |
| Housing Type | Insert Only |
| Htc | 8482.10.5052 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Race Length | 2.188" |
| Inner Race Profile | Wide Inner Ring |
| Inner Ring Outside Diameter | 2.719" |
| Insert Material | Steel |
| Insert Material Finish | Black Oxide |
| Insert Material Grade | 52100 |
| Internal Clearance | Standard |
| Locking Type | Set Screw |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
|---|---|
| Max. Operating Temperature | 220°F |
| Max. Speed | 3250 RPM |
| Measure Units | Inch |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Outer Race Od | 4 1/4" |
| Outer Race Profile | Cylindrical |
| Outer Race Width | 1.266" |
| Outer Ring Land Profile | Standard |
| Overall Width | 2.188" |
| Platform | Gold Line Ball Bearing |
| Precision Rating | Abec 1 |
| Radial Static Load Capacity | 6601 lbs. |
| Radius | 2/25" |
| Retainer Type | Land Riding Retainer |
| Rolling Element | Ball Bearing |
| Series | AR |
| Set Screw Thread Size | 3/8"-24 |
| Type Of Seal | Felt Labyrinth Seal |
Product Details
Insert Bearing
Shipping Information
| height | 5.72 |
|---|---|
| length | 10.8 |
| width | 10.8 |
| country of origin | MX |
|---|---|
| weight | 1.800000 |
