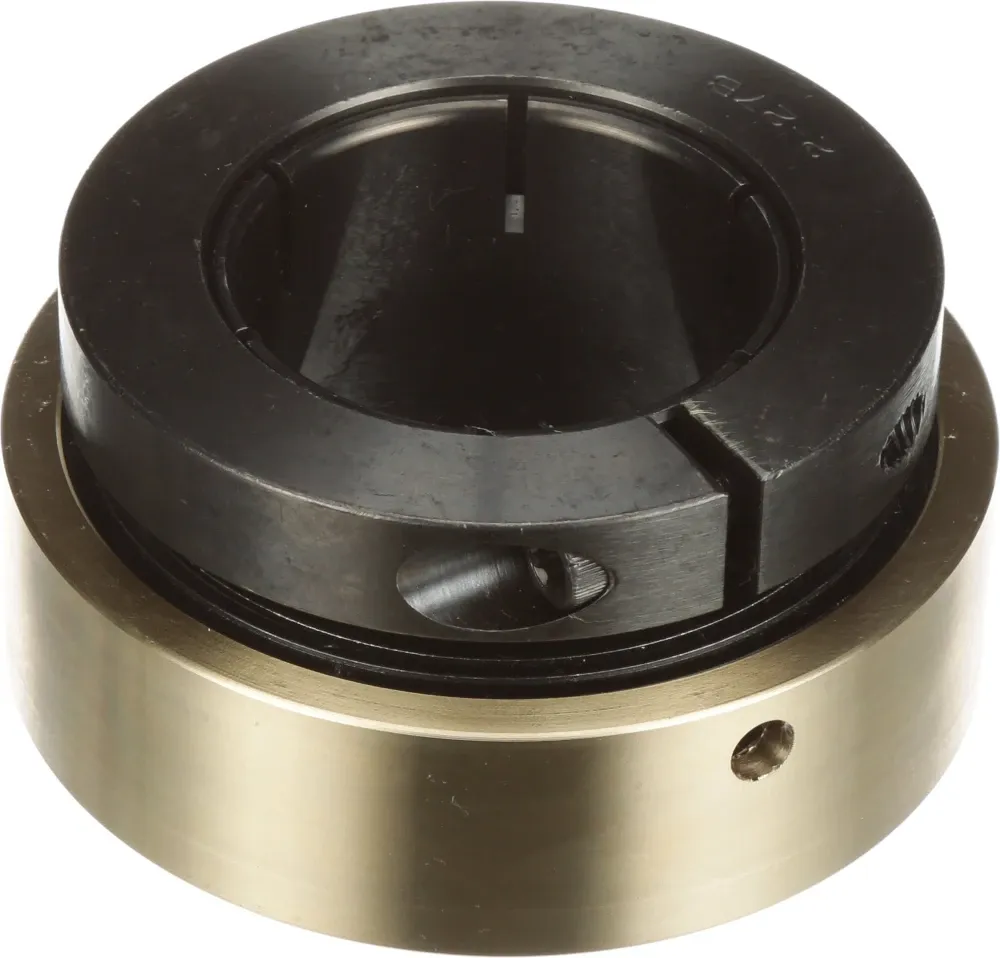

SEALMASTER AR-3-112T Insert Bearing, 1.75 Inch Bore, 2-3/32 Inch Length Thru Bore, 1.206 Inch Outer Race Width
Item: BD9NCN
Model: AR-3-112T
In Stock
Get it by Wednesday, Apr 15
£454.16/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Bearing Type | Insert |
|---|---|
| Bore Type | Round |
| Cage Material | Brass |
| Collar Dia. | 3.25" |
| Duty Type | Standard Duty |
| Dynamic Radial Load Capacity | 7889 lbs. |
| Expansion Type | Non-Expansion Bearing (Fixed) |
| Family Series | Sealmaster Bearings, AR Series |
| Fillet Radius | 0.062" |
| Housing Type | Insert Only |
| Insert Material | 52100 Bearing Steel, Black Oxided |
| Locking Device | Skwezloc |
|---|---|
| Misalignment Angle | -2° to +2° |
| Misalignment Type | Static Only |
| Operating Temp. Range | -20°F to +220°F |
| Outer Ring Width | 1.203" |
| Outside Dia. | 3.875" |
| Relubricatable | Yes |
| Retainer Type | Land Riding Retainer |
| Seal Type | Standard Felt Seal |
| Series | AR Series |
| Static Radial Load Capacity | 5216 lbs. |
Product Details
Insert Bearing
Shipping Information
| height | 2.54 |
|---|---|
| length | 2.54 |
| width | 5.32 |
|---|---|
| weight | 1.845000 |
Related Products
| Style | Model | Bore Dia. | Seal Type | Dynamic Load Capacity | Dynamic Radial Load Capacity | Max. Speed | Cage Material | Locking Type | Overall Width | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | AR-2-13 | 1 3/16" | - | - | 4381 lbs. | 5450 RPM | - | Set Screw | 1 1/2" | 249.44 | |
| B | AR-2-22 | - | - | - | - | - | - | - | - | 545.05 | |
| C | AR-2-1TC | 1" | - | - | 2801 lbs. | 6350 RPM | Polyphenylene Sulfide | Concentric | 1.438" | 211.07 | |
| D | AR-3-3 | - | Felt | 17412 lbs. | - | - | - | - | - | 5,462.77 | |
| E | AR-2-1C | 1" | - | - | 2801 lbs. | 6350 RPM | Polyphenylene Sulfide | Set Screw | 1 3/8" | 207.13 | |
| F | AR-2-23T | 2 3/16" | - | - | 9752 lbs. | 4500 RPM | Polyphenylene Sulfide | Concentric | 2 1/4" | 465.24 | |
| G | AR-3-111T | - | Felt | 7889 lbs. | - | - | - | - | - | 397.61 |
