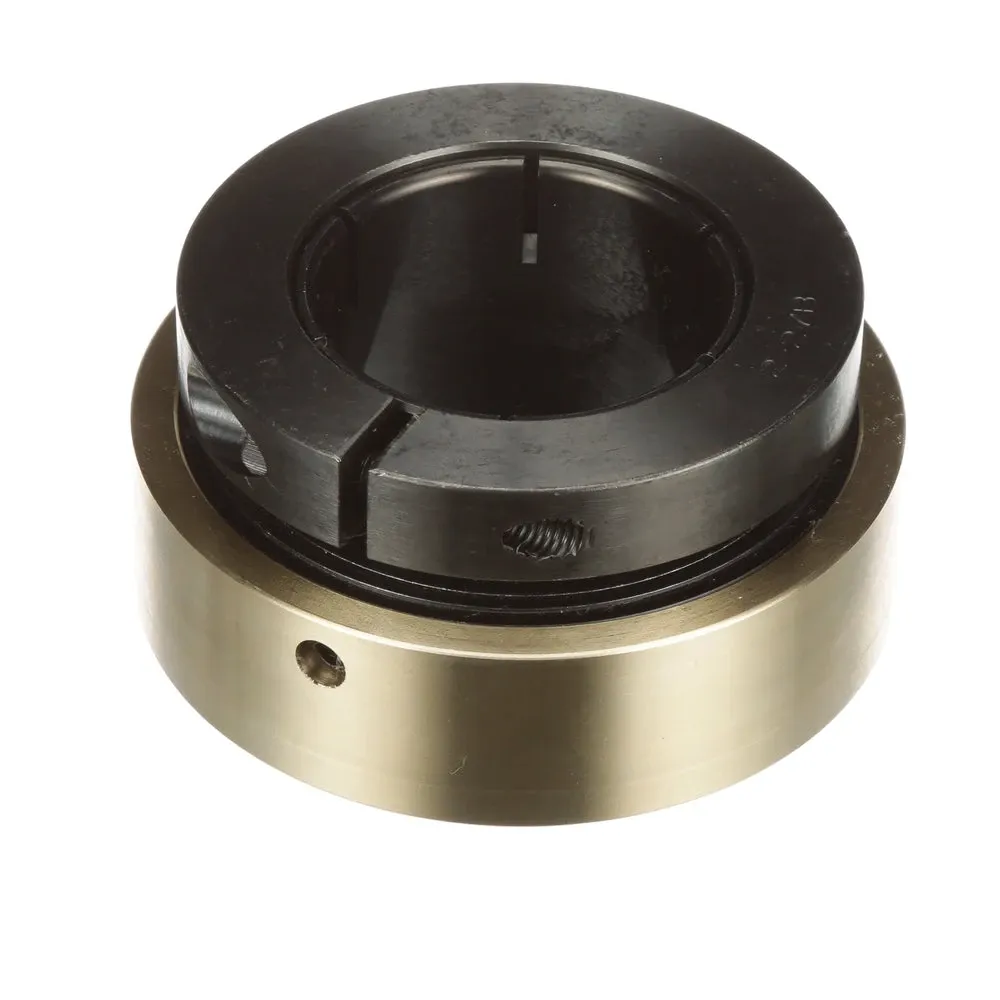

SEALMASTER AR-2-16T Insert Bearing, 1.375 Inch Bore, 1.75 Inch Length Thru Bore, 1-1/64 Inch Outer Race Width
Item: BE3XQN
Model: AR-2-16T
In Stock
Get it by Wednesday, Apr 15
£404.68/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Angle Of Misalignment | +/-2° |
|---|---|
| Bearing Design | Expansion |
| Bearing Insert Coating | Black Oxide |
| Bearing Material | Black Oxided Bearing Steel |
| Bearing Type | Ball Bearing |
| Bore Shape | Straight |
| Bore Type | Round Bore |
| Cage Material | Brass |
| Centerline To Front Face | 1.063" |
| Dynamic Radial Load Capacity | 5782 lbs. |
| Enclosure | Double Sealed |
| Expansion | No |
| Expansion Type | Non-Expansion Bearing (Fixed) |
| Family Series | Sealmaster Bearings, AR Series |
| Fillet Radius | 0.04" |
| Housing Type | Insert Only |
| Inner Race Heat Treat Method | Zone Hardened |
| Insert Material | 52100 Bearing Steel, Black Oxided |
|---|---|
| Locking Device | Skwezloc Collar |
| Locking Type | Concentric |
| Max. Operating Temp. | 220°F |
| Misalignment Angle | -2° to +2° |
| Misalignment Type | Static Only |
| Operating Temp. Range | -20°F to +220°F |
| Overall Width | 1 3/4" |
| Radius | 0.04 |
| Relubricatable | Yes |
| Retainer Type | Land Riding |
| Seal Type | Felt Labyrinth |
| Series | AR-T Series |
| Speed Max | 6500 RPM |
| Static Load Capacity | 3493 lbf. |
| Static Radial Load Capacity | 3493 lbs. |
| Torx Cap Screw | 10"-24 x 3/4" |
Product Details
Insert Bearing
Shipping Information
| height | 2.54 |
|---|---|
| length | 2.54 |
| width | 4.44 |
|---|---|
| weight | 1.080000 |
