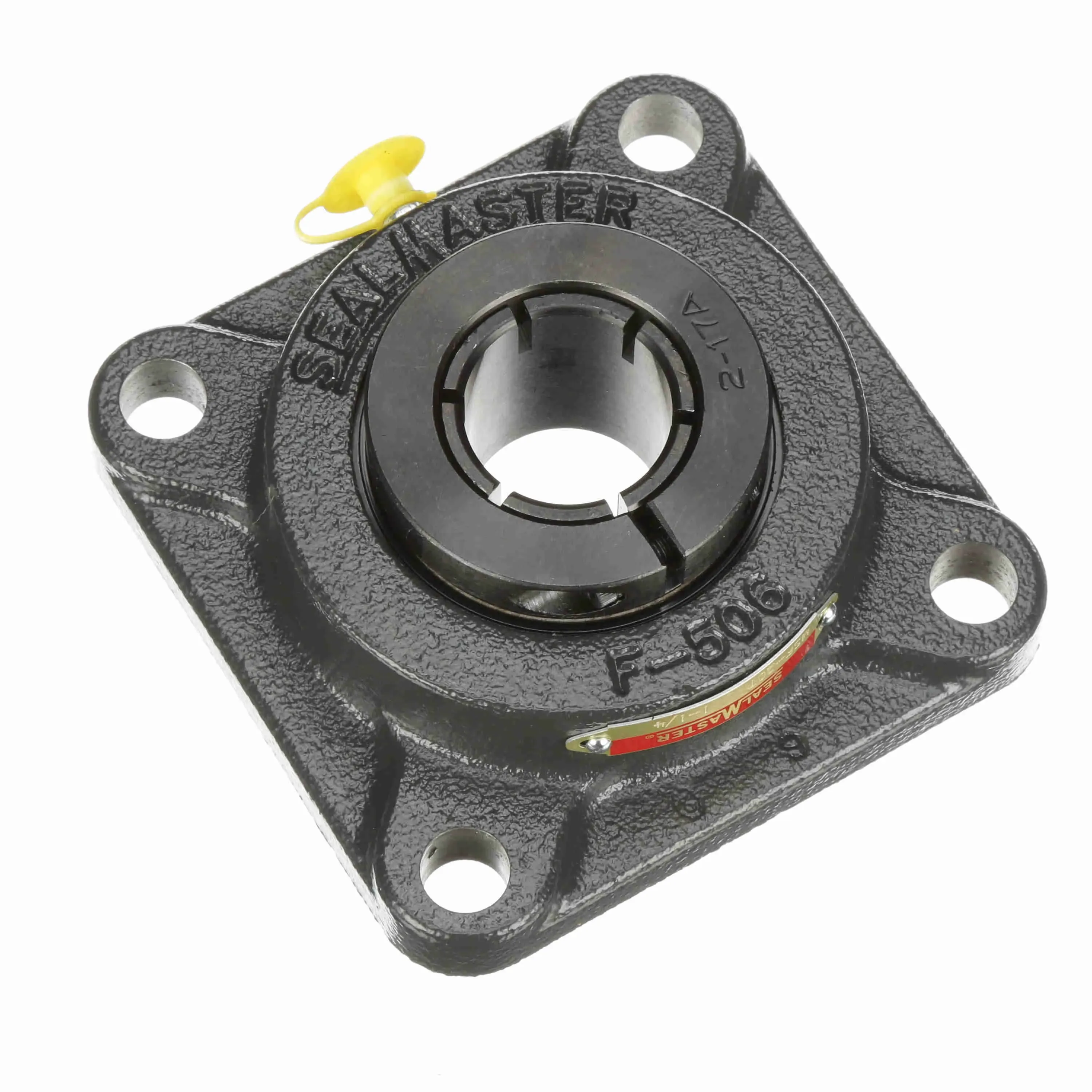

SEALMASTER 705680
Item: BE4UUZ
Model: 705680
In Stock
Get it by ,
We deliver to your doorstep under DAP terms. Customs clearance is for your account
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Bearing Insert Finish | Black Oxide |
|---|---|
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Medium Duty |
| Bearing Type | Medium Duty |
| Bolt Size | 1/2" |
| Bolt Spacing | 3 5/8" |
| Bore Dia. | 1 1/4" |
| Bore Shape | Straight |
| Cage Type | Land Riding Retainer |
| duty/series | Standard |
| Dynamic Load Capacity | 5782 lbs. |
| End Cap | No |
| Finish | Black Oxide |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 14/25" |
| Grade | Grade 52100 |
| Grease Fitting Thread Size | 1/4"-28 |
| Grease Type | GoldPlex-HP |
| Height | 5" |
| housing backside inside dia. | 3.31" |
| Housing Base | Solid |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Flange Block |
| Htc | 8483.20.4040 |
|---|---|
| Inner Race Heat Treat Method | Zone Hardened |
| inner ring outside dia. | 1.86" |
| Insert | 2-14T |
| Insert Material | Steel |
| Length | 5" |
| Length Through Bore | 1 3/4" |
| locking collar outside dia. | 2 1/2" |
| Locking Device | Skwezloc Concentric |
| Lubricant | Lithium Complex NLGI 2 Grease |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Speed | 7600 RPM |
| Misalignment Type | Static Only |
| no. links/ ft. | 0 |
| Outer Ring Land Profile | Standard |
| Overall Height | 1.81" |
| Overall Length | 4.63" |
| Overall Width | 4.63" |
| Pilot Configuration | No Pilot |
| Product Line | Sealmaster Gold Standard |
| Radial Clearance | Standard |
| Retainer Type | Metal Land Riding |
| Shaft Locking Type | Concentric |
| Shaft Size | 1 1/4" |
| Static Load Rating | 3493 lbs. |
| Width | 2" |
Product Details
Yes
Shipping Information
| height | 12.7 |
|---|---|
| length | 12.7 |
| width | 5.08 |
|---|---|
| weight | 1.845000 |
