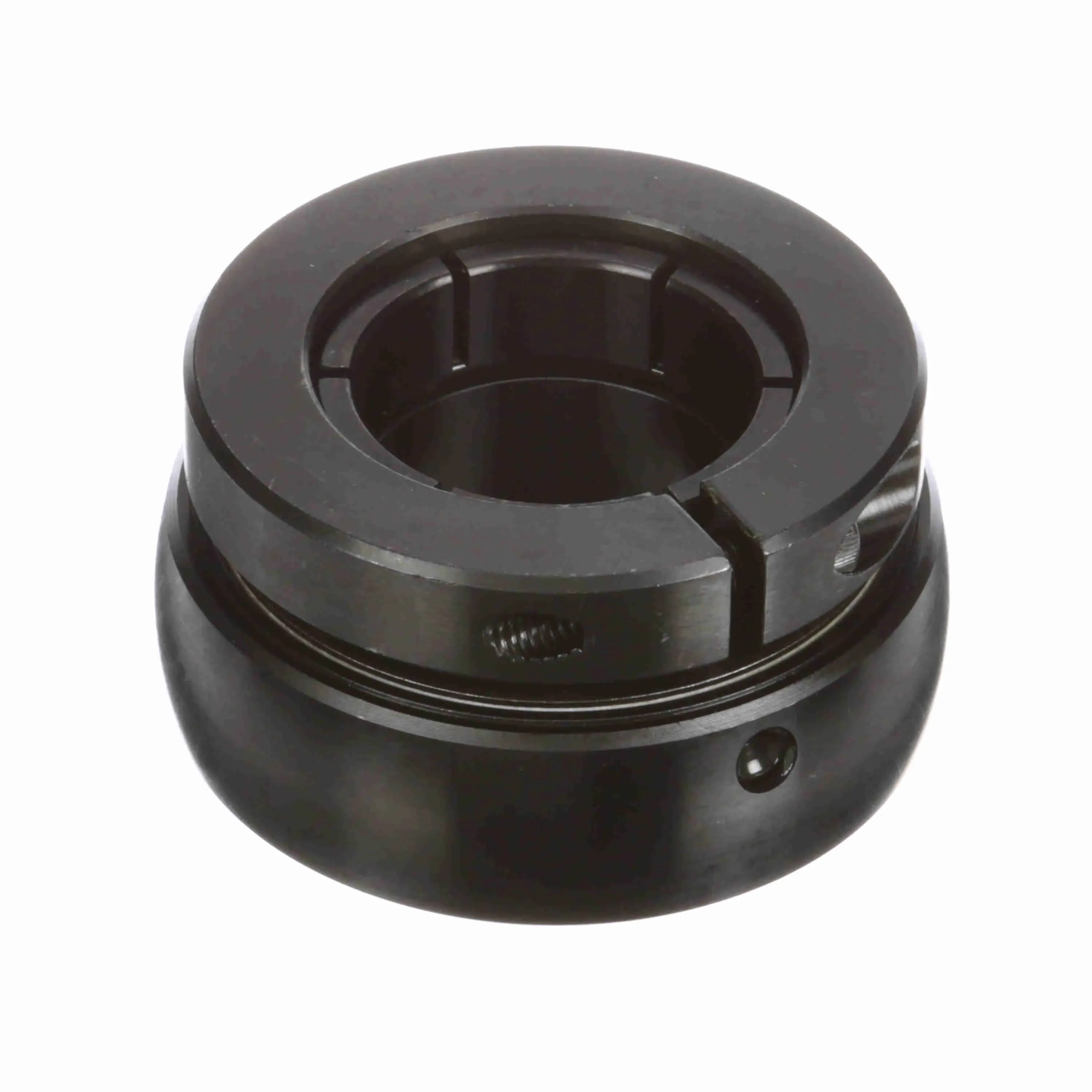

SEALMASTER 3-115T 705334 Mounted Insert Only Ball Bearing
Item: BD7FTH
Model: 3-115T
In Stock
Get it by Wednesday, Apr 15
We deliver to your doorstep under DAP terms. Customs clearance is for your account
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Angle Of Misalignment | +/-2° |
|---|---|
| Bearing Design | Non Expansion |
| Bearing Insert Coating | Black Oxide |
| Bearing Insert Finish | Black Oxide |
| Bearing Material | Black Oxided Bearing Steel |
| Bearing Type | Ball Bearing |
| Bore Dia. | 1 15/16" |
| Bore Shape | Straight |
| Bore Type | Round Bore |
| Cage Material | Polyphenylene Sulfide |
| Cage Material | Brass |
| Centerline To Front Face | 1.313" |
| collar outside dia. | 3 1/2" |
| Duty/series | Medium |
| Dynamic Radial Load Capacity | 9752 lbs. |
| Enclosure | Double Sealed |
| End Cap | No |
| Expansion | No |
| Expansion Type | Non-Expansion Bearing (Fixed) |
| Family Series | Sealmaster Bearings |
| Fillet Radius | 0.08" |
| Fixed Vs. Expansion | No |
| Housing Type | Insert Only |
| Htc | 8482.10.5052 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Race Length | 2 1/4" |
| Inner Race Profile | Wide Inner Ring |
| inner ring outside dia. | 3 1/2" |
| Insert Material | 52100 Bearing Steel, Black Oxided |
| Insert Material | Steel |
| Insert Material Finish | Black Oxide |
| Insert Material Grade | 52100 |
| Internal Clearance | Standard |
|---|---|
| Locking Device | Skwezloc Collar |
| Locking Type | Concentric |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| max. operating temp. | 220°F |
| Max. Speed | 4500 RPM |
| measure unit | Inch |
| Misalignment Angle | -2° to +2° |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Operating Temp. Range | -20°F to +220°F |
| outer race outside dia. | 3.937" |
| Outer Race Profile | Spherical |
| Outer Race Width | 1.188" |
| Outer Ring Land Profile | Standard |
| Outside Dia. | 100 mm |
| Overall Width | 2 1/4" |
| Platform | Gold Line Ball Bearing |
| Precision Rating | ABEC 1 |
| Radius | 0.08 |
| Radius | 2/25" |
| Relubricatable | Yes |
| Retainer Type | Land Riding Retainer |
| Retainer Type | Land Riding |
| Rolling Element | Ball Bearing |
| Seal Type | Felt Labyrinth |
| Static Load Capacity | 6601 lbf. |
| static radial load capacity | 6601 lbs. |
| Torx Cap Screw | 1/4"-20 x 1" |
| Torx Cap Screw Length | 1" |
| Torx Cap Screw Size | 1/4"-20 |
| Type Of Seal | Felt Labyrinth Seal |
Product Details
Yes
Shipping Information
| height | 5.72 |
|---|---|
| length | 10.8 |
| width | 10.8 |
| country of origin | MX |
|---|---|
| weight | 1.660500 |
