  • SEALMASTER 2-214D Ball Insert Bearing, Cylindrical Bore, 2-7/8 Inch Inside Dia.

SEALMASTER

See our 858 reviews on trustpilot

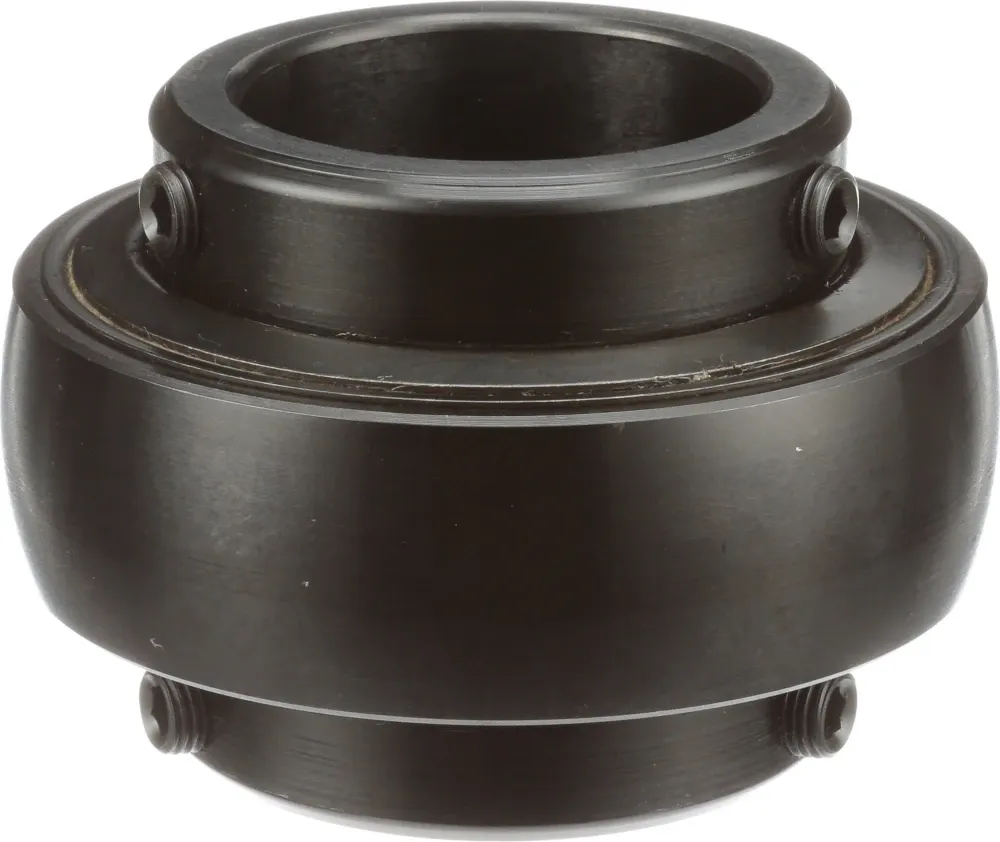

SEALMASTER 2-214D Ball Insert Bearing, Cylindrical Bore, 2-7/8 Inch Inside Dia.

Item: BE2PPW
Model: 2-214D
25 In Stock

Ships within 2 days via

£841.66/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Specifications

Bore Type Cylindrical
Duty Type Standard Duty
duty/series Standard
Dynamic Load Capacity 13971 lbs.
Expansion Type Non-Expansion Bearing (Fixed)
Finish Black Oxide
Grade Grade 52100
Grease Type Lithium Complex, EP, NLGI#2
Housing Type Insert Only
inner race heat treat method Zone Hardened
Inner Race Length 3 1/16"
Inner Race Length 3.0625
Inner Ring Width 3.0625"
Insert Material Steel
Insert Material 52100 Black Oxide
Locking Device Double Setscrew Collar
Locking Device Double Set Screw
max. operating temp. 250°F
no. links/ ft. 0
No. Links/ft. 0
Operating Temp. Range -20°F to +220°F
Outer Race Outside Dia. 5.1181"
Outer Race Width 1 1/2"
Overall Width 3 1/16"
Retainer Type Brass
Rolling Element Ball
Seal Flinger Yes
Seal Type Felt
Series ER Series
Shaft Size 2 7/8"

Product Details

Shipping Information

Height 8.89
Length 13.97
Width 7.78
Weight 3.060000
