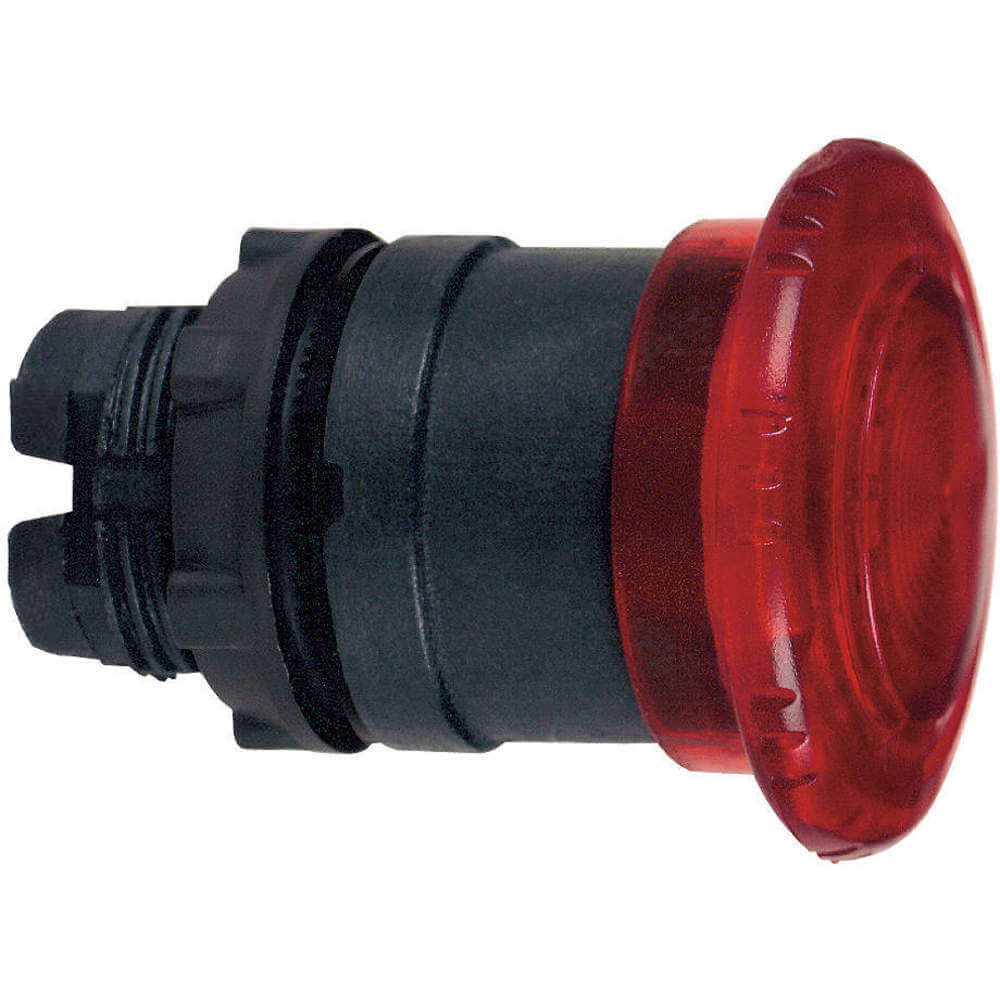

SCHNEIDER ELECTRIC ZB5AW743 Illuminated Push Button Operator 22mm Red

Item: AF7ZHQ
Model: ZB5AW743
21 In Stock

Ships within 2 days via

£130.76
5.00% off
£124.22/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Action Maintained
Basic Material Plastic
Bezel Material Plastic
Cad Overall Depth 50 mm
Cad Overall Height 40 mm
Cad Overall Width 40 mm
Cap/operator Or Lens Colour Red
Color Red
Features Withstands Harsh Environments
Head Material Plastic
Head/lens Color Red
Ip Rating IP66
Lamp Bulb Type No Lamp Module Included
Lamp Module Type No Lamp Module Included
Lamp Module Voltage Module Not Included
Lamp Type LED
Lamp Voltage Dependent On Module Used
Legend No Legend
Maintained Action Release Twist
Manufacturer Warranty Length 18 Months
Mounting Diameter 22 mm
Mushroom Head Diameter 40 mm
Nema Enclosure Rating NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13
Nema Rating NEMA 13, NEMA 4X
Number Of Indicator Lights 1
Number Of Operators 1
Operating Temperature - Maximum 158°F
Operating Temperature - Minimum -40°F
Operator Illumination Illuminated
Operator Material Plastic
Overall Depth 1.97"
Overall Height 1.57"
Overall Width 1.57"
Panel Mounting Hole Diameter 22 mm
Product Type Emergency Stop Push Buttons
Push Button Style Mushroom Head
Resistance Properties Dust Resistant, Impact Resistant, Vibration Resistant, Watertight
Series XB5 Series
Shape Of Signaling Unit Head Round
standard BUREAU VERITAS, CLASS II IEC 60536, CSA C22.2 NO.14, DNV, EN 50102, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, GB 14048.5, GL, IEC 60068-2-27, IEC 60068-2-6, IEC 60529, JIS C8201-1, JIS C8201-5-1, LROS, REACH FREE OF SVHC, ROHS, UL 508

Product Details

Illuminated Push Button

Shipping Information

height 8.89
length 5.59
width 4.57
hs code 8536509031
country of origin FR
weight 0.004500
