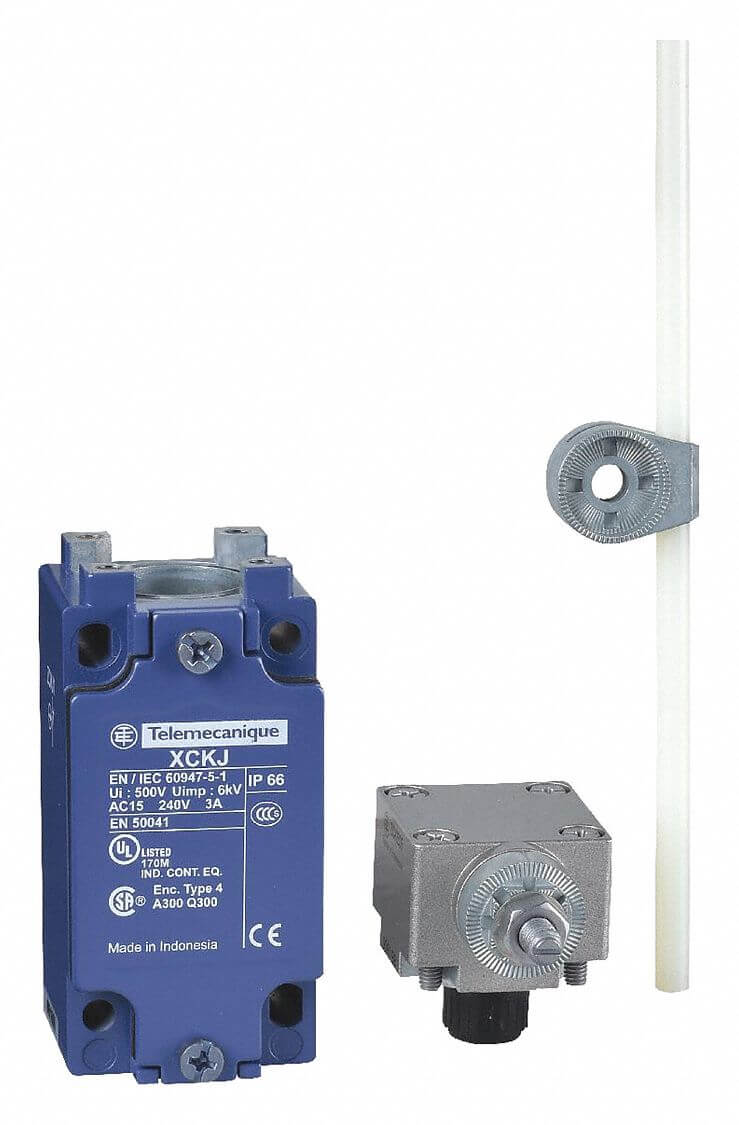

SCHNEIDER ELECTRIC XCKJ10559H7 Heavy Duty Limit Switch Side Actuator 1no/1nc
Item: AF7JNX
Model: XCKJ10559H7
9 In Stock
Ships within 2 days via
5.00% off
£234.56/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Specifications
| Ac Contact Rating | 10A @ 240V |
|---|---|
| Actuator Length | 8.35" |
| Actuator Location | Side |
| Actuator Style | Rod |
| Actuator Type | Lever Rod |
| Arm Material | Thermoplastic |
| Arm Width | 0.24" |
| Body Depth | 1.89" |
| Body Height | 4.01" |
| Body Material | Zamak |
| Body Width | 1.57" |
| Boot Sealed Actuator | No Boot Included |
| Contact Form | 1NO/1NC |
| Dc Contact Rating | 10A @ 240V |
| Depth | 1.73" |
| Directional Movement | CCW/CW |
| Electrical Connection | Screw Clamp Terminals |
| Height | 3.94" |
| Ip Rating | IP66 |
| Manufacturer Warranty Length | 18 Months |
| Mounting Hole Diameter | 0.21" |
| Mounting Hole Horizontal Center To Center Distance | 30 mm |
|---|---|
| Mounting Hole Vertical Center To Center Distance | 60 mm |
| Mounting Style | Surface |
| Movement | CCW/CW |
| Nema Enclosure Rating | Nema 1, Nema 2, Nema 4, Nema 12, Nema 13 |
| Nema Rating | NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 4 |
| Number Of Mounting Holes | 4 |
| Operating Temp. Range | -13°F to +158°F |
| Operating Temperature - Maximum | 158°F |
| Operating Temperature - Minimum | -13°F |
| Operating Torque - Maximum | 2.21 lbs.-in. |
| Overall Depth | 1.73" |
| Overall Height | 3.03" |
| Overall Width | 1.57" |
| Resistance Properties | Shock Resistant, Vibration Resistant |
| Series | XCKJ Series |
| Standard Logo | ul.png,csa.png,ce.png |
| Total Travel | 90° |
| Travel Length | 90° |
| Width | 1.57" |
| standard | CCC, CENELEC EN 50041, CSA, CSA C22.2 NO.14, EN 60204-1, EN 60947-5-1, IEC 60204-1, IEC 60947-5-1, UL 508, UL LISTED |
Product Details
Shipping Information
| Height | 13.72 |
|---|---|
| Length | 3 |
| Width | 5.21 |
| HS Code | 8536509055 |
|---|---|
| Country Of Origin | FR |
| Weight | 0.517500 |
