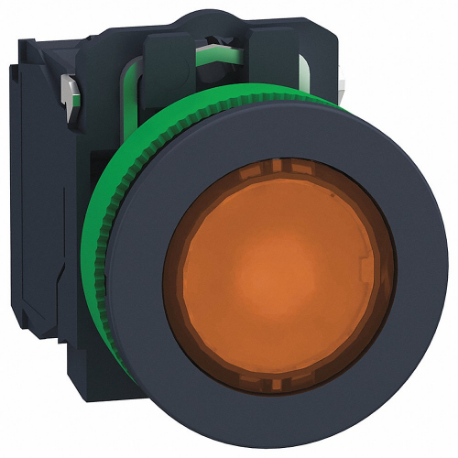

SCHNEIDER ELECTRIC XB5FW35G5 Push Button, Push Button, Momentary, Orange, 110 To 120 V AC, Led, 1No/1Nc

Item: CU2CZG
Model: XB5FW35G5
In Stock

Get it by ,

We deliver to your doorstep under DAP terms. Customs clearance is for your account

£196.33
5.00% off
₹196.330000 (ex. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Ac Contact Rating 1.2A @ 600V, 1.5A @ 480V, 3A @ 240V, 6A @ 120V
Action Momentary
Action Type Momentary
Amps Consumption 14 mA
Basic Material Plastic
Bezel Material Plastic
Cap/operator Or Lens Colour Orange
Color Orange
Contact Form 1NO/1NC
Contact Rating 0.1A @ 600V 0.27A @ 250V 0.55A @ 125V 1.2A @ 600V 3A @ 240V 6A @ 120V
Dc Contact Rating 0.1A @ 600V, 0.27A @ 250V, 0.55A @ 125V
Device Presentation Complete Product
Display Qty 1
Features Spring Return
Finish Chrome Plated
Fixing Collar Material Plastic
Head Material Plastic
Head/lens Color Orange
Ip Rating IP66, IP67, IP69, IP69K
Lamp Bulb Type LED
Lamp Module Type Full Voltage
Lamp Module Voltage 110-120V AC
Lamp Voltage 110-120V AC
Lamp Voltage - Maximum 120V AC
Legend No Legend
Legend/background Color No Legend
Mechanical Operating Durability 1 x 10^7
Mounting Diameter 30.5 mm
Nema Contact Rating Designation A600/Q600
Nema Enclosure Rating NEMA 4X, NEMA 13
Number Of Indicator Lights 0
Number Of Operators 1
Operating Temperature - Maximum 158°F
Operating Temperature - Minimum -40°F
Operator Illumination Illuminated
Operator Material Plastic
Operator Voltage Rating - Maximum 600V AC/DC
Overall Depth 2.17"
Overall Height 1.65"
Overall Width 1 11/25"
Panel Mounting Hole Diameter 30 mm
Product Type Push Button Operators
Push Button Style Flush
Resistance Properties Antimicrobial, Vibration Resistant
Series XB5 Series
Shape Of Signaling Unit Head Round
Signalling Type Steady
Standard Logo csa.png,en.png,iec.png,ul.png
Terminal Connection Screw Clamp
Type Of Operator Flush Button
standard CSA, CSA C22.2 NO.14, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, ISO 21702, ISO 22196:2011, JIS C8201-1, JIS C8201-5-1, REACH, ROHS, UL 508, UL LISTED, WEEE

Product Details

Push Button

Shipping Information

height 4.2
length 5.5
width 3.66
country of origin FR
weight 0.051300
