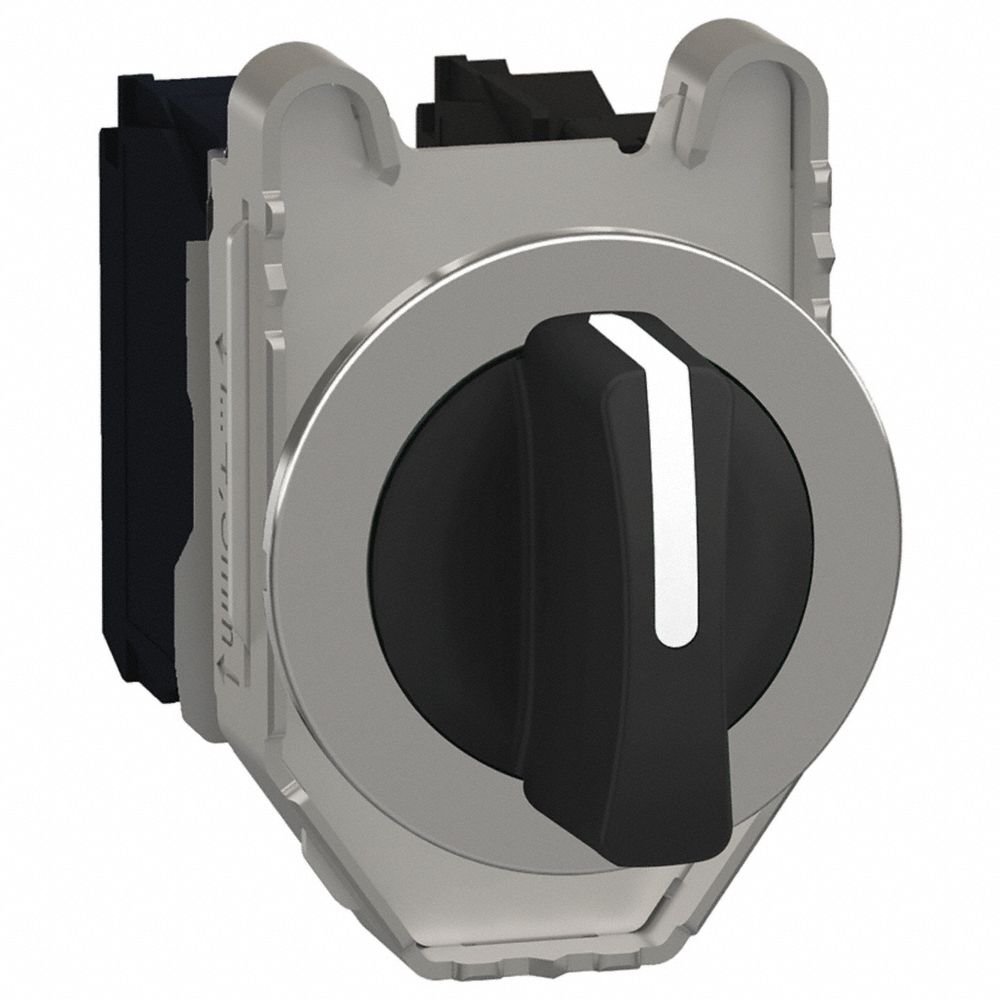

SCHNEIDER ELECTRIC XB4FD53 Selector Switch, 30 mm Size, 3 Position

Item: CE9JMX
Model: XB4FD53
In Stock

Get it by ,

We deliver to your doorstep under DAP terms. Customs clearance is for your account

£124.96
5.00% off
₹124.960000 (ex. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Ac Contact Rating 1.2A @ 600V, 3A @ 240V, 6A @ 120V
Action Momentary/Maintained/Momentary
Basic Material Metal
Bezel Color Chrome
Bezel Finish Chrome Plated , Metal
Cam No Cam Included
Color Black
Contact Block Material Metal
Contact Form 2NO
Contact Rating 3A @ 240V AC, 6A @ 120V AC, 0.1A @ 600V DC, 0.27A @ 250V DC, 0.55A @ 125V DC, 1.2A @ 600V AC
Dc Contact Rating 0.1A @ 600V, 0.27A @ 250V, 0.55A @ 125V
Device Presentation Complete Product
Fixing Collar Material Zamak
Fixing Mode By Screws
Hazardous Location Specification Not Rated
Ip Rating IP66, IP67, IP69, IP69K
Key Removal No Key
Manufacturer Warranty Length 18 Months
Mounting Diameter 30.5 mm
Nema Contact Rating Designation A600/Q600
Nema Enclosure Rating NEMA 1, NEMA 2, NEMA 3, NEMA 4, NEMA 4X, NEMA 12, NEMA 13
Number Of Positions 3
Operator Head Color Black
Operator Head Material Plastic
Operator Illumination Non Illuminated
Overall Depth 2.76"
Overall Height 1.85"
Overall Width 1 11/25"
Panel Mounting Hole Diameter 30 mm
Position 3
Positive Opening Without
Series XB4 Series
Shape Of Signaling Unit Head Round
Switch Function @ 1st Position Momentary
Switch Function @ 2nd Position Off
Switch Function @ 3rd Position Momentary
Switch Function @ 4th Position No Fourth Position
Switch Head Type Short Lever
Type Of Operator Selector Switch
standard CCC, CSA, EAC, UL LISTED

Product Details

Selector Switch

Shipping Information

height 4.7
length 7
width 3.66
country of origin FR
weight 0.128700
