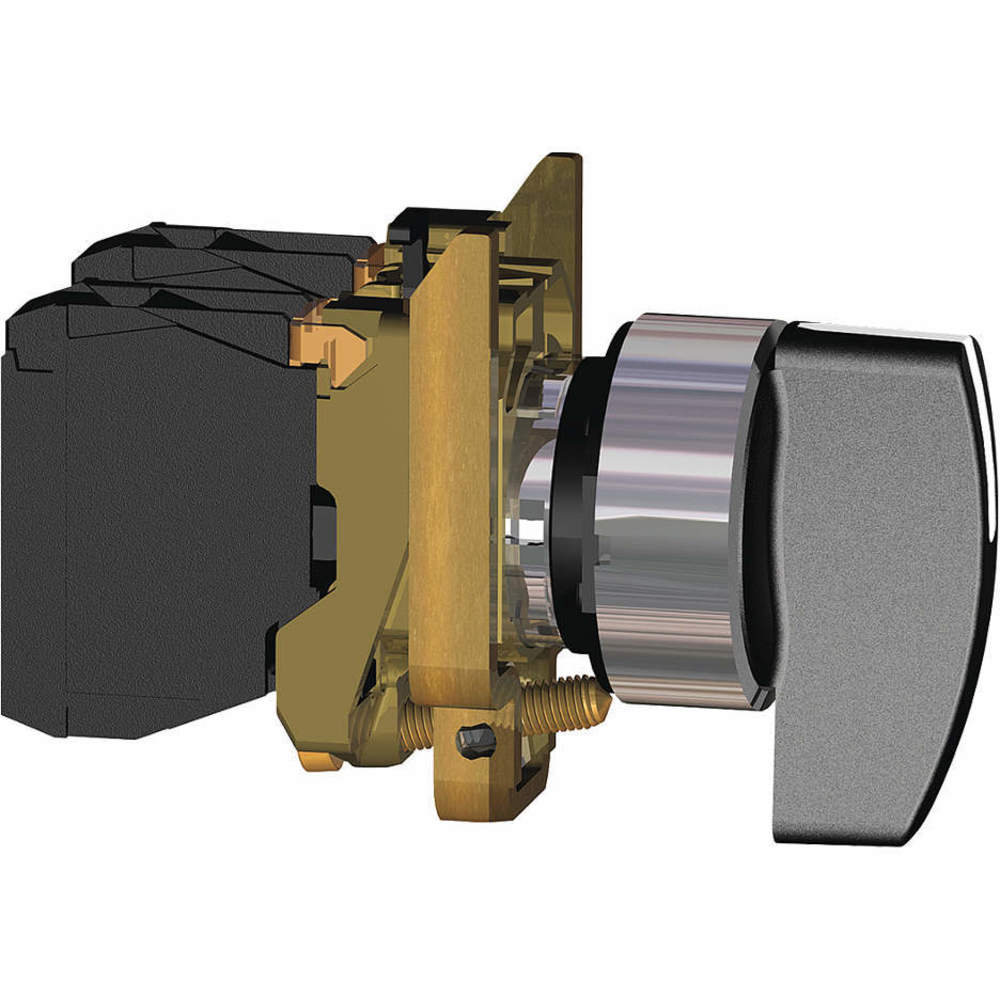

SCHNEIDER ELECTRIC XB4BJ21 Non-Illuminated Selector Switch Metal IP 65

Item: AJ2JJE
Model: XB4BJ21
20 In Stock

Ships within 2 days via

£80.71
5.00% off
£76.67/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Item Non-Illuminated Select Switch
Ac Contact Rating 1.2A @ 600V, 3A @ 240V, 6A @ 120V
Action Maintained/Maintained
Basic Material Metal
Bezel Color Chrome
Bezel Finish Chrome Plated , Metal
Cam No Cam
Color Black
Contact Block Material Metal
Contact Form 1NO
Contact Rating 10A @ 600V AC
Dc Contact Rating 0.1A @ 600V, 0.27A @ 250V, 0.55A @ 125V
Device Presentation Complete Product
Fixing Collar Material Zamak
Hazardous Location Specification Not Rated
Ip Rating IP67, IP69, IP69K
Key Removal No Key
Manufacturer Warranty Length 18 Months
Mounting Diameter 22 mm
Nema Contact Rating Designation B600/Q600
Nema Enclosure Rating NEMA 1, NEMA 2, NEMA 3, NEMA 4, NEMA 4X, NEMA 12, NEMA 13
Nema Rating NEMA 1, NEMA 2, NEMA 3, NEMA 4, NEMA 12, NEMA 13
Number Of Positions 2
Operator Head Color Black
Operator Head Material Plastic
Operator Illumination Non Illuminated
Overall Depth 2.68"
Overall Height 1.89"
Overall Width 1.18"
Panel Mounting Hole Diameter 22 mm
Positive Opening Without
Series XB4 Series
Shape Of Signaling Unit Head Round
Switch Function @ 1st Position Off
Switch Function @ 2nd Position On
Switch Function @ 3rd Position No Third Position
Switch Function @ 4th Position No Fourth Position
Switch Head Type Extended Lever
Switch Operation @ Position A O
Switch Operation @ Position B X
Switch Operation @ Position C No Third Position
Switch Operation @ Position D No Fourth Position
Type Of Operator Extended Lever
standard BV, CSA, DNV, GL, LROS, UL LISTED

Product Details

    • Bezel Color : Chrome

Shipping Information

height 4.8
length 6.8
width 3
country of origin FR
weight 0.090000
