SCHNEIDER ELECTRIC RPM12BD Power Plug-In Relay, Zelio RPM, 15 A @ 277 VAC | AF6PYE 1XZN8

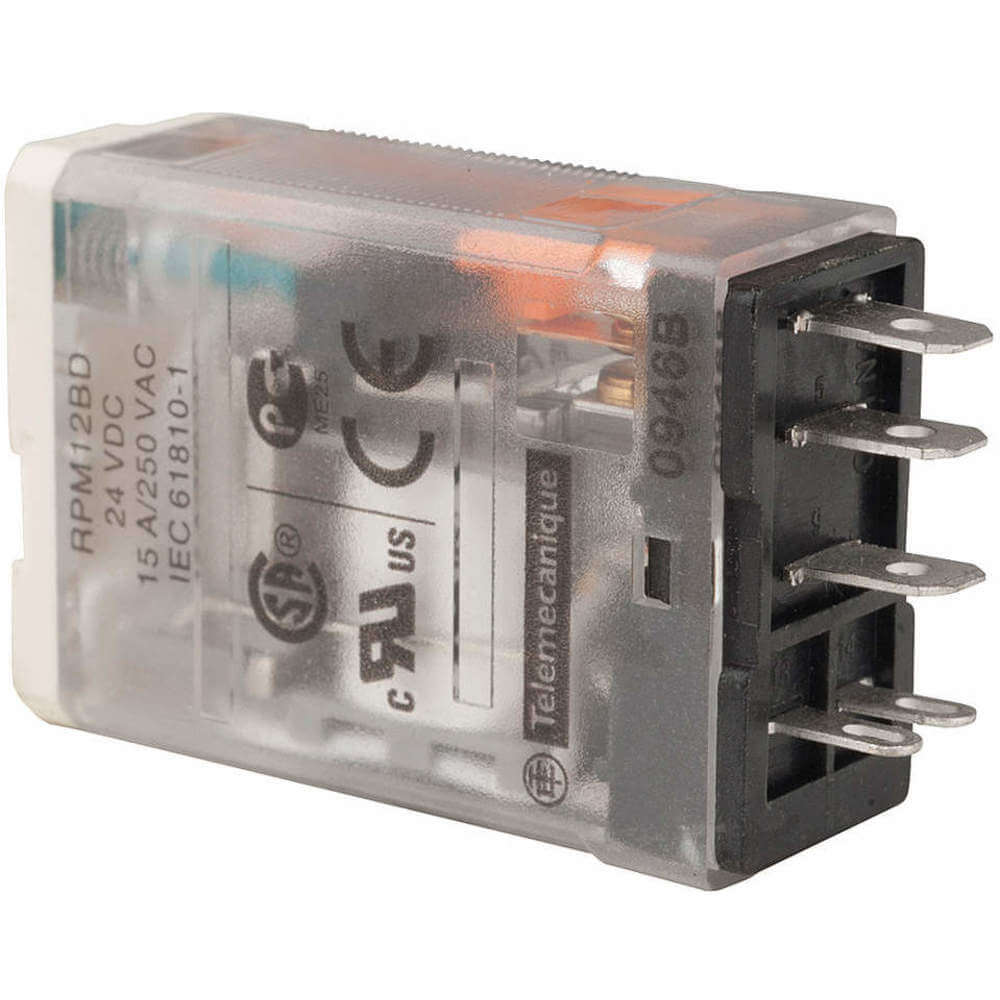

SCHNEIDER ELECTRIC RPM12BD Power Plug-In Relay, Zelio RPM, 15 A @ 277 VAC

Item: AF6PYE Model: RPM12BDCross Ref: 1XZN8
In Stock

Get it by May 9, Thursday

£9.99 Flat Shipping £9.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates

£15.18 /unit (Inc. VAT)
Trade Prices Available
ADD TO CART
REQUEST A QUOTE

Payment Methods

Delivery Partners

How NET30 Works

Step 1 Add the items into your cart or submit a Purchase order

Step 2 Checkout, select NET30 payment (provide company registration and VAT number)

Step 3 Delivery via TNT or Royal Mail and receive invoice for payment in 30-days

Step 4 Make payment via BACS to our factoring partner,

Product Specifications:

ItemRelay
Base TypeSquare
Coil VA Rating0.9
Coil Volts24 VDC
Contact Amp Rating (Resistive)15
Contact FormSPDT
Contact MaterialSilver Nickel
Contact Rating15A @ 277VAC/28VDC
Green Certification or Other RecognitionRoHS Compliant
Hz50/60
MountingSquare Plug In Socket
Pins5
Push To TestLockable
SocketMfr. No. RPZF1
Socket CodeL
Status IndicatorLED and Mechanical Flag

Shipping Info:

Ship weight (kg) 0.02
Ship height (cm)2.54
Ship length (cm)5.08
Ship width (cm)1.27
HS code8536490080

Product Details:

  • Zelio Series relay with silver alloy contact and SPDT configuration designed for electrical load switching applications
  • Features plug in protection module to protect against electrical spikes, and a lockable control button
  • Suitable for standard applications that do not require manual adjustments and can withstand impulse voltages up to 4kV
  • Metal maintaining clamp for accommodating single-contact relays
  • Spring-return pushbutton to test the relay contacts

Frequently Asked Questions:

Q. Does Schneider Electric RPM12BD power relay have an LED indicator?

A. It comes with an LED and a mechanical flag for status indication.

Q. What is the average coil resistance offered by Schneider Electric RPM12BD power plug-in relay?

A. The average coil resistance offered by Schneider Electric RPM12BD power plug-in relay is 450 Ohms at 20 degrees C (+/-10%).

Q. What is the ambient air temperature range (operating) of Schneider Electric RPM12BD power plug-in relay?

A. This power plug-in relay can be operated at temperatures ranging from -40 to 55 degrees C.

Product Variants

ProductModelCoil VA RatingContact Amp Rating (Resistive)Contact FormContact MaterialContact RatingPinsSocketPrice
SCHNEIDER ELECTRIC RXM2AB1BD Relay 8-pin Dpdt 12a 24vdc | AF6NWA 1DPX8
RXM2AB1BD1.212DPDTSilver Nickel12A @ 277VAC/30VDC8Mfr. No. RXZE2M114, RXZE2M114M, RXZE2S108M£14.08
SCHNEIDER ELECTRIC RXM3AB1BD Relay 11pin 3pdt 10a 24vdc | AF6NWE 1DPY7
RXM3AB1BD1.2103PDTSilver Nickel10A @ 277VAC/30VDC11Mfr. No. RXZE2S111M£14.50
SCHNEIDER ELECTRIC RPM32BD Relay 11pin 3pdt 15a 24vdc | AF6PXP 1XZJ8
RPM32BD1.5153PDTSilver Nickel15A @ 277VAC/28VDC11Mfr. No. RPZF3£24.28
SCHNEIDER ELECTRIC RPM22BD Relay 8-pin Dpdt 15a 24vdc | AF6PXX 1XZL3
RPM22BD1.215DPDTSilver Nickel15A @ 277VAC/28VDC8Mfr. No. RPZF2£19.21
SCHNEIDER ELECTRIC RXM4GB2BD Relay 14pin 4pdt 3a 24vdc | AF6PYA 1XZN1
RXM4GB2BD1.234PDTSilver Gold3A @ 277VAC/30VDC14Mfr. No. RXZE2M114, RXZE2M114M, RXZE2S108M£18.35
SCHNEIDER ELECTRIC RXM2AB2BD Relay 8-pin Dpdt 12a 24vdc | AF6PYJ 1XZP3
RXM2AB2BD1.212DPDTSilver Nickel12A @ 277VAC/30VDC8Mfr. No. RXZE2M114, RXZE2M114M, RXZE2S108M£16.70
SCHNEIDER ELECTRIC RXM4AB2BD Relay, Plug-in Type, 14 pin, 6 A, 24 VDC | AF6PYN 1XZP8
RXM4AB2BD1.264PDTSilver Nickel6A @ 277VAC, 8A @ 30VDC14Mfr. No. RXZE2M114, RXZE2M114M, RXZE2S108M£18.35
