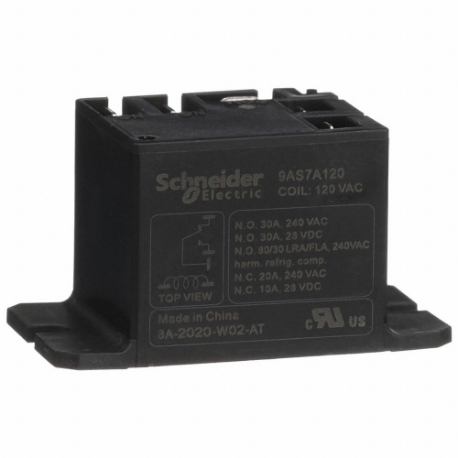

SCHNEIDER ELECTRIC 9AS7A120 Power Relay, Surface Mounted, 30 A Current Rating, 120V AC, 5 Pins/Terminals
Item: CU2EBB
Model: 9AS7A120
In Stock
Get it by ,
We deliver to your doorstep under DAP terms. Customs clearance is for your account
5.00% off
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Ac Contact Rating | 3A @ 277V-5A (NC)10A @ 277V-5A (No)10A @ 277V-8A (NC)12A @ 240V-8A (NC)20A @ 240V-1 (NC)22A @ 120V-8A (No)30A @ 240V (No)30A @ 240V-8A (NC)30A @ 240V-8A (No)33A @ 277V-8A (NC)80A @ 240V-8A (No)98A @ 120V-8A (No) |
|---|---|
| Coil Voltage | 120V AC |
| Contact Form | SPDT |
| Contact Rating (ac) | 3A @ 277V-5A (Nc), 10A @ 277V-5A (No), 10A @ 277V-8A (Nc), 12A @ 240V-8A (Nc), 20A @ 240V-1 (Nc), 22A @ 120V-8A (No), 30A @ 240V (No), 30A @ 240V-8A (Nc), 30A @ 240V-8A (No), 33A @ 277V-8A (Nc), 80A @ 240V-8A (No), 98A @ 120V-8A (No) |
| Contact Rating (dc) | 10A @ 28V (NC), 30A @ 28V (NO) |
| Current Rating | 30A |
| Dc Contact Rating | 10A @ 28V (Nc), 30A @ 28V (No) |
| Dielectric Strength | 1500V Between Contacts With Micro Disconnection, 2500V AC Between Coil And Contact |
| Electrical Connection | Tab |
| Electrical Connection Type | Tab |
| Electrical Operating Durability | 100000 |
| Hp @ 120v | 1 1/4 hp |
|---|---|
| Hp @ 240v | 2 1/2 hp |
| Mechanical Operating Durability | 10000000 |
| Mfr. Series | 9A Power Series |
| Motor Rating | Yes |
| Number Of Pins/terminals | 5 |
| Push-to-test Button | No Test Button |
| Relay Mounting Style | Surface Top Flange |
| Sealing | Sealed |
| Status Indicator | No |
Product Details
Relay
Shipping Information
| height | 2.54 |
|---|---|
| length | 2.54 |
| width | 2.54 |
| country of origin | CN |
|---|---|
| weight | 0.031500 |
