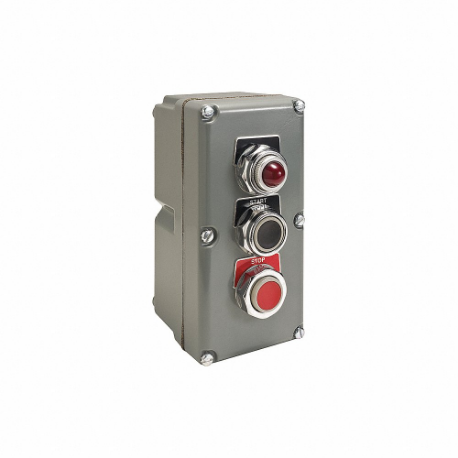

SCHNEIDER ELECTRIC 9001KYK317 Push Button Control Station, Momentary, 1No/1Nc, Start/Stop, Push Button
Item: CU2AVE
Model: 9001KYK317
15 In Stock
Ships within 2 days via
5.00% off
£835.63/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Ac Contact Rating | 1.2A @ 600V, 1.5A @ 480V, 3A @ 240V, 6A @ 120V |
|---|---|
| Action Type | Momentary |
| Contact Form | 1NO/1NC |
| Contact Rating | 10A |
| Dc Contact Rating | 0.2A @ 600V, 0.55A @ 240V, 1.1A @ 120V |
| Enclosure Color | Gray |
| Enclosure Material | Zinc |
| Hub | NPT |
| Hub Size | 3/4" |
| Hub Style | Dead End |
| Ip Rating | IP66 |
| Legend | Start/Stop |
| Manufacturer Warranty Length | 18 Months |
| Mounting | Surface |
| Mounting Style | Surface |
| Nema Enclosure Rating | NEMA 3, NEMA 4, NEMA 13 |
| Number Of Operators | 3 |
| Number Of Pilot Lights | 1 |
| Number Of Speeds | 1 |
| Operating Temperature - Maximum | 158°F |
|---|---|
| Operating Temperature - Minimum | -13°F |
| Operator Action | (2) Momentary |
| Operator Color | Black, Red |
| Operator Configuration | 2 Push Buttons |
| Operator Configuration Type | (2) Push Buttons |
| Operator Legend | Start, Stop |
| Overall Depth | 3.53" |
| Overall Height | 7" |
| Overall Width | 3.62" |
| Panel Cutout Diameter | 30 mm |
| Pilot Light Color | Red |
| Pilot Light Lamp Voltage | 120V AC |
| Product Type | Control Station |
| Push Button Type | Flush |
| Series | 9001K Series |
| Standard Logo | UL.png |
| Type Of Operator | Push Button |
Product Details
Push Button Control Station
Shipping Information
| height | 2.54 |
|---|---|
| length | 2.54 |
| width | 2.54 |
| country of origin | MX |
|---|---|
| weight | 2.110500 |
