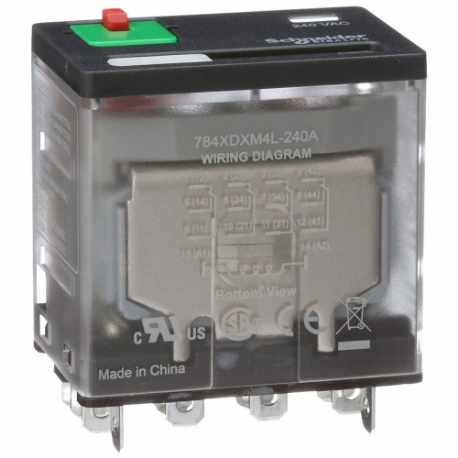

SCHNEIDER ELECTRIC 784XDXM4L-240A General Purpose Relay, Socket Mounted, 15 A Current Rating, 240 VAC, 14 Pins/Terminals

Item: CU2BJQ
Model: 784XDXM4L-240A
14 In Stock

Ships within 2 days via

£39.68
5.00% off
£37.7/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Specifications

Ac Contact Rating 7.55A @ 250V10A @ 151/277V15A @ 120 To 277/120/150/250V
Amps Rating 15A
Coil Voltage 240V AC
Contact Form 4PDT
Contact Rating (ac) 7.55A @ 250V, 10A @ 151/277V, 15A @ 120 to 277/120/150/250V
Current Rating 15A
Dc Contact Rating 7.55A @ 28V (Nc), 15A @ 28V (No)
Dielectric Strength 1500V AC Between Contacts, 2000V AC Between Coil And Contact, 2000V AC Between Poles
Electrical Connection Tab
Electrical Connection Type Tab
Electrical Operating Durability 100000
Hp @ 120v 1/2 hp
Hp @ 240v 3/4 hp
Mechanical Operating Durability 10000000
Mfr. Series 784 Series
Motor Rating Yes
Number Of Pins 14
Number Of Pins/terminals 14
Product Datasheet schneider-electric-784xdxm4l-240a.pdf
Push-to-test Button Lockable Push Test Button
Relay Mounting Style Socket
Socket Code F
Status Indicator LED Indicatormechanical Flag

Product Details

Shipping Information

Height 2.72
Length 3.91
Width 4.06
Country Of Origin CN
Weight 0.069800
