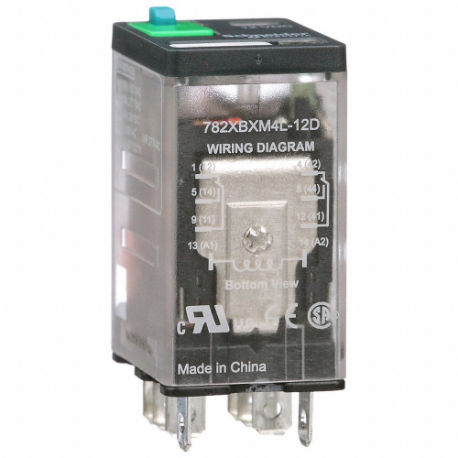

SCHNEIDER ELECTRIC 782XBXM4L-12D General Purpose Relay, Socket Mounted, 15 A Current Rating, 12 VDC, 8 Pins/Terminals, DPDT

Item: CU2BJC
Model: 782XBXM4L-12D
13 In Stock

Ships within 2 days via

£32.2
5.00% off
£30.59/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Specifications

Amps Rating 15A
Coil Voltage 12V DC
Contact Form DPDT
Contact Rating (ac) 7.55A @ 250V (Nc), 10A @ 151/277V, 15A @ 120 to 277/120/150/250V (No)
Current Rating 15A
Dc Contact Rating 7.55A @ 28V (Nc), 15A @ 28V (No)
Dielectric Strength 1500V AC Between Contacts, 2000V AC Between Coil And Contact, 2000V AC Between Poles
Electrical Connection Tab
Electrical Connection Type Tab
Electrical Operating Durability 100000
Horsepower @ 120v Ac 1/2 hp
Hp @ 240v 1 hp
Mechanical Operating Durability 10000000
Mfr. Series 782 Series
Motor Rating Yes
Number Of Pins 8
Number Of Pins/terminals 8
Product Datasheet schneider-electric-782xbxm4l-12d.pdf
Push-to-test Button Lockable Push Test Button
Relay Mounting Style Socket
Socket Code D
Status Indicator LED Indicatormechanical Flag

Product Details

Shipping Information

Height 2.72
Length 3.91
Width 2.11
Country Of Origin CN
Weight 0.045000
