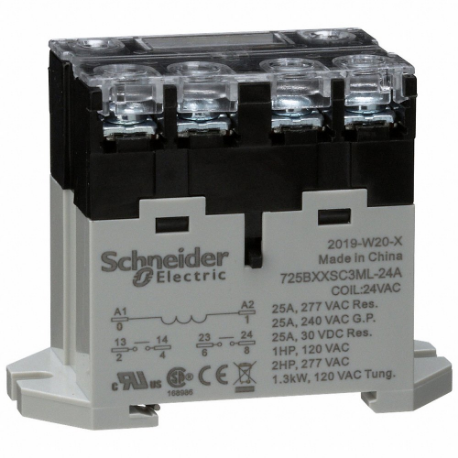

SCHNEIDER ELECTRIC 725BXXSC3ML-24A Enclosed Power Relay, Din-Rail & Surface Mounted, 25 A Current Rating, 24VAC, Dpst-No

Item: CU2BDG
Model: 725BXXSC3ML-24A
26 In Stock

Ships within 2 days via

£61.5
5.00% off
£58.43/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Ac Contact Rating 25A @ 240/277V
Average Coil Consumption 2.5 VA
Base Shape Square
Body Depth 1.3"
Body Height 1.3" , 2.09"
Body Width 2.67"
Coil Resistance 275 ohms
Coil Voltage 24V AC
Contact Form Dpst-No
Contacts Material Silver Alloy Contacts
Control Circuit Voltage 24V
Current Rating 25A
Dc Contact Rating 25A @ 28/30V
Dielectric Strength 2000V AC Between Poles, 4000V AC Between Coil And Contact
Electrical Connection Screw
Electrical Connection - Power Relay Screw
Electrical Connection Type Screw
Electrical Operating Durability 100000
Hp @ 120v 1 hp
Hp @ 240v 2 hp
Mechanical Operating Durability 5000000
Mfr. Series Harmony 725 Power Series
Min. Switching Amps 100 mA
Motor Rating Yes
Number Of Pins 6
Number Of Pins - Relay 6
Number Of Pins/terminals 6
Number Of Poles 2
Overall Depth 2 3/25"
Overall Height 2.09"
Power Consumption 2.5 VA
Power Consumption - Relay 2.5 VA
Product Range Harmony Electromechanical Relays
Push-to-test Button Manual Push Test Button
Push-to-test Method Test Button
Relay Mounting Style Din Rail, Surface
Response Time 30 ms
Status Indicator LED Indicator

Product Details

Enclosed Power Relay

Shipping Information

height 3.3
length 3.3
width 6.78
country of origin CN
weight 0.121500
