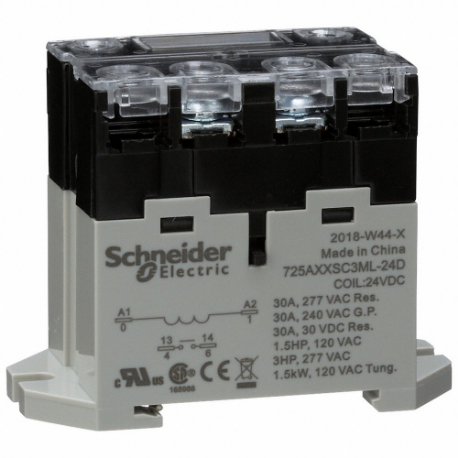

SCHNEIDER ELECTRIC 725AXXSC3ML-24D Enclosed Power Relay, Din-Rail & Surface Mounted, 30 A Current Rating, 24VDC, Spst-No

Item: CU2BEA
Model: 725AXXSC3ML-24D
13 In Stock

Ships within 2 days via

£47.03
5.00% off
£44.68/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Specifications

Ac Contact Rating 30A @ 240/277V
Average Coil Consumption 1.9 W
Body Depth 1.3" , 1.39"
Body Height 1.3" , 2.09"
Body Width 2.67"
Coil Resistance 300 ohms
Coil Voltage 24V DC
Contact Form SPST-NO
Contacts Material Silver Alloy Contacts
Control Circuit Voltage 24V
Current Rating 30A
Dc Contact Rating 30A @ 28/30V
Dielectric Strength 4000V AC Between Coil And Contact
Electrical Connection Screw
Electrical Connection - Power Relay Screw
Electrical Connection Type Screw
Electrical Operating Durability 100000
Hp @ 120v 1 1/2 hp
Hp @ 240v 3 hp
Mechanical Operating Durability 5000000
Mfr. Series Harmony 725 Power Series
Min. Switching Amps 100 mA
Motor Rating Yes
Number Of Pins 4
Number Of Pins - Relay 4
Number Of Pins/terminals 4
Number Of Poles 1
Overall Depth 2 3/25"
Overall Height 2.09"
Power Consumption 1.9 W
Power Consumption - Relay 2.5 W
Product Datasheet schneider-electric-725axxsc3ml-24d.pdf
Product Range Harmony Electromechanical Relays
Push-to-test Button Manual Push Test Button
Push-to-test Method Test Button
Relay Mounting Style Din Rail, Surface
Response Time 30 ms
Status Indicator LED Indicator

Product Details

Shipping Information

Height 3.3
Length 3.53
Width 6.78
Country Of Origin CN
Weight 0.112500
