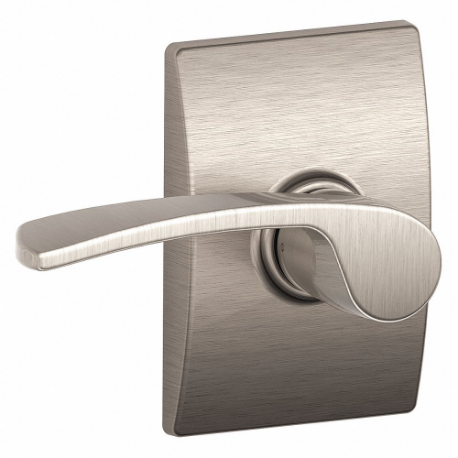

SCHLAGE F10 MER 619 CEN Door Lever Lockset, Grade 2, Merano, Satin Nickel
Item: CT9YMY
Model: F10 MER 619 CEN
In Stock
Get it by ,
We deliver to your doorstep under DAP terms. Customs clearance is for your account
5.00% off
₹120.460000
(ex. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Ada Compliant | Yes |
|---|---|
| Ansi Grade | Grade 2 |
| Ansi Lockset Function | Passage |
| Backset | 2 3/8" |
| Door Thickness - Maximum | 1 3/4" |
| Door Thickness - Minimum | 1 3/8" |
| Electrical/mechanical | Mechanical |
| Features | Lifetime Finish And Mechanical Warranty |
| Finish | Satin Nickel Plated, Clear Coated |
| Fire Rating | 3 hrs. |
| For Use With | Residential/Light Commercial Applications |
| Function | Passage |
| General Lockset Function | Passage Lever Locksets |
| Hand Orientation | Non Handed |
| Handle Material | Zinc |
| Handle Type | Lever |
| Includes | Latch, Mounting Hardware, Strike |
| Inside Locking Access | Not Lockable |
| Key Type | Not Keyed |
| Knob/handle Material | Zinc |
| Ligature Resistance | Not Ligature Resistant |
| Ligature Resistant | No |
|---|---|
| Location Type | Multiple Family Residential |
| Lock Assembly Type | Cylindrical |
| Lockset Function Ansi Code | F75 |
| Lockset Handle Type | Lever |
| Lockset Performance Strength | Light Duty |
| Lockset Style | Merano |
| Lockset Type | Mechanical |
| Mortise / Cylindrical | Cylindrical |
| Mounting Style | Screw In |
| Number Of Keys | 0 |
| Outside Locking Access | Not Lockable |
| Performance Duty Rating | 3 |
| Required Door Thickness | 1 3/8" to 1 3/4" |
| Strike Plate Height | 2 1/4" |
| Strike Plate Width | 1 5/8" |
| Strike Type | Full Lip, Round Corner |
| Style | F Merano |
| Visual Indicator Message | No Message |
| standard | ANSI A156.2, 1996, UL LISTED |
Product Details
Door Lever Lockset
Shipping Information
| height | 2.54 |
|---|---|
| length | 2.54 |
| width | 2.54 |
| country of origin | MX |
|---|---|
| weight | 0.697500 |
