| Application | Aerospace Tooling, All Purpose Industrial And Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Casters, Chassis Rack Carts, Engine Dollies, Material Carts |
|---|---|
| Brake Type | No Brake Included |
| Caster Brake Included | No |
| Caster Brake Type | No Brake Included |
| Caster Core Material | Cast Iron |
| Caster Frame Material | Steel |
| Caster Material | Steel |
| Caster Plate Hole Pattern | B |
| Caster Shape | Standard |
| Caster Sub-type | Rigid |
| Caster Temp. Range Available | Yes |
| Core Color | Gray |
| Extended Lead | No |
| Frame Finish | Zinc |
| Frame Material | Steel |
| Includes | Complete Caster |
| Includes Thread Guards | No |
| Load Rating | 1050 lbs. |
| Load Rating Range | 1000 lbs. to 2999 lbs. |
| Mounting Bolt Dia. | 3/8" |
| Mounting Height | 6 1/2" |
| Mounting Plate Bolt Hole Pattern | A |
| Mounting Plate Size & Bolt Hole Pattern | 4 1/2" X 6 1/2" ( A ) |
|---|---|
| Non-marking | Yes |
| Number Of Mounting Holes | 4 |
| Number Of Wheels | 1 |
| Plate Caster Bolt Hole Pattern | B |
| Replacement Wheel | Mfr. No. UIR-0520-08 |
| Standard Logo | iso.png |
| Swivel Lock Type | No Lock Included |
| Swivel Radius | 2" |
| Thread Guards | No |
| Tread Material, Wheel Material | Polyurethane |
| Tread Shape | Standard |
| Wheel Bearing Type | Roller |
| Wheel Color | Blue |
| Wheel Core Material | Cast Iron |
| Wheel Diameter | 5" |
| Wheel Width | 2" |
| Wheel/tread Color | Blue |
| Wheel/tread Hardness | 92 Shore A |
| Wheel/tread Hardness Rating | Firm |
| standard | ICWM, ISO 9001 |

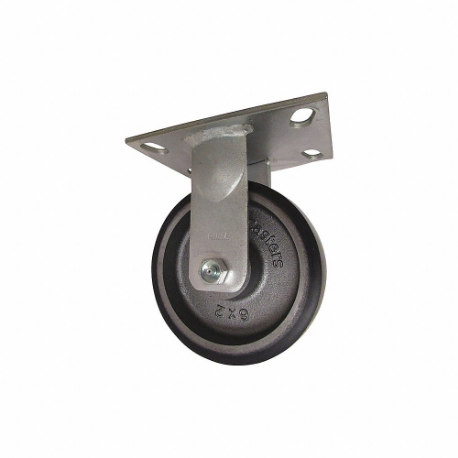

Plate Caster
| height | 2.54 |
|---|---|
| length | 2.54 |
| width | 2.54 |
|---|---|
| weight | 4.050000 |
| Style | Model | Inside Bolt Hole Spacing | Outside Bolt Hole Spacing | Mounting Plate Bolt Hole Pattern | Mounting Plate Size | Wheel Width | Load Rating | Wheel Bearing Type | Mounting Height | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 75-UIR-1030-R | 2 7/16" x 4 15/16" | 3 3/8" x 5 1/4" | A | 4 1/2" x 6 1/2" | 3" | 3000 lbs. | Roller | 11 1/2" | 656.84 | |
| B | 75-CIR-1030-R | 2 7/16" x 4 15/16" | 3 3/8" x 5 1/4" | A | 4 1/2" x 6 1/2" | - | - | Roller | 11 1/2" | 480.79 | |
| C | 75-FSR-1030-R | 2 7/16" x 4 15/16" | 3 3/8" x 5 1/4" | A | 4 1/2" x 6 1/2" | 3" | 6000 lbs. | Roller | 11 1/2" | 721.66 | |
| D | 75-NYB-1030-R | 2 7/16" x 4 15/16" | 3 3/8" x 5 1/4" | A | 4 1/2" x 6 1/2" | 3" | 6000 lbs. | Precision Ball | 11 1/2" | 1,089.12 | |
| E | 75-UIR-1030-S | 2 7/16" x 4 15/16" | 3 3/8" x 5 1/4" | A | 4 1/2" x 6 1/2" | 3" | 3000 lbs. | Roller | 11 1/2" | 789.25 | |
| F | 75-NYB-1030-S | 2 7/16" x 4 15/16" | 3 3/8" x 5 1/4" | A | 4 1/2" x 6 1/2" | 3" | 6000 lbs. | Precision Ball | 11 1/2" | 1,154.47 | |
| G | 75-CIR-1030-S | 2 7/16" x 4 15/16" | 3 3/8" x 5 1/4" | A | 4 1/2" x 6 1/2" | 3" | 4000 lbs. | Roller | 11 1/2" | 545.65 |
