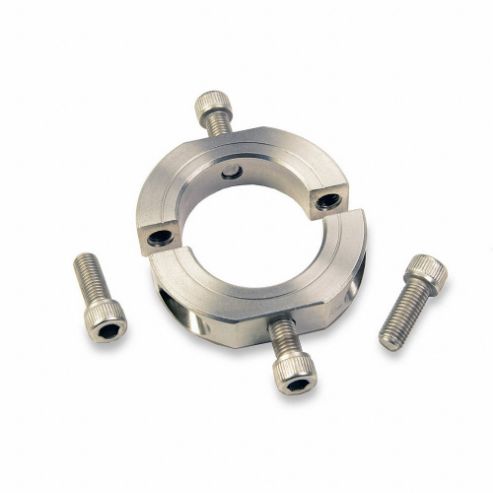

RULAND MANUFACTURING OF-SP-6-SS Mountable Shaft Collar, 3/8 Inch Bore Dia, Round, Stainless Steel, 303
Item: CT9JNX
Model: OF-SP-6-SS
25 In Stock
Ships within 2 days via
5.00% off
£59.7/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Specifications
| Bore Dia. | 3/8" |
|---|---|
| Bore Tolerance | 0.0005" to 0.002" |
| Bore Type | Round |
| Clearance Dia. | 1.03" |
| Collar Construction | 2-Piece |
| Collar Material | Stainless Steel |
| Collar Material Finish | Bright |
| Collar Material Grade | Grade 303 |
| Collar Outside Diameter | 7/8" |
| Collar Width | 11/32" |
| Component Mount Type | Outer Diameter Holes With Wrench Flats |
| Construction | Two Piece |
| Distance Across Flats | 3/4" |
| Flat To Bore | 0.18" |
| For Shaft Dia. | 3/8" |
| For Shaft Diameter | 3/8" |
| For Shaft Type | Round |
|---|---|
| Included Screws | (2) Clamp Screw |
| Max. Operating Temp. | 350°F |
| Min. Operating Temp. | -40°F |
| Mount Hole Thread Size | #6-32 |
| Outside Dia. | 7/8" |
| Resistance Properties | Corrosion Resistant |
| Screw Location From Center | 0.31" |
| Screw Material | Stainless Steel |
| Screw Material Finish | Bright |
| Screw Material Grade | Grade 18-8, 300 Series |
| Screw Seating Torque | 15 lbs.-in. |
| Shaft Locking Type | Clamp On |
| Shaft Tolerance | -0.0005" to 0" |
| System Of Measurement | Imperial |
| Width Tolerance | -0.01" to +0.003" |
Product Details
Shipping Information
| Height | 1.43 |
|---|---|
| Length | 6.05 |
| Width | 6.05 |
| Country Of Origin | US |
|---|---|
| Weight | 0.018000 |
Related Products
| Style | Model | Bore Dia. | Collar Material | Outside Dia. | Width Tolerance | Shaft Tolerance | Bore Tolerance | Included Screws | Screw Material Finish | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | OF-MCL-24E-AN | 1 1/2" | Aluminum | 60 mm | -0.254 mm to +0.076 mm | -0.0005" to 0" | 0.0005" to 0.002" | Clamp Screw | Bright | 121.41 | |
| B | OF-MSP-24E-AN | 1 1/2" | Aluminum | 60 mm | -0.254 mm to +0.076 mm | -0.0005" to 0" | 0.0005" to 0.002" | (2) Clamp Screw | Bright | 158.58 | |
| C | OF-CL-24-A | 1 1/2" | Aluminum | 2 3/8" | -0.01" to +0.003" | -0.0005" to 0" | 0.0005" to 0.002" | Clamp Screw | Black Oxide | 44.40 | |
| B | OF-SP-24-A | 1 1/2" | Aluminum | 2 3/8" | -0.01" to +0.003" | -0.0005" to 0" | 0.0005" to 0.002" | (2) Clamp Screw | Black Oxide | 74.07 | |
| D | OF-CL-24-F | 1 1/2" | Carbon Steel | 2 3/8" | -0.01" to +0.003" | -0.0005" to 0" | 0.0005" to 0.002" | Clamp Screw | Black Oxide | 46.55 | |
| E | OF-SP-24-F | 1 1/2" | Carbon Steel | 2 3/8" | -0.01" to +0.003" | -0.0005" to 0" | 0.0005" to 0.002" | (2) Clamp Screw | Black Oxide | 52.98 | |
| F | OF-MCL-24E-F | 1 1/2" | Carbon Steel | 60 mm | -0.254 mm to +0.076 mm | -0.0005" to 0" | 0.0005" to 0.002" | Clamp Screw | Black Oxide | 74.60 |
