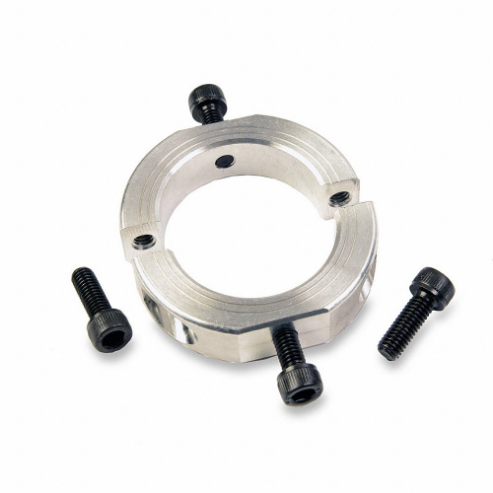

RULAND MANUFACTURING OF-MSP-30-A Mountable Shaft Collar, 30 mm Bore Dia, Round, Aluminum, 10 mm Flat To Bore
Item: CT9JPB
Model: OF-MSP-30-A
21 In Stock
Ships within 2 days via
5.00% off
£73.93/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Specifications
| Bore Dia. | 30 mm |
|---|---|
| Bore Tolerance | 0.012 mm to 0.5 mm |
| Bore Type | Round |
| Clearance Dia. | 59.2 mm |
| Collar Construction | 2-Piece |
| Collar Material | Aluminum |
| Collar Material Finish | Bright |
| Collar Material Grade | Grade 2024 |
| Collar Outside Diameter | 54 mm |
| Collar Width | 15 mm |
| Component Mount Type | Outer Diameter Holes With Wrench Flats |
| Construction | Two Piece |
| Distance Across Flats | 50 mm |
| Flat To Bore | 10 mm |
| For Shaft Dia. | 30 mm |
| For Shaft Diameter | 30 mm |
| For Shaft Type | Round |
| Grade | Grade 2024 |
|---|---|
| Included Screws | (2) Clamp Screw |
| Max. Operating Temp. | 225°F |
| Min. Operating Temp. | -40°F |
| Mount Hole Thread Size | M6 |
| Outside Dia. | 54 mm |
| Screw Length | 18 mm |
| Screw Location From Center | 21.49 mm |
| Screw Material | Alloy Steel |
| Screw Material Finish | Black Oxide |
| Screw Seating Torque | 16 N-m |
| Shaft Locking Type | Clamp On |
| Shaft Tolerance | -0.013 mm to 0 mm |
| Standard Logo | ce.png,din.png,iso.png,rohs.png |
| System Of Measurement | Metric |
| Width Tolerance | -0.254 mm to +0.076 mm |
Product Details
Shaft Collar
Shipping Information
| height | 1.43 |
|---|---|
| length | 6.05 |
| width | 6.05 |
| country of origin | US |
|---|---|
| weight | 0.063000 |
Related Products
| Style | Model | Bore Dia. | Collar Material | Outside Dia. | Width Tolerance | Shaft Tolerance | Bore Tolerance | Included Screws | Screw Material Finish | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | OF-MCL-24E-AN | 1 1/2" | Aluminum | 60 mm | -0.254 mm to +0.076 mm | -0.0005" to 0" | 0.0005" to 0.002" | Clamp Screw | Bright | 121.41 | |
| B | OF-MSP-24E-AN | 1 1/2" | Aluminum | 60 mm | -0.254 mm to +0.076 mm | -0.0005" to 0" | 0.0005" to 0.002" | (2) Clamp Screw | Bright | 158.58 | |
| C | OF-CL-24-A | 1 1/2" | Aluminum | 2 3/8" | -0.01" to +0.003" | -0.0005" to 0" | 0.0005" to 0.002" | Clamp Screw | Black Oxide | 44.40 | |
| B | OF-SP-24-A | 1 1/2" | Aluminum | 2 3/8" | -0.01" to +0.003" | -0.0005" to 0" | 0.0005" to 0.002" | (2) Clamp Screw | Black Oxide | 74.07 | |
| D | OF-CL-24-F | 1 1/2" | Carbon Steel | 2 3/8" | -0.01" to +0.003" | -0.0005" to 0" | 0.0005" to 0.002" | Clamp Screw | Black Oxide | 46.55 | |
| E | OF-SP-24-F | 1 1/2" | Carbon Steel | 2 3/8" | -0.01" to +0.003" | -0.0005" to 0" | 0.0005" to 0.002" | (2) Clamp Screw | Black Oxide | 52.98 | |
| F | OF-MCL-24E-F | 1 1/2" | Carbon Steel | 60 mm | -0.254 mm to +0.076 mm | -0.0005" to 0" | 0.0005" to 0.002" | Clamp Screw | Black Oxide | 74.60 |
