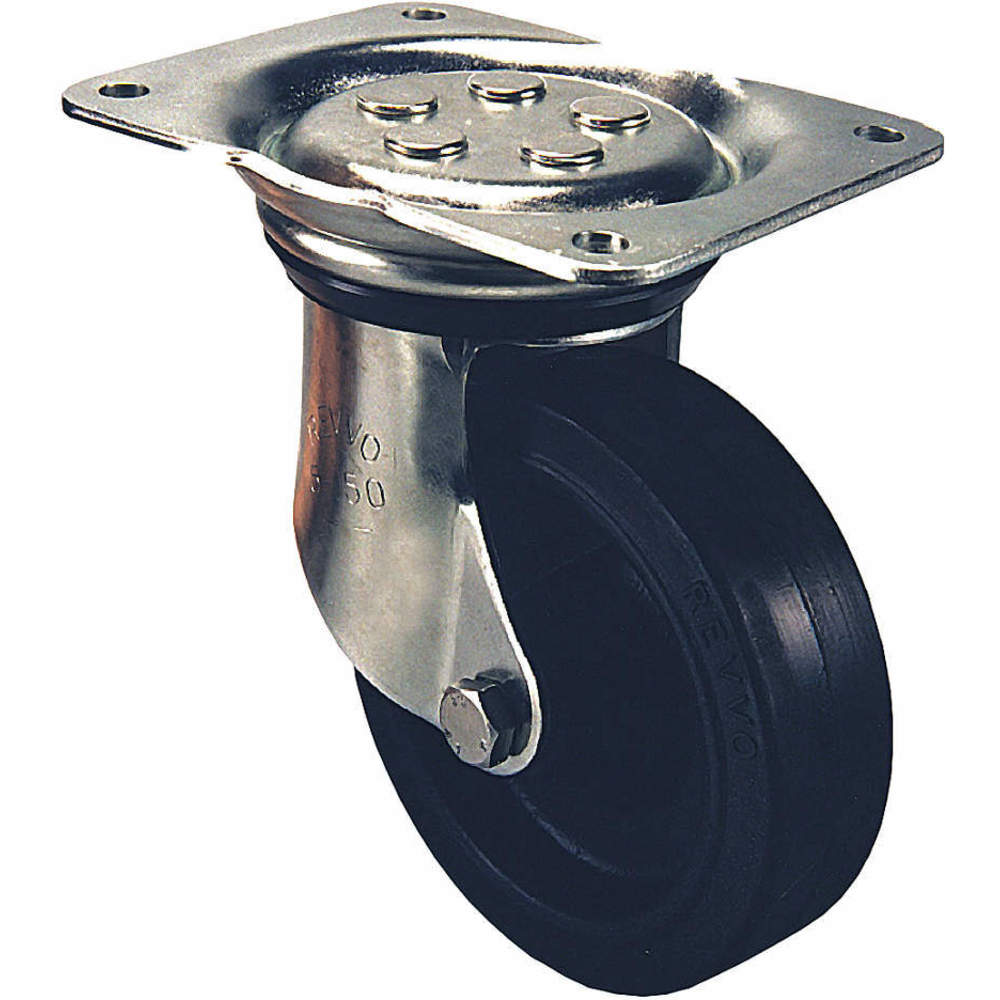

| Item | Swivel Plate Caster |
|---|---|
| Application | Material Handling Casters |
| Bearing Type | Single Ball |
| Caster Brake Included | No |
| Caster Frame Material | Steel |
| Caster Load Rating Range | 1000 lbs. to 2999 lbs. |
| Caster Material | Phenolic |
| Caster Product Group | Kingpinless Caster |
| Caster Sub-type | Kingpinless Swivel |
| Caster Type | Kingpinless Swivel |
| Caster Wheel Material | Phenolic |
| Caster Wheel Shape | Standard |
| Core Color | Black |
| Core Material | Phenolic |
| Durometer | 90 Shore D |
| Extended Lead | No |
| Frame Finish | Zinc Plated |
| Frame Material | Steel |
| Hole Pattern | D |
| Inside Bolt Hole Spacing | 4 1/8" x 4 1/8" |
| Load Rating | 1400 lbs. |
| Lock Type | No Lock Included |
| Mounting Bolt Dia. | 3/8" |
| Mounting Plate Size | 5 3/8" x 6 3/4" |
| Mounting Plate Size & Bolt Hole Pattern | 5 3/8" x 6 3/4" |
| Non-marking | Yes |
|---|---|
| Number Of Wheels | 1 |
| Operating Temp. Range | -65°F to +250°F |
| Outside Bolt Hole Spacing | 5 1/2" x 5 1/2" |
| Plate Caster Core Material | Phenolic |
| Plate Caster Lock | No Lock Included |
| Plate Caster Wheel Material | Phenolic |
| Plate Size | 5 3/8" x 6 3/4" |
| Plate Thickness | 0.156" |
| Plate Type | D |
| Product Datasheet | revvo-bs5-150-ny15.pdf |
| Raceway Type | Single Ball |
| Standard Logo | iso.png |
| Standards | Icwm |
| Swivel Lock Type | No Lock Included |
| Swivel Raceway Type | Single Ball |
| Tread Shape | Standard |
| Wheel Bearing Type | Roller |
| Wheel Bearings | Roller |
| Wheel Color | Black |
| Wheel Core Material | Phenolic |
| Wheel Diameter | 8" |
| Wheel Width | 2" |
| Wheel/tread Material | Phenolic |
| Height | 24.76 |
|---|---|
| Length | 11.43 |
| Width | 11.43 |
| HS Code | 8716900000 |
|---|---|
| Weight | 3.870000 |
