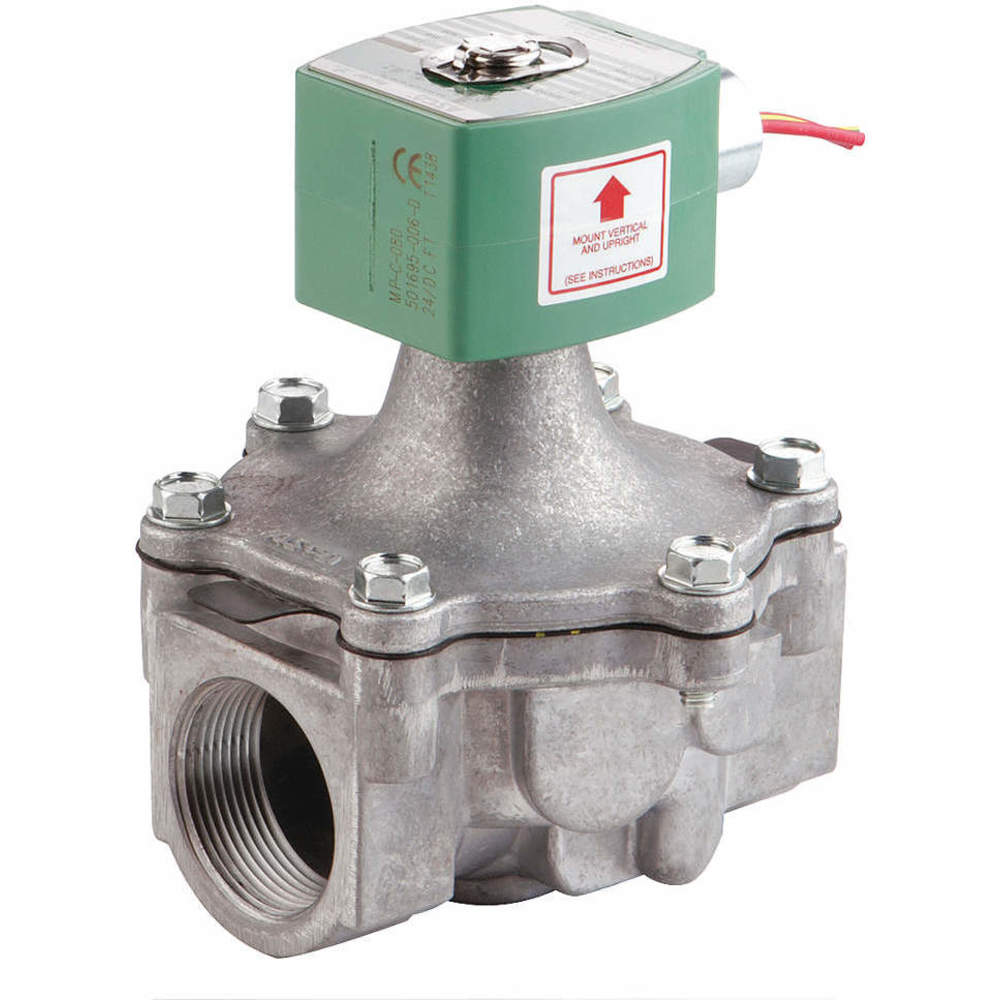

RED HAT 8215G080-24/DC Fuel Gas Solenoid Valve 2 Inch 60 cv 24VDC
Item: AH8KJJ
Model: 8215G080-24/DC
In Stock
Get it by ,
We deliver to your doorstep under DAP terms. Customs clearance is for your account
5.00% off
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Item | Fuel Gas Solenoid Valve |
|---|---|
| Ambient Temp. Range | +32°F to +77°F |
| Body Material | Aluminum |
| Center Line Pipe Center Size | 5.812" |
| Class | Class F |
| Coefficient Of Volume | 60 |
| Coefficient Of Volume (cv) | 60 |
| Coil Enclosure | General Purpose Junction Box And Watertight |
| Coil Insulation Class | F |
| Electrical Connections | 1/2" Conduit W/18" Leads |
| Environmental Protection | Indoor, Outdoor |
| For Media | Air, Inert Gases, Liquid Propane Gas, Natural Gas, Oxygen |
| Hz | 60 Hz |
| Includes Coil | Yes |
| Includes Seal | Yes |
| Inlet Connection Type | NPTF |
| Ip Rating | IP65 |
| Max. Ambient Temperature | 140°F |
| Max. Fluid Temp. | 104°F |
| Min. Ambient Temperature | 14°F |
| Min. Operating Pressure Differential | 0 psi |
| Nema Rating | NEMA 1, NEMA 2, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X |
|---|---|
| Operating Environment | Hazardous, Indoor, Outdoor |
| Operation Type | Direct Acting |
| Orifice Dia. | 2.094" |
| Orifice Diameter | 2 3/32" |
| Outlet Connection Type | NPTF |
| Overall Height | 7 5/16" |
| Overall Length | 6 1/8" |
| Overall Width | 6 13/32" |
| Pipe Size | 2" |
| Response Time | 120 ms |
| Seal Material | NBR |
| Type | Fuel Gas |
| Valve Configuration | Normally Closed |
| Valve Positions | 2 Position |
| Valve Type | High Flow |
| Valve Ways | 2-Way |
| Voltage | 24V DC |
| Wattage | 15.8 W |
| standard | CSA, FM, UL LISTED |
Product Details
- Solenoid Valve Product Group : Fuel Gas Solenoid Valve
- Max. Operating Pressure Differential Air/Inert Gas : 15 psi
- Max. Operating Pressure Differential Water : 15 psi
- Max. Operating Pressure Differential : 15 psi
Shipping Information
| height | 15.75 |
|---|---|
| length | 23.88 |
| width | 18.8 |
| country of origin | MX |
|---|---|
| weight | 2.835000 |
