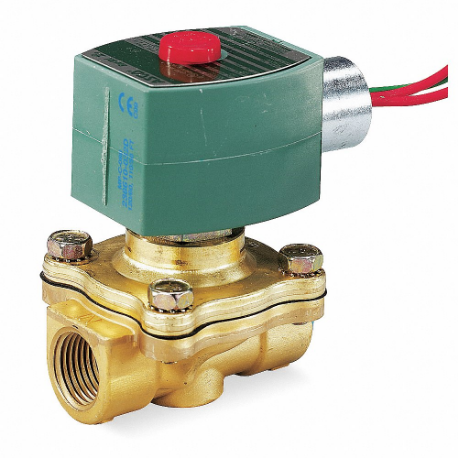

RED HAT 8210G095LF 12/DC Solenoid Valve, 3/4 Inch Pipe Size Valves, 12 Vdc, Brass
Item: CT8VLG
Model: 8210G095LF 12/DC
In Stock
Get it by ,
We deliver to your doorstep under DAP terms. Customs clearance is for your account
5.00% off
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Application | Air Compressors, Car Wash Equipment, Industrial Water Control, Laundry Equipment, Pumps |
|---|---|
| Body Material | Brass |
| Center Line Pipe Center Size | 3.438" |
| Coefficient Of Volume | 5 |
| Coil Enclosure | Watertight |
| Coil Insulation Class | F |
| Compliance | CSA, UL |
| Electrical Connections | 1/2" Conduit Hub |
| For Media | Air, Inert Gases, Light Oil, Water |
| Includes Coil | Yes |
| Includes Seal | Yes |
| Inlet Connection Type | NPTF |
| Ip Rating | IP66 |
| Lead Length | 16" |
| Max. Ambient Temperature | 140°F |
| Max. Fluid Temp. | 180°F |
| Max. Fluid Temperature | 180°F |
| Max. Operating Pressure Differential - Air/inert Gas | 40 psi |
| Max. Operating Pressure Differential - Light Oil | Not Rated |
| Max. Operating Pressure Differential - Steam | Not Rated |
| Max. Operating Pressure Differential - Water | 150 psi |
| Max. Operating Pressure Differential Air/inert Gas | 40 psi |
| Max. Operating Pressure Differential Light Oil | Not Rated |
| Max. Operating Pressure Differential Water | 4 psi |
| Min. Ambient Temperature | 14°F |
| Min. Operating Pressure Differential | 0 psi |
|---|---|
| Mounting Orientation | Vertical |
| Nema Rating | NEMA 1, NEMA 2, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X |
| Nominal Pipe Size | 3/4" |
| Operating Environment | Indoor, Outdoor |
| Operation | Pilot Operated |
| Operation Type | Pilot Operated |
| Orifice Dia. | 3/4" |
| Orifice Diameter | 3/4" |
| Outlet Connection Type | NPTF |
| Overall Height | 4 1/8" |
| Overall Length | 2 5/16" |
| Overall Width | 2 13/16" |
| Pipe Size | 3/4" |
| Response Time | 1 sec. |
| Seal Material | Nbr |
| Standard Logo | csa.png,ul.png , UL.png |
| Valve Configuration | Normally Closed |
| Valve Positions | 2 Position |
| Valve Type | High Flow |
| Valve Ways | 2-Way |
| Valve Ways And Positions | 2-Way/2-Position |
| Voltage | 12V DC |
| Wattage | 10.1 W |
Product Details
Solenoid Valve
Shipping Information
| height | 10.48 |
|---|---|
| length | 5.87 |
| width | 7.14 |
| country of origin | MX |
|---|---|
| weight | 1.080000 |
