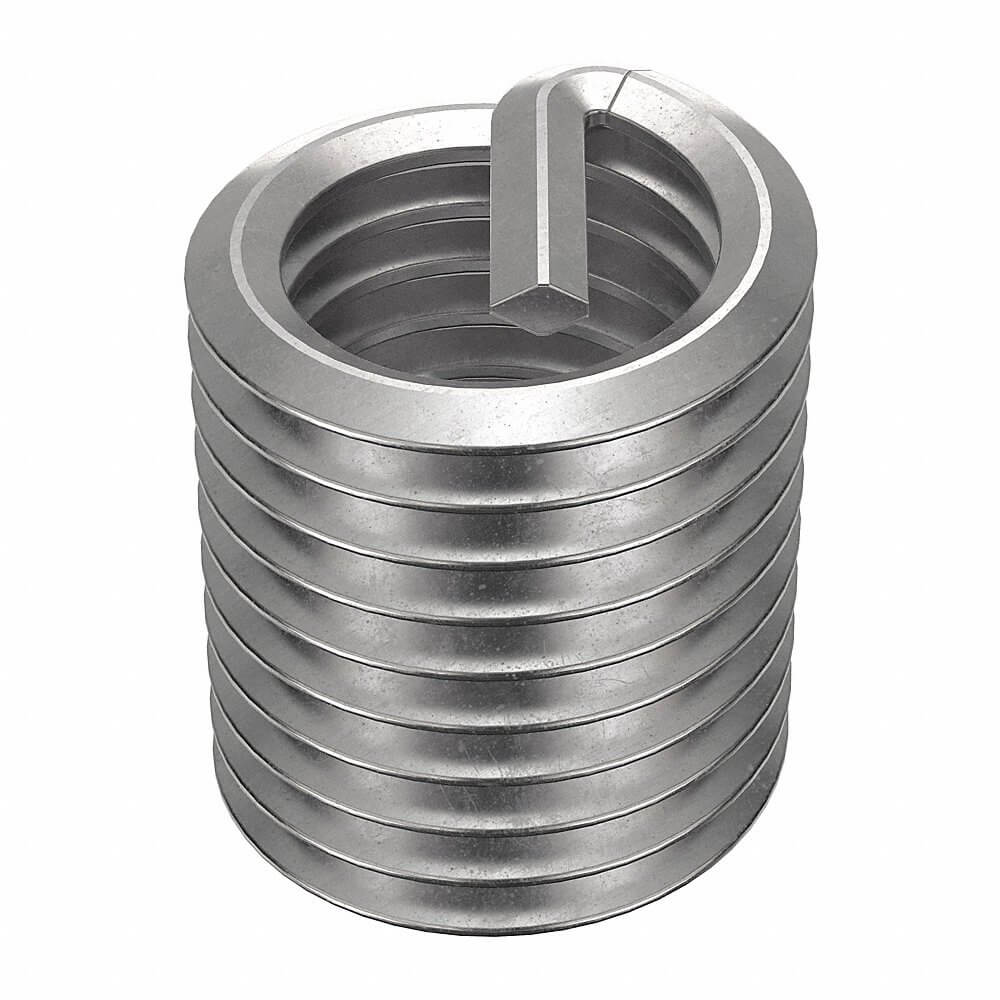

POWERCOIL 3520-18.00X1.5DSL Helical Insert, M18x2.5 Internal Thread Size, Gr. 304, 27 mm Lg., SS
Item: AE7DVQ
Model: 3520-18.00X1.5DSL
12 In Stock
Ships within 2 days via
5.00% off
£4.37/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Specifications
| Display Qty | 1 |
|---|---|
| Drill Bit Size | 0.74" |
| Drill Size | 18.8 mm |
| Finish | Plain |
| Free Coil Dia. | 22 mm |
| Free Coil Diameter | 21.9964 mm |
| Grade | 304 |
| Hardness | Rockwell C43-50 |
| Helical Insert Type | Screw Locking |
| Industry Standards | Ma3329-171 |
| Internal Thread Size | M18 x 2.5 |
| Length | 27 mm |
| Material | Stainless Steel |
| Material Grade/class | 18-8 |
|---|---|
| Maximum Hole Diameter | 15.2908 mm |
| Overall Length | 27 mm |
| Rockwell Hardness | C43-C50 |
| Series | Powercoil |
| Sti Tap Size | M18 x 2.5 |
| System Of Measurement | Metric |
| Tang Style | Tanged |
| Tensile Strength | 200000 psi |
| Thread Direction | Right Hand |
| Thread Size | M18 x 2.5 |
| Thread Type | Coarse |
| Type | Screw Locking |
Product Details
Shipping Information
| Height | 2.54 |
|---|---|
| Length | 5.08 |
| Width | 2.54 |
| HS Code | 7318290000 |
|---|---|
| Country Of Origin | GB |
| Weight | 0.013500 |
Related Products
| Style | Model | Drill Size | Free Coil Dia. | Thread Type | Internal Thread Size | Thread Direction | Hardness | Tensile Strength | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|
| A | 3532-2GX1.0DSL | #41 | 0.119" | Coarse | #2-56 | Right Hand | Rockwell C43-50 | 200000 psi | 7.00 | |
| B | 3532-2GX1.5DSL | #41 | 0.119" | Coarse | #2-56 | Right Hand | Rockwell C43-50 | 200000 psi | 8.19 | |
| C | 3532-4GX1.0DSL | #31 | 0.159" | Coarse | #4-40 | Right Hand | Rockwell C43-50 | 200000 psi | 6.03 | |
| D | 3532-4GX1.5DSL | #31 | 0.159" | Coarse | #4-40 | Right Hand | Rockwell C43-50 | 200000 psi | 5.33 | |
| E | 3532-4GX2.0DSL | #31 | 0.159" | Coarse | #4-40 | Right Hand | Rockwell C43-50 | 200000 psi | 8.36 | |
| F | 3532-5GX1.0DSL | #29 | 0.173" | Coarse | #5-40 | Right Hand | Rockwell C43-50 | 200000 psi | 4.31 | |
| G | 3532-5GX1.5DSL | #29 | 0.173" | Coarse | #5-40 | Right Hand | Rockwell C43-50 | 200000 psi | 6.92 |
