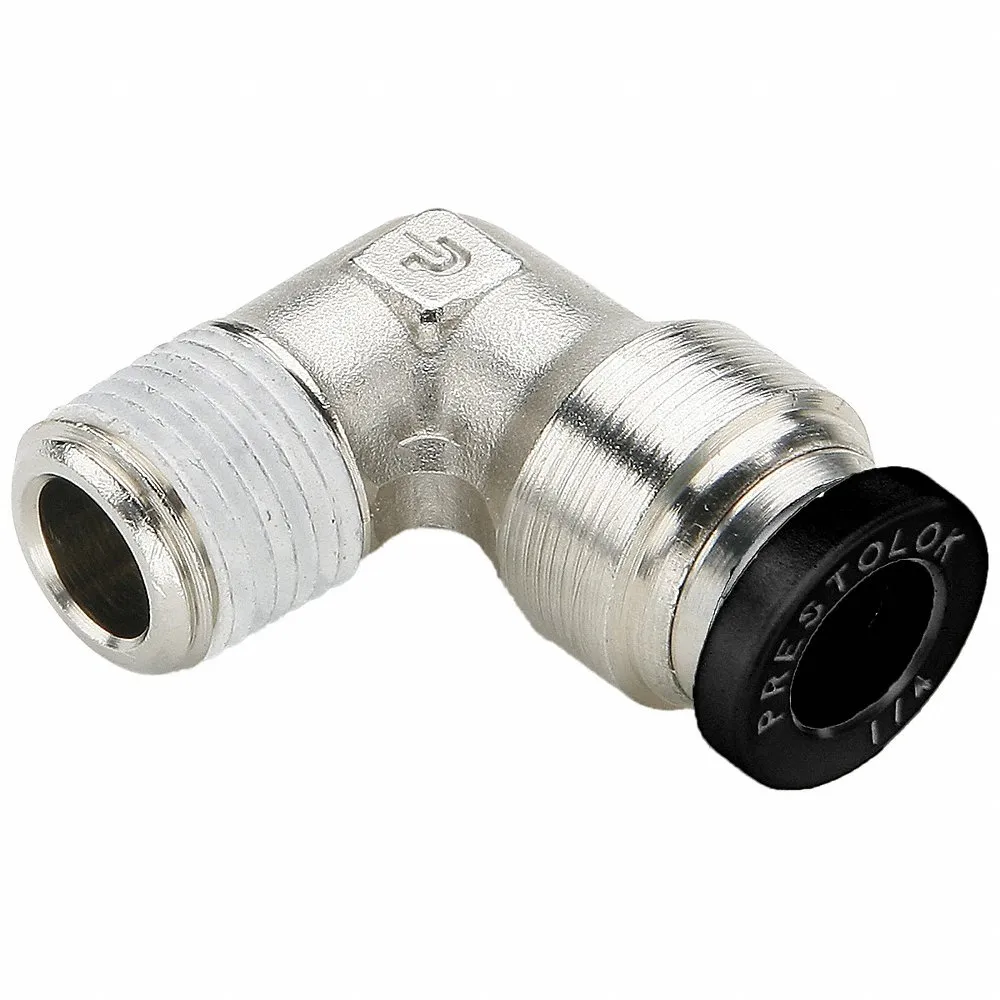

PARKER W169PLPNS-5/32-2 Push-to-Connect Elbow, Nickel Plated C37700 Brass, Push-to-Connect x MNPTF
Item: BT7LQD
Model: W169PLPNS-5/32-2
16 In Stock
Ships within 2 days via
5.00% off
£8.78/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Color | Silver |
|---|---|
| Compatible Tube Hardness | 90 Shore A, 95 Shore A |
| Compatible Tube Material | Polyethylene, Polypropylene, Polyurethane, Rigid Nylon, Semi-Rigid Nylon |
| Configuration Sub-type | Male Elbow 90° |
| Configuration Type | Tube To Male |
| Finish | Nickel Plated |
| Finish/coating | Nickel Plated |
| Fitting Material | Brass |
| Fitting Side A Connection Type | Push-To-Connect |
| Fitting Side A Pipe Size | 1/8" |
| Fitting Side A Tube Outer Diameter | 5/32" |
| Fitting Side B Connection Type | MNPTF |
| Fitting Side B Pipe Size | 1/8" |
| Includes Pre-applied Thread Sealant | Yes |
| Material | Brass |
| Material Grade | Grade C37700 |
| Maximum Operating Pressure | 300 psi |
| Maximum Operating Temperature | 200°F |
|---|---|
| Minimum Operating Temperature | 0°F |
| Outer Dia. 1 | 5/32" |
| Overall Length | 25/32" |
| Release Ring Color | Black |
| Release Ring Material | Nitrile Rubber |
| Release Type | Button |
| Resistance Properties | Chemical Resistant |
| Series | PRESTOLOK METAL INCH Series |
| Specific Fitting Angle | 90° |
| Specific Fitting Shape | Elbow |
| Standards | Ul94 V-0 |
| System Of Measurement | Imperial |
| Thread 1 Size | 1/8" |
| Thread 1 Type | NPT |
| Thread Sealant Type | White Acrylic |
| Vacuum Rating | 28 in. hg |
Product Details
Air, Automotive, Climate Control, End-Of-Arm Tooling, Factory Automation, Industrial, Inert Gases, Oil Lines, Packaging, Pneumatics, Robotic Welding, Robotics, Semi-Conductor, Textile, Vacuum Lines
Shipping Information
| height | 2.54 |
|---|---|
| length | 1.98 |
| width | 2.54 |
| country of origin | US |
|---|---|
| weight | 0.013500 |
