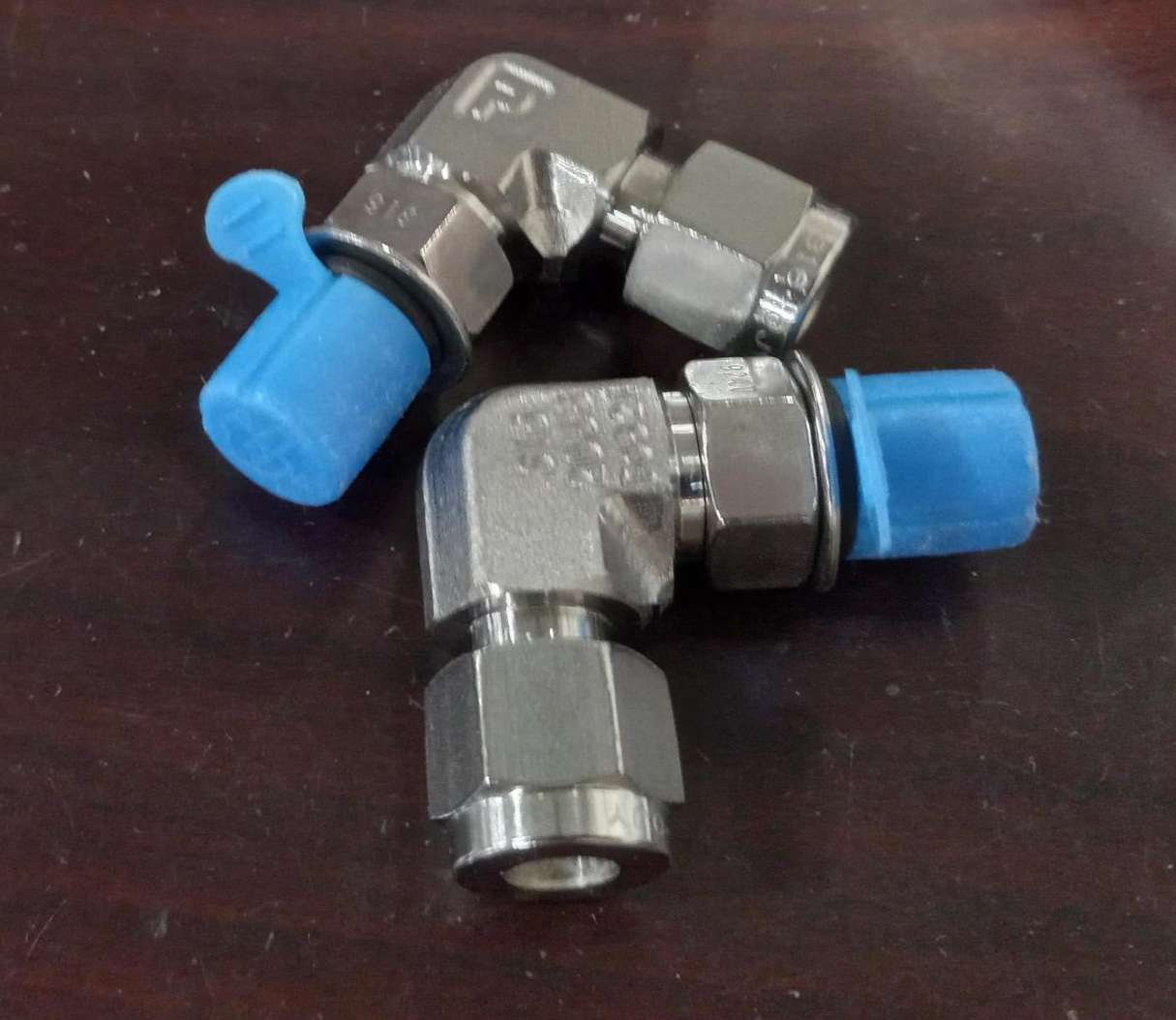

PARKER 4-4 C5BZ-SS Straight Elbow SS CPI x SAE Straight 1/4 Inch

Item: AG9NEP
Model: 4-4 C5BZ-SS
19 In Stock

Ships within 2 days via

£119.38
5.00% off
£113.4/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Specifications

Basic Pipe Fitting Material Metal
Basic Pipe Fitting Shape Elbow
Compatible Fitting Brands CPI
Compression Thread Size 1/4"
Configuration Sub-type Male Elbow Flareless, SAE
Configuration Type 90° Elbow
Connection Type CPI x Straight Thread
Diameter 1/4"
End 2 Type SAE
Ferrule Type Single
Fitting Material Stainless Steel
Fitting Side A Connection Type Compression
Fitting Side A Tube Outer Diameter 1/4"
Fitting Side B Connection Type Male SAE
Fitting Side B Pipe Size 1/4"
Hex Size 9/16"
Material Stainless Steel
Material Grade Grade 316
Max. Operating Pressure 10300 psi
Max. Pressure 10300 psi
Maximum Operating Temperature 1200°F
Minimum Operating Temperature 425°F
Overall Length 1 11/32"
Pipe Size 1/4"
Product Datasheet parker-4-4-c5bz-ss.pdf
Series CPI Series
Specific Fitting Angle 90°
Specific Fitting Shape Elbow Adapter
Specific Pipe Fitting Shape Elbow
System Of Measurement Inch
Temp. Range -425°F to +1200°F
Thread Size A 7/16"-20
Thread Size B 7/16"-20
Tube Fitting Material Stainless Steel
Tube Fitting/adapter Type Bite Type, CPI Single Ferrule Flareless
Tube Size 1/4"
standard ASME SA-213, ASTM A213, ASTM A249, ASTM A269, MIL-T-8504, MIL-T-8506

Product Details

Shipping Information

Height 1.43
Length 3.41
Width 1.43
Country Of Origin US
Weight 0.054000
