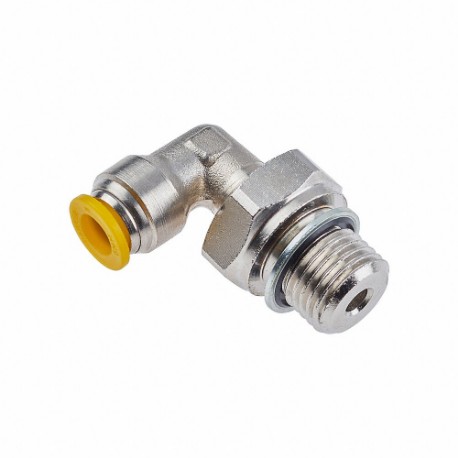

PARKER 169PLP-6M-6G Metric Metal Push-to-Connect Fitting, Nickel Plated Brass, Push-to-Connect x BSPP
Item: CT7JLD
Model: 169PLP-6M-6G
In Stock
Get it by ,
We deliver to your doorstep under DAP terms. Customs clearance is for your account
5.00% off
₹20.210000
(ex. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Application | Air, Cooling |
|---|---|
| Color | Silver |
| Compatible Tube Hardness | 95 Shore A |
| Compatible Tube Material | Nylon N, Nylon NR, Polyethylene, Polyethylene HDPE, Polyethylene PEFR, Polypropylene, Polypropylene Block Copolymer, Polyurethane |
| Finish, Coating | Nickel Plated |
| Fitting Material | Brass |
| Fitting Side A Connection Type | Push To Connect |
| Fitting Side A Tube Outer Diameter | 6 mm |
| Fitting Side B Connection Type | BSPP |
| Fitting Side B Pipe Size | 0.375 mm |
| Fitting Thread Size | 3/8" |
| Includes Pre-applied Thread Sealant | No |
| Length | 19.125 mm |
| Material | Brass |
| Max. Operating Pressure | 300 psi |
|---|---|
| Max. Operating Temp. | 200°F |
| Min. Operating Temp. | 0°F |
| Overall Length | 19.125 mm |
| Release Ring Material | Stainless Steel |
| Release Type | Ring |
| Resistance Properties | Corrsion Resistant, Mechanical Resistant |
| Specific Fitting Angle | 90° |
| Specific Fitting Shape | Elbow Adapter |
| Standard Logo | fda.png,rohs.png |
| Sub-brand | Prestolok |
| System Of Measurement | Metric |
| standard | FDA, ROHS |
Product Details
Fitting
Shipping Information
| height | 2.54 |
|---|---|
| length | 1.91 |
| width | 2.54 |
| country of origin | US |
|---|---|
| weight | 0.063000 |
Related Products
| Style | Model | Compatible Tube Hardness | Fitting Side B Connection Type | Overall Length | Specific Fitting Shape | Fitting Side B Tube Outer Diameter | Fitting Thread Size | Fitting Side C Connection Type | Fitting Side C Pipe Size | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 171PLP-12M-8G | 90 Shore A, 95 Shore A | Push To Connect | 29.15625 mm | TEE | 12 mm | 1/2" | BSPP | 1/2" | 58.13 | |
| B | W172PLP-4M-2R | 90 Shore A, 95 Shore A | Push To Connect | 19.0625 mm | TEE | 4 mm | 1/8" | BSPT | 1/8" | 21.23 | |
| C | 172PLP-12M-4G | 90 Shore A, 95 Shore A | Push To Connect | 27 mm | TEE | 12 mm | 1/4" | BSPP | 1/4" | 42.74 | |
| D | 62PLPBH-12M | 95 Shore A | Push To Connect | 50.9375 mm | Bulkhead Union | 12 mm | - | - | - | 46.44 | |
| E | W171PLP-10M-4R | 90 Shore A, 95 Shore A | Push To Connect | - | TEE | 10 mm | - | BSPT | 1/4" | 42.64 | |
| E | W171PLP-6M-4R | 90 Shore A, 95 Shore A | Push To Connect | 20.90625 mm | TEE | 6 mm | 1/4" | BSPT | 1/4" | 17.43 | |
| F | 171PLP-6M-4G | 90 Shore A, 95 Shore A | Push To Connect | 20.90625 mm | TEE | 6 mm | 1/4" | BSPP | 1/4" | 17.43 |
