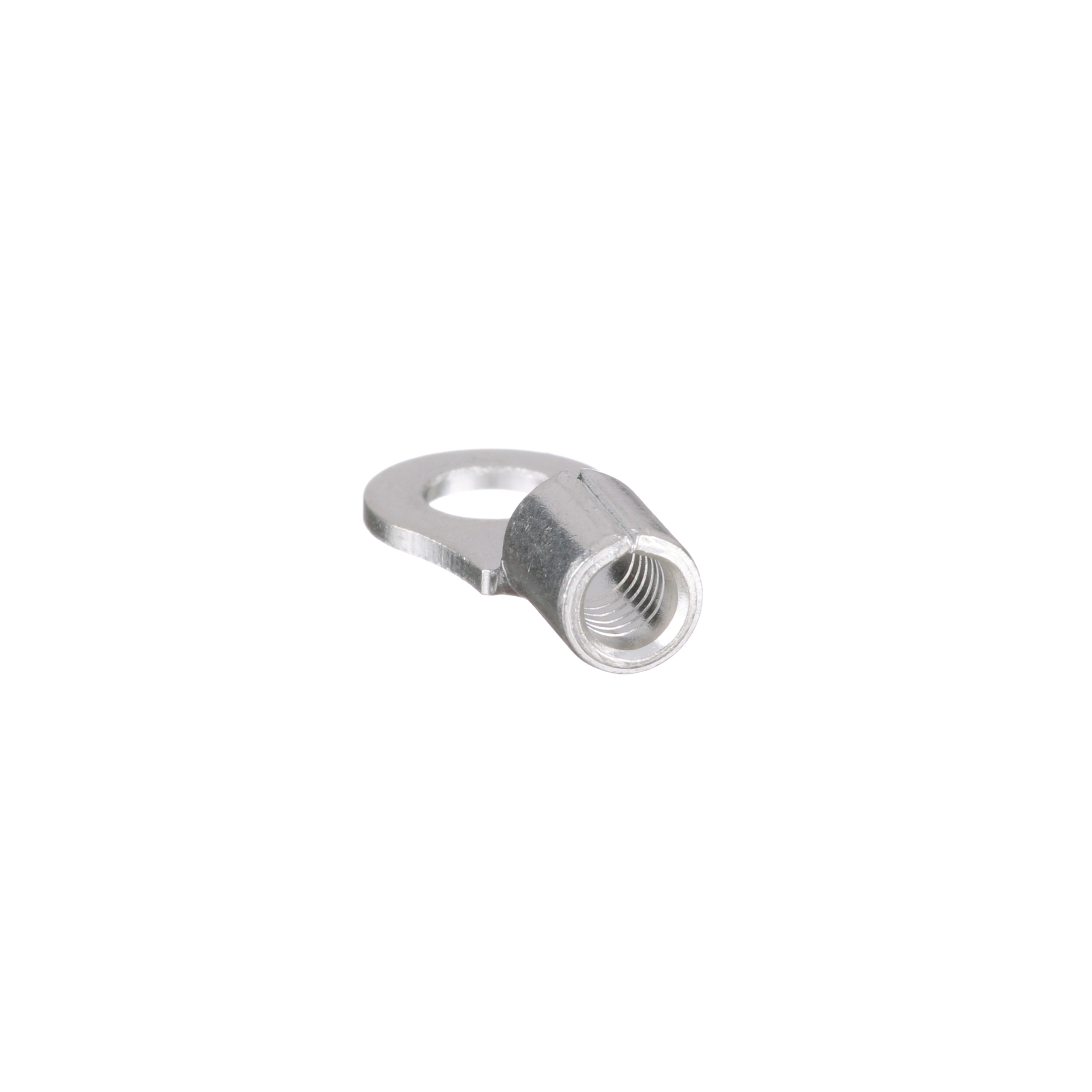

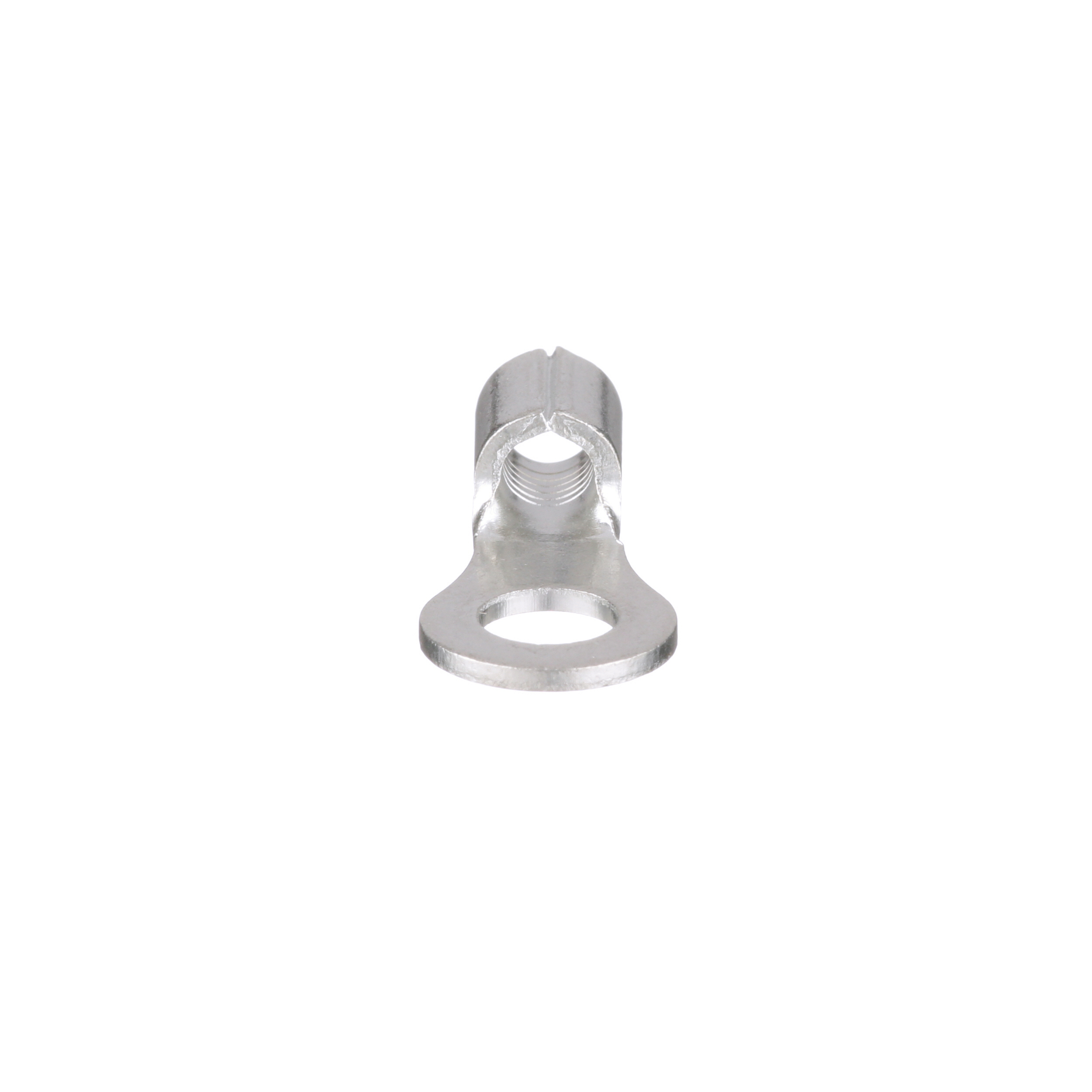

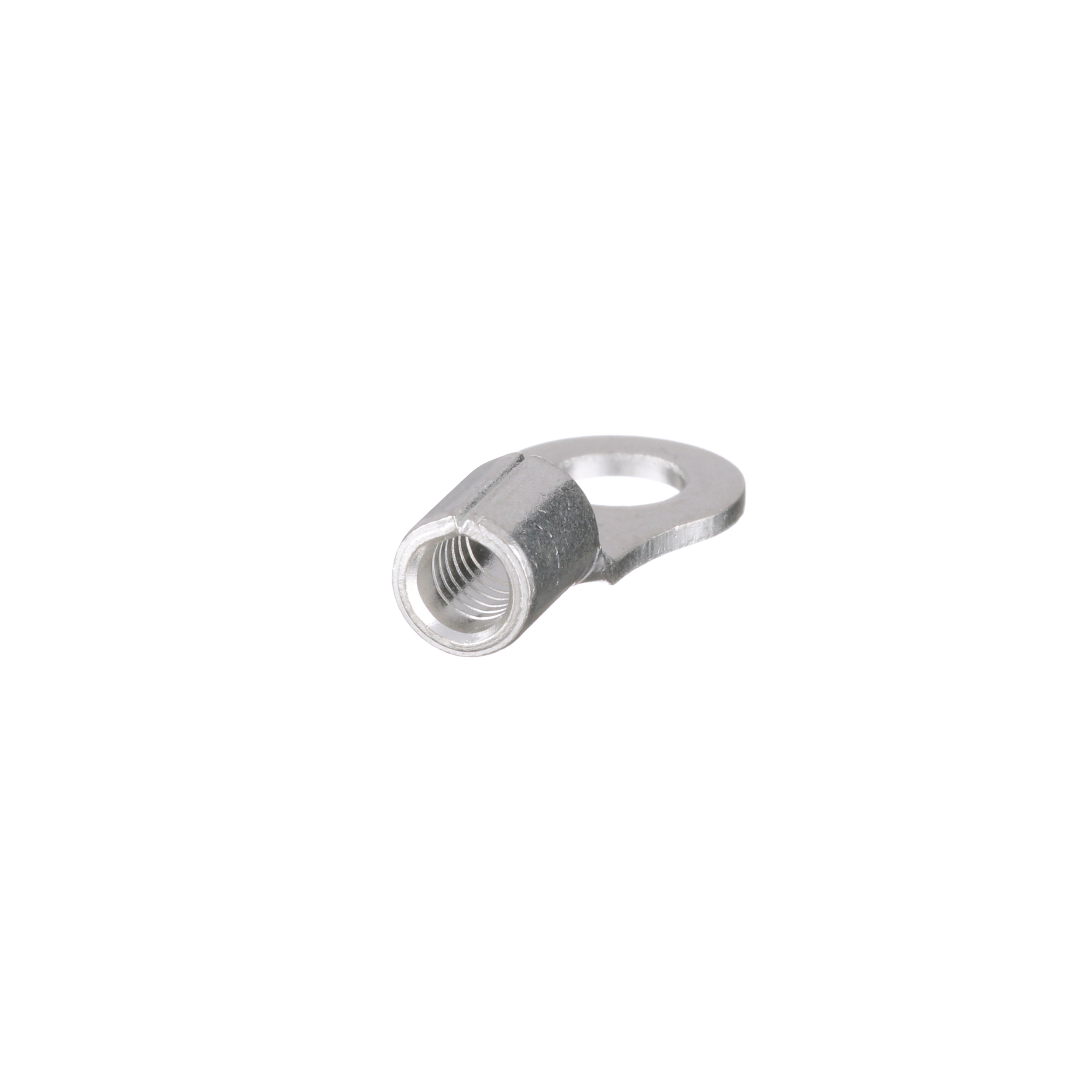

PANDUIT P10-10R-L Ring Term Bare #10 0.810 Inch, 50PK

Item: AH8XYD
Model: P10-10R-L
In Stock

Get it by ,

We deliver to your doorstep under DAP terms. Customs clearance is for your account

£66.66
5.00% off
₹66.660000 (ex. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Barrel Inside Dia. 0.13"
Barrel Inside Diameter 0.13"
Barrel Outside Diameter 0.22"
Barrel Size Standard
Barrel Style Serrated Barrel
Barrel Type Standard
Base Material Copper
Connection Material Copper
Connection Type Crimp
Connector Plating Tin
Contact Finish Tin
Contact Material Copper
Features Brazed Seam
Finish/coating Tin Plated
For Use With Ct-100, Ct-200, Ct-1570, Ct-1701, Ct-2300, St (Cd-550), Ct-2500, L (Ct-2570Ch), Up14Zlw (Cd-570)
Hole Dia. 1/5"
Inside Diameter 0.13"
Insulation Color Bare
Insulation Material Non Insulated
Insulation Type Non Insulated
Length 0.81"
Max. Temp. 302°F
Max. Voltage 2000V
Maximum Copper Conductor Size 10 AWG
Maximum Metric Conductor Size 6 sq. mm
Maximum Wire Size 10 AWG
Min. Wire Size 14 AWG
Minimum Copper Conductor Size #14 AWG
Minimum Metric Conductor Size 2.5 sq. mm
Minimum Wire Size #14 AWG, 14 AWG
Outer Diameter 0.22"
Overall Length 0.81"
Packaging Type Bottle
Product Material Copper
Product Type Ring Terminal
Seam Brazed
Seam Style Brazed
Seam Type Brazed
Special Features Ring Tongue Design Assures A Secure Connection In High Vibration Applications
Strip Length 1/4"
Stud Hole Size 10"
Stud Size #10
Terminal Connection Crimp
Terminal Connection Type Crimp
Terminal Shape Ring Terminal
Termination Crimp Termination Only
Termination Style Crimp
Tongue Thickness 0.04"
Tongue Width 0.38"
Width 0.38"
Wire Strip Length 9/32"
Barrel Outside Dia. 0.22"
Combo For Heat Shrink None, Non-Insulated
compatible with mfr. model no. CT-100, CT-1570, CT-1701, CT-200, CT-2300/ST, CT-2500/L, UP14ZLW
Finish Tin Plated
For Wire Size 10 AWG, 12 AWG, 14 AWG
Height 91.44 mm
Inside Dia. 3.3 mm
Insulation None
Insulation Coverage None
Material Copper
Max. Copper Conductor Size #10 AWG
Max. Metric Conductor Size 6 sq. mm
Max. Wire Size 10 AWG
Min. Conductor Size 2.5 sq. mm
Min. Copper Conductor Size #14 AWG
Overall Width 9.7 mm
Ring Width Ranges 0.26" to 1/2"
standard CSA C22.2 NO. 65, UL 486A, UL 486B
Terminal Type Ring Tongue
ul standard UL 486A-486B
Wire Range 14 AWG to 10 AWG

Product Details

Ring Terminal

Shipping Information

height 9.4
length 2.06
width 2.06
country of origin US
weight 0.090000
