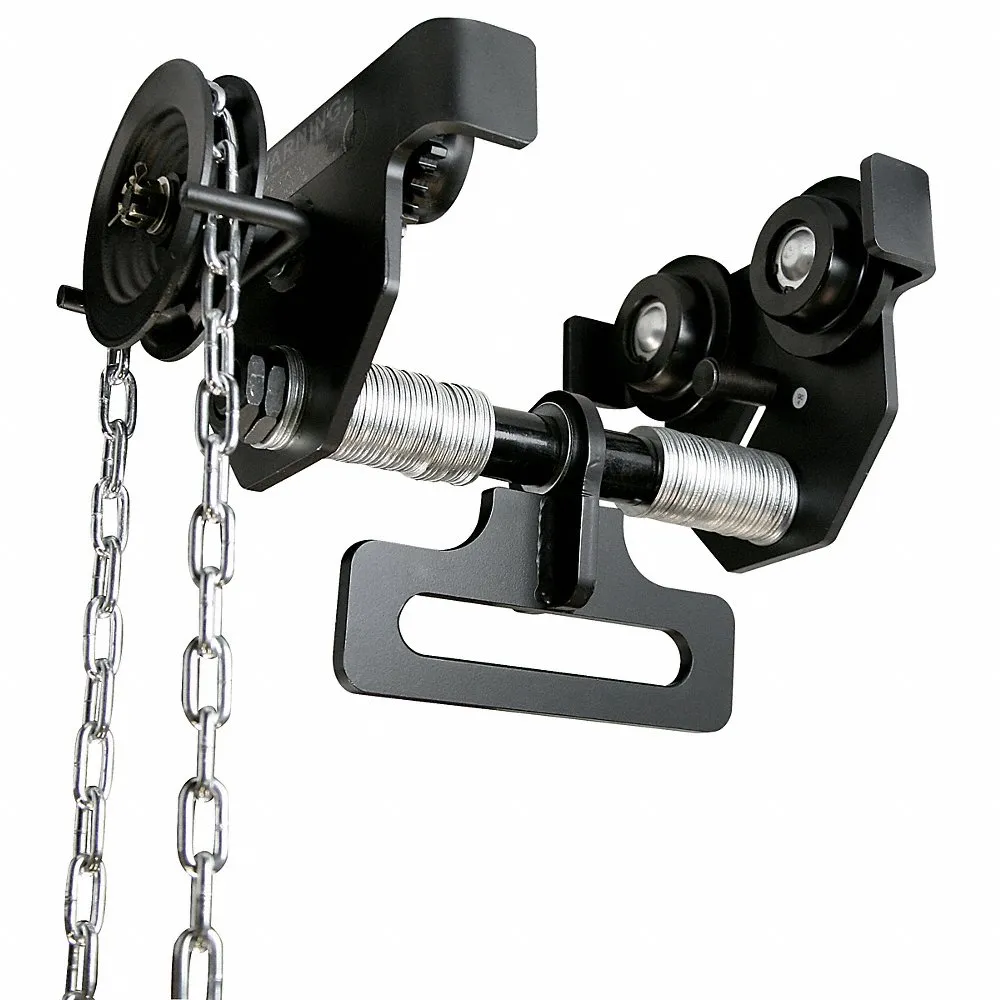

OZ LIFTING PRODUCTS OZGBT-OBH Geared Trolley, Geared, 1000 lb. Max Hoist Load Capacity
Item: CW8LDA
Model: OZGBT-OBH
In Stock
Get it by Thursday, Apr 16
5.00% off
£650.35/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| For Beam Shape | Flat, Tapered |
|---|---|
| For Maximum Beam Flange Width | 8" |
| For Minimum Beam Flange Width | 2 17/32" |
| For Minimum Beam Height | 2 15/32" |
| Head Room To Connecting Shaft | 1 1/2" |
| Head Room To Mounting Point | 4 29/32" |
| Max Hoist Load Capacity | 1000 lbs. |
|---|---|
| Minimum Radius Curve | 3 9/32" |
| Trolley Frame Material | Steel |
| Trolley Type | Geared |
| Trolley Wheel Diameter | 3 1/2" |
| Trolley Wheel Material | Steel |
Product Details
2 17/32" to 8"
Shipping Information
| height | 20.32 |
|---|---|
| length | 38.1 |
| width | 27.94 |
| country of origin | CN |
|---|---|
| weight | 14.400000 |
