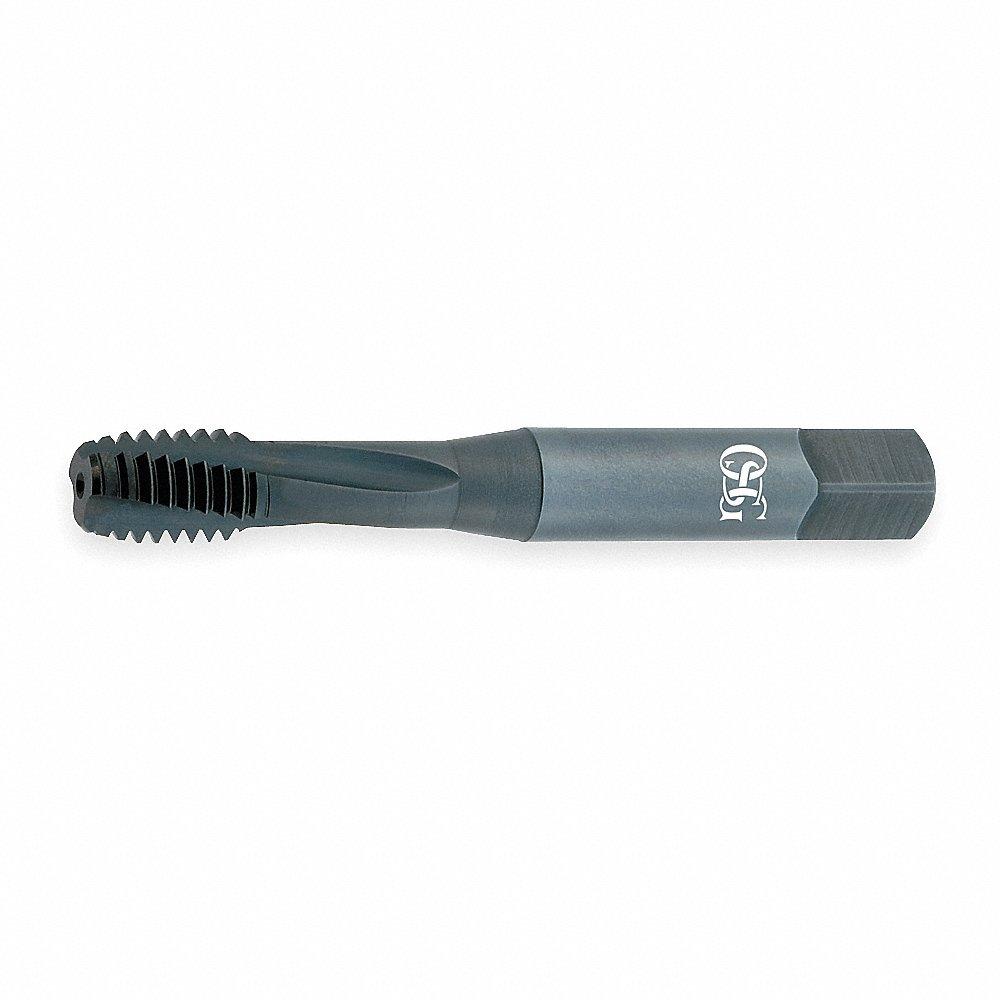

OSG 1719901 Spiral Flute Tap, 1/4-28 Thread Size, 15/16 Inch Thread Lg, Black Oxide, H5, Modified Bottoming
Item: CT6LVN
Model: 1719901
In Stock
Get it by Tuesday, Apr 14
We deliver to your doorstep under DAP terms. Customs clearance is for your account
5.00% off
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| 55% Thread Drill Size | I |
|---|---|
| 65% Thread Drill Size | 17/64" |
| 75% Thread Drill Size | 5.45 |
| Coolant Fed | Non Coolant Through |
| Drill Bit Size | 0.2129", 0.2152", 0.2175", 0.2198", 0.2222" |
| Extended Neck | Yes |
| Helix Angle | 10° |
| Material Grade - Machining | Grade VC-10 |
| Measurement System | Fractional Inch |
| Number Of Flutes | 3 |
| Overall Length | 2 9/16" |
| Primary Material Application | Nickel, Titanium |
| Primary Material Application Iso Code | S |
| Secondary Material Application | Hardened Steel, Nickel, Stainless Steel, Titanium |
| Secondary Material Application Iso Code | H, M, S3 |
| Shank Dia. | 1/4" |
| Shank Length | 1 9/16" |
| Shank Type - Machining | Straight |
|---|---|
| Square Size | 0.19" |
| Standard Logo | ANSI.png |
| System Of Measurement | Imperial |
| Tap Chamfer | Modified Bottoming |
| Tap Finish | Black Oxide |
| Tap Material | Powdered Metal |
| Tap Shank Standard | ANSI |
| Tap Style | Spiral Flute |
| Tap Thread Size | 5/16"-18 |
| Tap Type | Spiral Flute |
| Thread Direction | Right Hand |
| Thread Length | 15/16" |
| Thread Limit | H5 |
| Thread Limit/class Of Fit | H5 |
| Thread Standard | Fine |
| Threads Per Inch | 18 |
Product Details
Spiral Flute Tap
Shipping Information
| height | 2.54 |
|---|---|
| length | 3.65 |
| width | 2.54 |
| country of origin | JP |
|---|---|
| weight | 0.029200 |
Related Products
| Style | Model | Number Of Flutes | Overall Length | Thread Size | Tap Finish | Thread Limit | 75% Thread Drill Size | Shank Dia. | Tap Type | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 1430105 | 3 | 2 1/2" | 1/4"-20 | Tin | H3 | #7 | 1/4" | Bottoming | 40.11 | |
| B | 1645514207 | 3 | 110 mm | M14 x 2 | Tin | D7 | 12 mm | 10.89 mm | Modified Bottom | 226.91 | |
| B | 1645516205 | 3 | 110 mm | M16 x 2 | Tin | D5 | 14 mm | 12.19 mm | Modified Bottom | 251.89 | |
| B | 1645516207 | 3 | 110 mm | M16 x 2 | Tin | D7 | 14 mm | 12.19 mm | Modified Bottom | 251.89 | |
| B | 1645518257 | 4 | 125 mm | M18 x 2.5 | Tin | D7 | 16.5 | 13.76 mm | Modified Bottom | 348.67 | |
| C | 0142008 | 2 | 2" | #6-32 | TiCN | H4 | #36 | 9/64" | Bottoming | 60.06 | |
| C | 0142108 | 2 | 2 1/8" | - | - | - | - | 0.168" | Bottoming | 60.06 |
