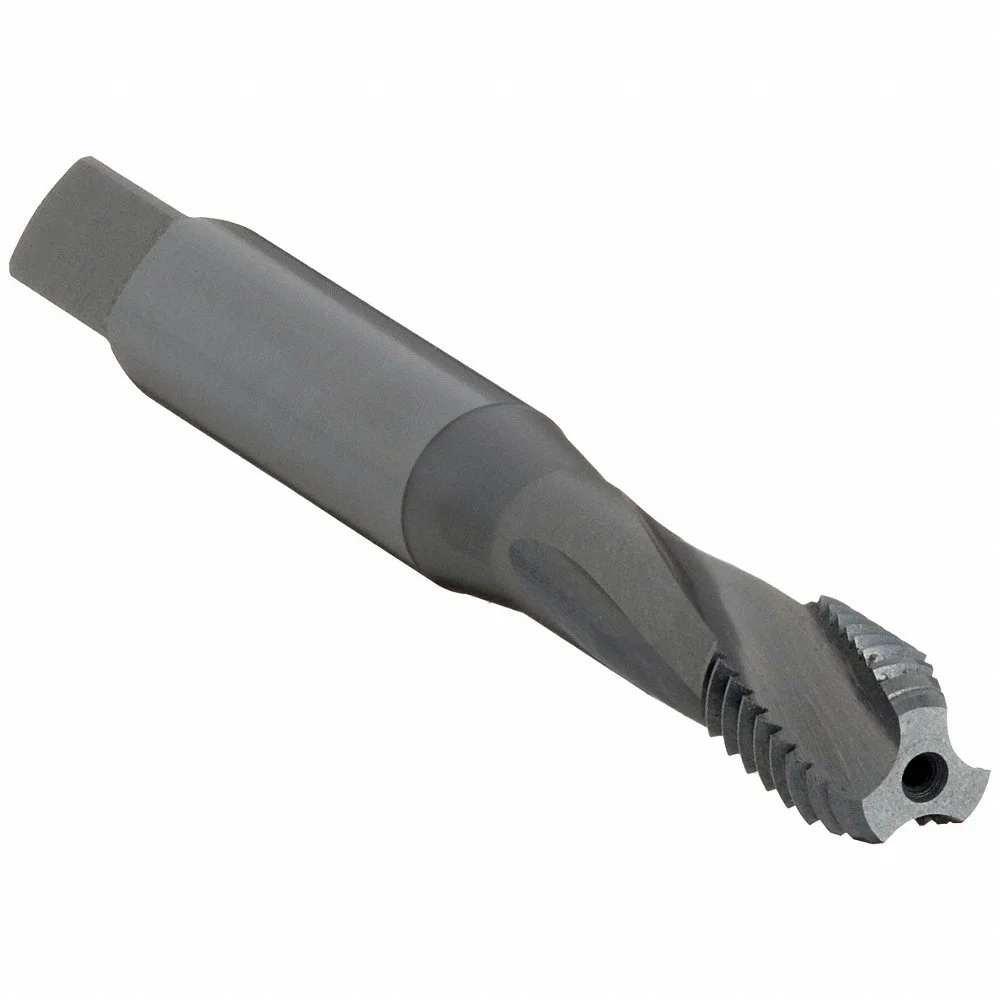

OSG 1705901 Spiral Flute Tap, M8X1.25 Thread Size, 10 mm Thread Length, 69 mm Length, Right Hand, D5
Item: CT6MZL
Model: 1705901
In Stock
Get it by Tuesday, Apr 14
We deliver to your doorstep under DAP terms. Customs clearance is for your account
5.00% off
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| 55% Thread Drill Size | 7.1 mm |
|---|---|
| 65% Thread Drill Size | I |
| 75% Thread Drill Size | H |
| Coolant Fed | Non Coolant Through |
| Drill Bit Size | 6.70 mm, 6.78 mm, 6.86 mm, 6.94 mm, 7.03 mm |
| Extended Neck | No |
| Finish | Black Oxide |
| Grade | Grade 345 |
| Helix Angle | 15° |
| Material Grade - Machining | Grade 345 |
| Number Of Flutes | 3 |
| Overall Length | 69 mm |
| Primary Material Application | Hardened Steel, Stainless Steel, Steel |
| Primary Material Application Iso Code | H, M, P3 |
| Secondary Material Application | Hardened Steel, Nickel, Stainless Steel, Steel, Titanium |
| Secondary Material Application Iso Code | H, M, P, S |
| Shank Dia. | 8.07 mm |
| Shank Length | 40 mm |
|---|---|
| Shank Type | Straight |
| Shank Type - Machining | Straight |
| Square Size | 6.05 mm |
| Standard Logo | ANSI.png |
| System Of Measurement | Metric |
| Tap Chamfer | Modified Bottoming |
| Tap Finish | Black Oxide |
| Tap Material | Powdered Metal |
| Tap Style | Spiral Flute |
| Tap Thread Size | M8 x 1.25 |
| Tap Type | Spiral Flute |
| Thread Direction | Right Hand |
| Thread Length | 10 mm |
| Thread Limit/class Of Fit | D5 |
| Thread Pitch | 1.25 mm |
| Thread Standard | Metric Coarse |
Product Details
Spiral Flute Tap
Shipping Information
| height | 2.54 |
|---|---|
| length | 6.9 |
| width | 2.54 |
| country of origin | BR |
|---|---|
| weight | 0.027000 |
Related Products
| Style | Model | Number Of Flutes | Overall Length | Thread Size | Tap Finish | Thread Limit | 75% Thread Drill Size | Shank Dia. | Tap Type | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 1430105 | 3 | 2 1/2" | 1/4"-20 | Tin | H3 | #7 | 1/4" | Bottoming | 40.11 | |
| B | 1645514207 | 3 | 110 mm | M14 x 2 | Tin | D7 | 12 mm | 10.89 mm | Modified Bottom | 226.91 | |
| B | 1645516205 | 3 | 110 mm | M16 x 2 | Tin | D5 | 14 mm | 12.19 mm | Modified Bottom | 251.89 | |
| B | 1645516207 | 3 | 110 mm | M16 x 2 | Tin | D7 | 14 mm | 12.19 mm | Modified Bottom | 251.89 | |
| B | 1645518257 | 4 | 125 mm | M18 x 2.5 | Tin | D7 | 16.5 | 13.76 mm | Modified Bottom | 348.67 | |
| C | 0142008 | 2 | 2" | #6-32 | TiCN | H4 | #36 | 9/64" | Bottoming | 60.06 | |
| C | 0142108 | 2 | 2 1/8" | - | - | - | - | 0.168" | Bottoming | 60.06 |
