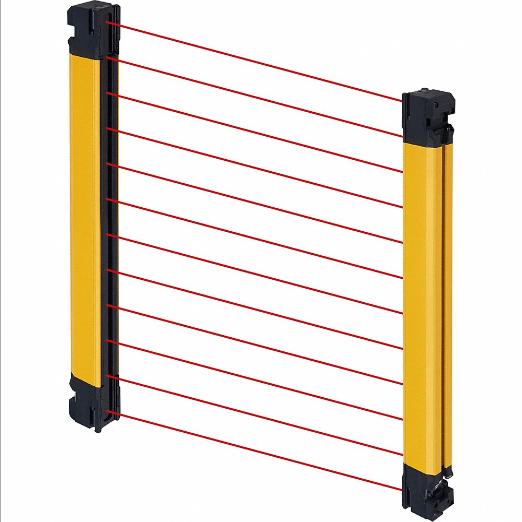

OMRON F3SG-4SRA0440-25-F Light Curtain, 17.32 Inch Protected Height, 65.6 Feet Max. Sensing Distance

Item: CN2TDZ
Model: F3SG-4SRA0440-25-F
18 In Stock

Ships within 2 days via

£2919.89
5.00% off
£2773.9/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Specifications

Ac Voltage Rating Not Rated
Auxiliary Contact Rating 100 MA @ 24V DC
Auxiliary Output Circuit Type NPN And PNP
Beam Spacing 20 mm
Cable Length No Cable
Dc Voltage Rating 24V DC
Depth 1 1/2"
Display Qty 1
Housing Material Aluminum
Includes End Cap
Ip Rating IP67
Max. Sensing Distance 65.6 ft.
Maximum Response Time 13 ms
Nema Rating Not Rated
Number Of Aux. Outputs 1
Number Of Beams 22
Operating Temperature - Maximum 131°F
Operating Temperature - Minimum -22°F
Overall Depth 1.5"
Overall Height 17 8/25"
Overall Width 1 21/25"
Protected Height 440 mm
Receiver Electrical Connection M12
Receiver No. Of Pins 8
Reset Type Pre Reset
Response Time - Minimum 8 ms
Safety Output Ratings 300 mA @ 24V DC
Sensing Distance - Maximum 20m
Series F3SG-SRA Series
Transmitter Electrical Connection M12
Transmitter Number Of Pins 5
Type Of Light 870 N-m IR LED
Width 1.26"
standard EN ISO 13849-1:2015, IEC 61496-1, IEC 61508, IEC 61508-2

Product Details

Shipping Information

Height 43.99
Length 3.81
Width 3.2
Country Of Origin JP
Weight 1.800000
