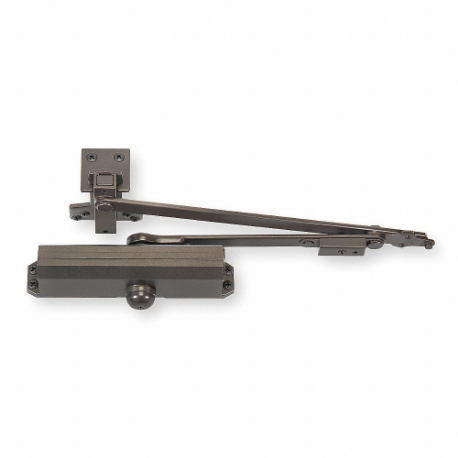

NORTON ABRASIVES UNI1601H X 690 Door Closer, Hold Open, Non-Handed, 9 3/4 Inch Housing Lg, 2 7/8 Inch Housing Dp

Item: CT4EAE
Model: UNI1601H X 690
17 In Stock

Ships within 2 days via

£626.29
5.00% off
£594.97/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Ada Compliant Yes
Arm Material Die Cast Aluminum
Arm Type Parallel
Closer Cycles 25000000
Closer Mounting Style Top Frame
Closer Mounting Type Parallel
Closer Series 1600 Series
Closer Type Hold Open
Color Dark Bronze
Door Opening - Minimum 85°
Door Weight - Maximum 250 lbs.
Door Width Campatibility 48"
Energy Source Hydraulic
Exterior Door Width 48"
Exterior Door Width - Maximum 48"
Features Staked Valves, Tri Packed
Finish Dark Bronze Paint
Fire Rating 3 hrs.
Hand Orientation Non Handed
Height Between Mounting Holes 3/4"
Housing Depth 2 7/8"
Housing Height 2 5/8"
Housing Length 9 3/4"
Hydraulic/pneumatic Hydraulic
Includes Rack And Pinion Design
Includes Hardware Hardware Not Included
Interior / Exterior Interior And Exterior
Interior Door Width 48"
Length Between Mounting Holes 9 1/16"
Ligature Resistance Not Ligature Resistant
Ligature Resistant No
Location Use Interior/Exterior
Manual/automatic Manual
Material Aluminum
Max Door Opening Angle 110°
Max. Door Opening 110°
Mounting Hardware Not Included
Operation Style Manual
Performance Rating Grade 1 Heavy Duty
Product Type Door Closer
Projection 2 7/8"
Spring Size 6
Spring Size - Minimum 1
Spring Type Adjustable
Standard Logo ansi.png,cul.png,ul.png
Ul Fire Rating UL10C
standard ANSI/BHMA A117.1, ANSI/BHMA A156.4, UL AND CUL LISTED

Product Details

Door Closer

Shipping Information

height 2.54
length 2.54
width 2.54
country of origin US
weight 4.072500
