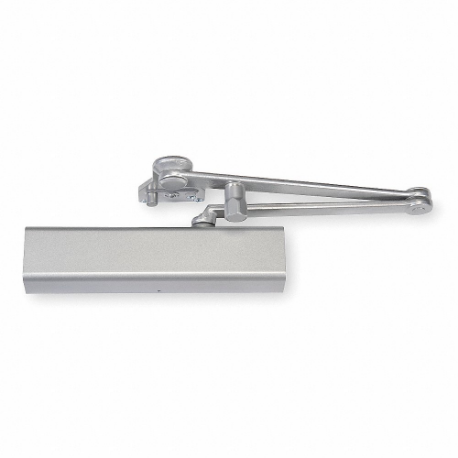

NORTON ABRASIVES CLP8501-T x 689 Door Closer, Hold Open, Non-Handed, 13 Inch Housing Lg, 2 1/8 Inch Housing Dp

Item: CT4DZQ
Model: CLP8501-T x 689
23 In Stock

Ships within 2 days via

£510.22
5.00% off
£484.7/unit (Inc. VAT)
Trade Prices Available
Request Quote

Payment

Specifications

Ada Compliant Yes
Arm Material Die Cast Aluminum
Arm Type Parallel
Closer Cycles 25000000
Closer Mounting Style Top Frame
Closer Mounting Type Parallel
Closer Series 8000 Series
Closer Type Hold Open
Color Gray
Door Weight - Maximum 250 lbs.
Door Width Campatibility 48"
Energy Source Hydraulic
Exterior Door Width 48"
Exterior Door Width - Maximum 48"
Features Staked Valves, Tri Packed
Finish Aluminum Painted
Fire Rating 3 hrs.
Hand Orientation Non Handed
Height Between Mounting Holes 3/4"
Housing Depth 2 1/8"
Housing Height 2 7/8"
Housing Length 13"
Hydraulic/pneumatic Hydraulic
Includes Plastic Cover
Includes Hardware Hardware Included
Interior / Exterior Interior And Exterior
Interior Door Width 48"
Length Between Mounting Holes 12"
Ligature Resistance Not Ligature Resistant
Ligature Resistant No
Location Use Interior/Exterior
Manual/automatic Manual
Material Aluminum
Max Door Opening Angle 110°
Max. Door Opening 110°
Mounting Hardware Included
Operation Style Manual
Performance Rating Grade 1 Heavy Duty
Product Type Door Closer
Projection 2 1/8"
Spring Size 6
Spring Size - Minimum 1
Spring Type Adjustable
Ul Fire Rating UL10C
standard ANSI/BHMA A117.1, ANSI/BHMA A156.4, UL AND CUL LISTED

Product Details

Shipping Information

Height 2.54
Length 2.54
Width 2.54
Country Of Origin US
Weight 4.747500
