| Anchor Dia. | 1 1/4" |
|---|---|
| Anchor Diameter | 1 1/4" |
| Anchor Length | 9" |
| Compatible Material | Concrete |
| Display Qty | 5 |
| Drill Bit Size | 1 1/4" |
| Finish | Zinc Yellow |
| Grade | Grade 2 |
| Icc Approved For Cracked Concrete | No |
| Icc Approved For Un-cracked Concrete | Yes |
| Includes | Nut And Washer |
| Industry Standards | Fm Approved, Icc Esr-3782 C-Stl, Zp 1/4" Ss, Rohs Compliant Except For Grade 5, Ul Listed |
| Material | Steel |
| Material Grade/class | Grade 5 |
| Max. Work Thickness | 1 1/4" |
| Maximum Installation Torque | 350 lbs.-ft. |
| Maximum Material Thickness | 1 1/4" |
| Maximum Ultimate Shear Strength | 33000 lbs. |
|---|---|
| Maximum Ultimate Tension Strength | 23090 lbs. |
| Min. Embedment | 6 1/2" |
| Minimum Installation Depth | 6 1/2" |
| Minimum Installation Torque | 200 lbs.-ft. |
| Minimum Material Thickness | 7" |
| Nut Width | 1.875" |
| Overall Length | 9" |
| Seismic Approved | No |
| System Of Measurement | Imperial |
| Thread Length | 3 1/4" |
| Ultimate Shear | 33000 lbs. |
| Ultimate Shear Strength (4,000 Psi Concrete) | 33000 lbs. |
| Ultimate Tension | 23090 lbs. |
| Ultimate Tension In 4000 Psi Concrete | 23090 lbs. |
| Washer Outside Dia. | 2 1/2" |
| Wedge Anchor Type | Standard |
Wedge Anchor
| height | 8.38 |
|---|---|
| length | 26.67 |
| width | 13.46 |
| hs code | 7318152095 |
|---|---|
| country of origin | US |
| weight | 7.852500 |
| Style | Model | Thread Size | Anchor Length | Anchor Dia. | Finish | Seismic Approved | Icc Approved For Cracked Concrete | Min. Embedment | Max. Work Thickness | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 2614134 | 1/4"-20 | 1 3/4" | 1/4" | Zinc Plated | No | No | 1 1/8" | 5/8" | 17.33 | |
| B | 2614214 | 1/4"-20 | 2 1/4" | 1/4" | Zinc Plated | No | No | 1 1/8" | 1 1/8" | 19.24 | |

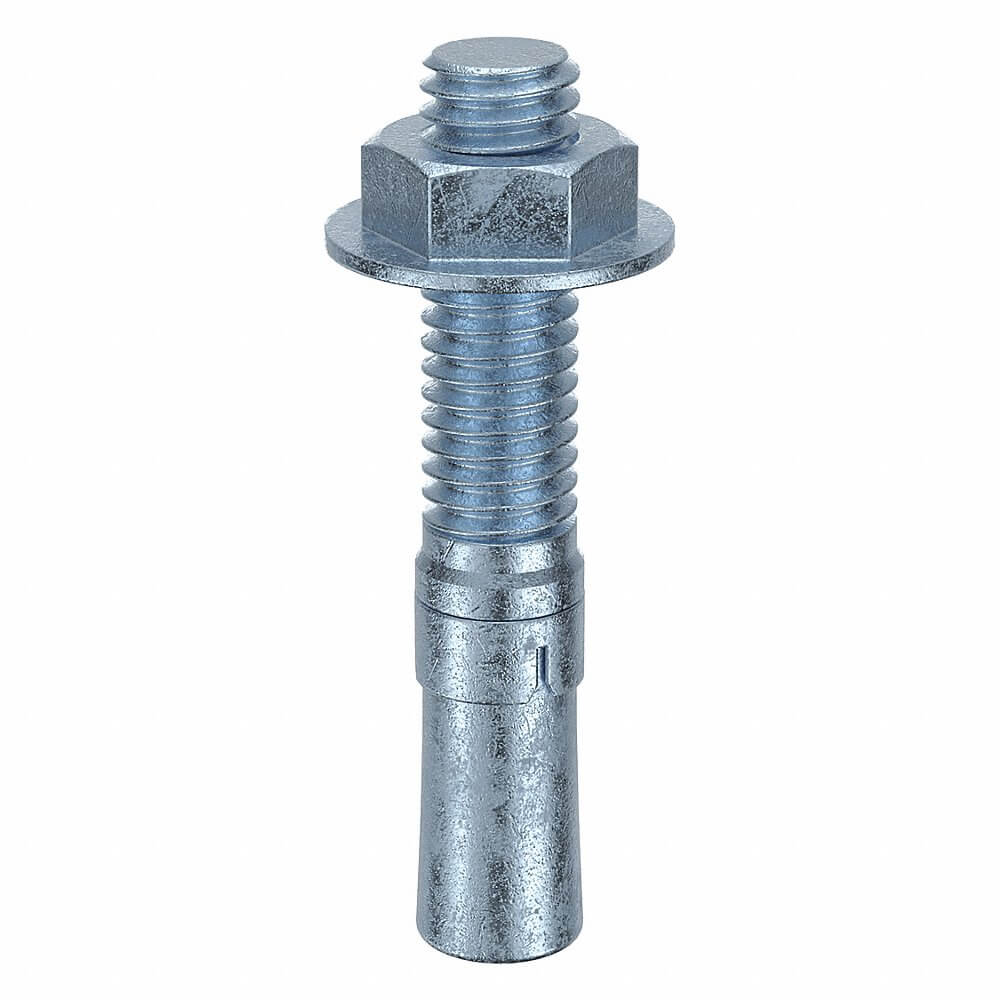

| C | 2638214 | 3/8"-16 | 2 1/4" | 3/8" | Zinc Plated | No | No | 1 5/8" | 5/8" | 22.75 | |

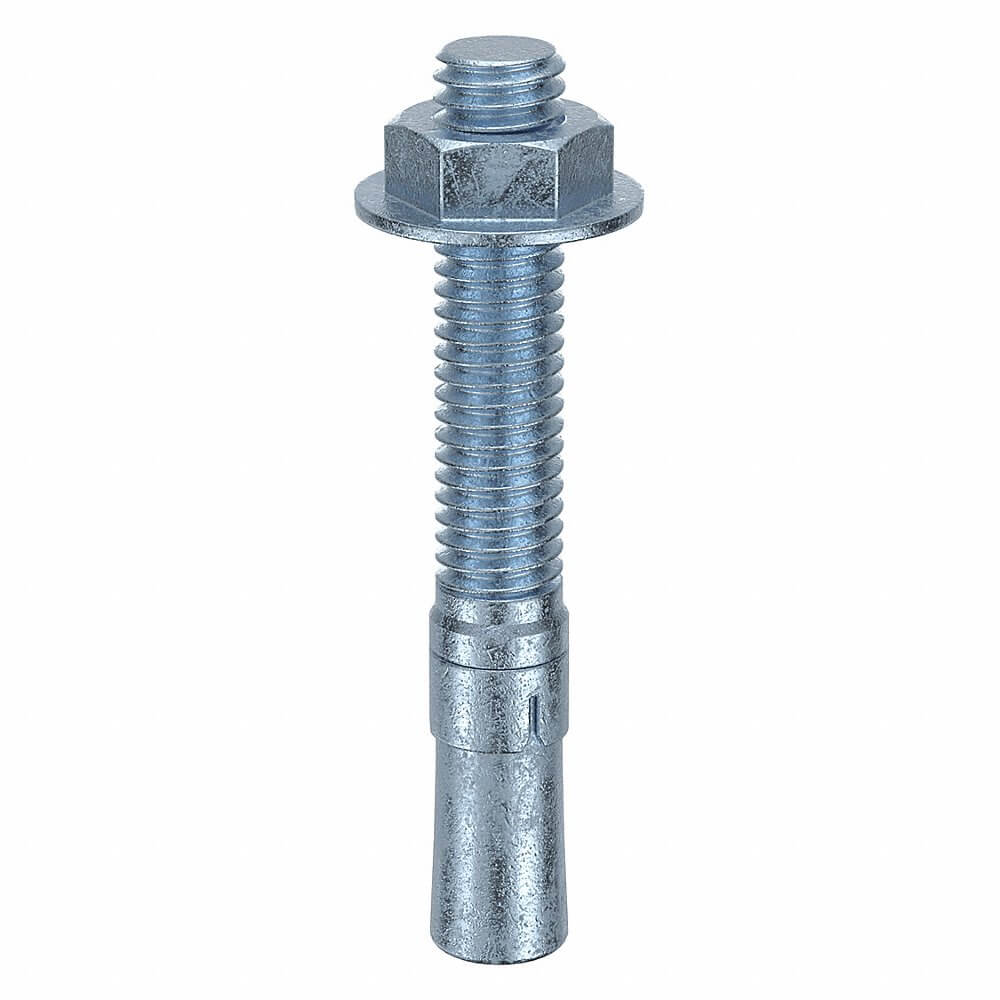

| D | 2638234 | 3/8"-16 | 2 3/4" | 3/8" | Zinc Plated | No | No | 1 5/8" | 1 1/8" | 24.34 | |
| E | 2638300 | 3/8"-16 | 3" | 3/8" | Zinc Plated | No | No | 1 5/8" | 1 3/8" | 28.04 | |
| F | 2638334 | 3/8"-16 | 3 3/4" | 3/8" | Zinc Plated | No | No | 1 5/8" | 2 1/8" | 30.12 | |
| G | 2638500 | 3/8"-16 | 5" | 3/8" | Zinc Plated | No | No | 1 5/8" | 3 3/8" | 41.62 |
