| 3-a Compliance | Not Rated |
|---|---|
| Ansi Flange Class | Class 150 |
| Body Material | Carbon Steel |
| Bolt Circle Dia. | 5 1/2" |
| Bolt Holes | 4 |
| Connection Type | Lug |
| Disc Alignment | Double Offset |
| Disc Material | Cf8M Stainless Steel |
| Flow Coefficient (cv) | 160 |
| For Media | Steam |
| Handle - Locking | Locking |
| Handle Length | 16.87" |
| Handle Type | Lever |
| Includes Disc Position Indicator | Disc Position Indicator Included |
| Liner Material | RPFTE |
| Lug Dia. | 5/8"-11 |
| Manufacturer Warranty | 1 yr. |
| Max. Pressure (cwp) | 285 psi |
|---|---|
| Max. Steam Pressure | 150 psi |
| Max. Water Pressure | 150 psi |
| Media Temp. Range | -20°F to +400°F |
| Media Temperature Range | -20°F to +400°F |
| No. Of Bolt Holes | 4 |
| Number Of Bolt Holes | 4 |
| O-ring Material | Graphite |
| Pipe Size | 2 1/2" |
| Stem Material | 17-4PH Stainless Steel |
| Stop Positions | 10 |
| Style | Lug |
| Temp. Range | -20°F to +400°F |
| Vacuum Service Rating | Not Rated |
| Valve Series | HP |
| standard | API 598, API 609B, ASME/ANSI B16.34, ASME/ANSI B16.5 OR B16.47, ASTM A 351 CF8M SS, ASTM-A216 WCB CS, MSS SP-25, MSS SP-55, MSS SP-61, MSS SP-68 |

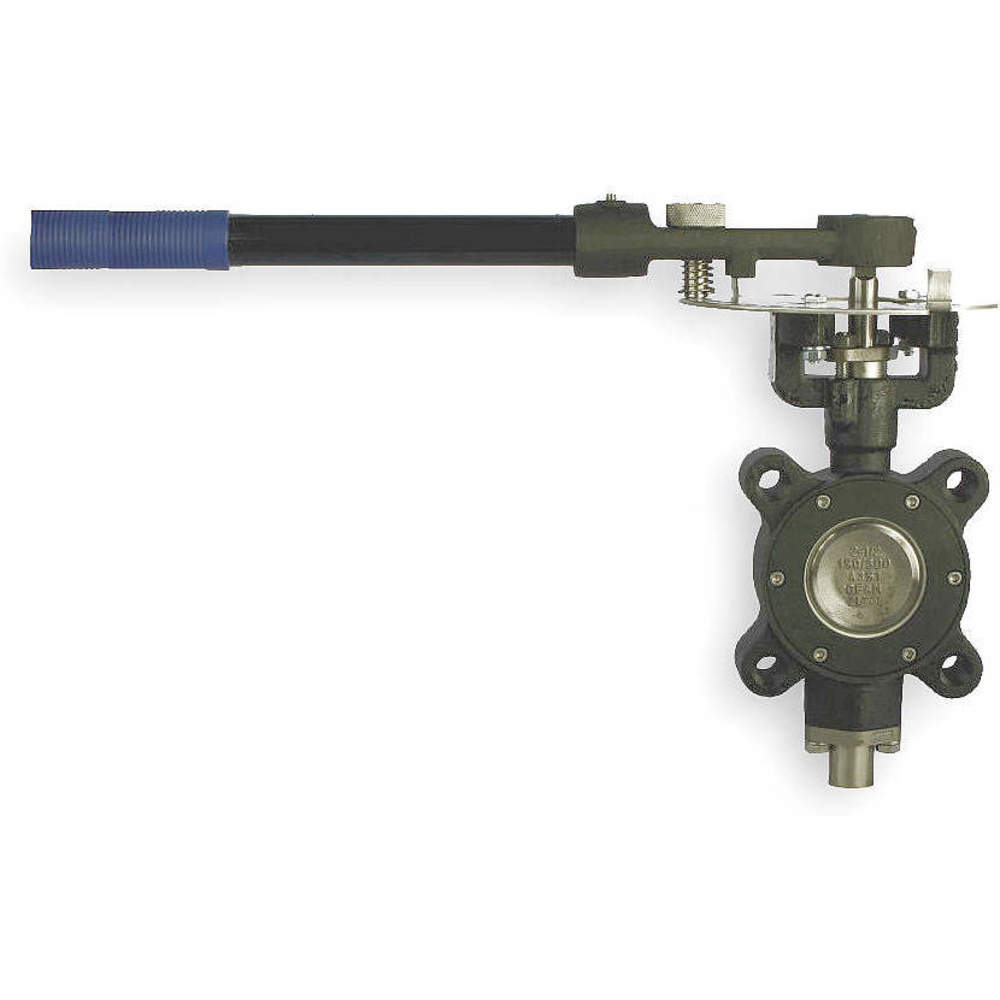

Butterfly Valve
| height | 35.81 |
|---|---|
| length | 27.94 |
| width | 23.11 |
| hs code | 8481803075 |
|---|---|
| country of origin | CN |
| weight | 8.154000 |
| Style | Model | Handle Type | Body Material | Pipe Size | Temp. Range | Liner Material | Disc Material | Lug Dia. | Number Of Bolt Holes | Price (ex. VAT) | Cart |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | CL223E 2 | Lever | Cast Iron | 2" | -30°F to +250°F | EPDM | Aluminum Bronze Alloy | 5/8"-11 | 4 | 230.32 | |
| A | CL223E 2-1/2 | Lever | Cast Iron | 2 1/2" | -30°F to +250°F | EPDM | Aluminum Bronze Alloy | 5/8"-11 | 4 | 237.35 | |
| A | CL223E 3 | Lever | Cast Iron | 3" | -30°F to +250°F | EPDM | Aluminum Bronze Alloy | 5/8"-11 | 4 | 227.65 | |
| B | CL223E 4 | Lever | Cast Iron | 4" | -30°F to +250°F | EPDM | Aluminum Bronze Alloy | 5/8"-11 | 8 | 329.90 | |
| B | CL223E 5 | Lever | Cast Iron | 5" | -30°F to +250°F | EPDM | Aluminum Bronze Alloy | 3/4"-10 | 8 | 380.70 | |
| B | CL223E 6 | Lever | Cast Iron | 6" | -30°F to +250°F | EPDM | Aluminum Bronze Alloy | 3/4"-10 | 8 | 449.58 | |
| B | CL223E 8 | Lever | Cast Iron | 8" | -30°F to +250°F | EPDM | Aluminum Bronze Alloy | 3/4"-10 | 8 | 662.59 |
