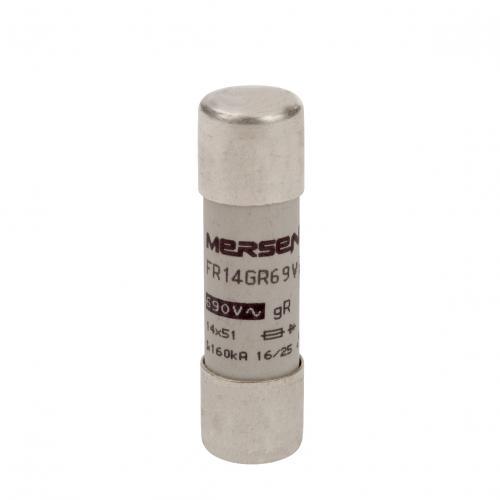

MERSEN FERRAZ Z1017197 FR14GR69V4 Fuse, 4A, 10PK
Item: CH6CYA
Model: Z1017197
In Stock
Get it by Thursday, Apr 16
£1184.15/pkg. of 10
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Ac Max I.r./breaking Capacity I1 | 160 kA |
|---|---|
| Ac/dc | AC |
| Ampere Rating | 4A |
| Body/insulating Material | Ceramic |
| Clearing I2t At Rated Voltage | 13 sq. A sec. |
| Connection/terminal Material | Copper |
| Connection/terminal Type | Ferrule |
| Diameter | 14.3 mm |
| Finish | Silver Plated |
| Fuse Size | 14" x 51" |
|---|---|
| Length | 51 mm |
| Melting I2t | 6.7 sq. A sec. |
| Mounting | Clip |
| Power Dissipation At Rated Current Value | 2.9 W |
| Product Group | Semiconductor Protection Fuses |
| Rated Voltage Ac Iec | 690V |
| Rohs Compliant | Yes |
| Speed Characteristic | GR |
Product Details
Fuse
Shipping Information
| height | 1.6 |
|---|---|
| length | 10.39 |
| width | 7.49 |
|---|---|
| weight | 0.198500 |
