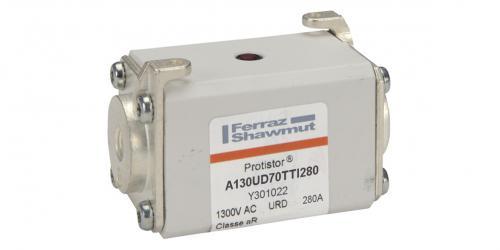

MERSEN FERRAZ Y301022 A130UD70TTI280 Fuse, 280A
Item: CH6CXB
Model: Y301022
In Stock
Get it by Thursday, Apr 16
£746.22/unit
(Inc. VAT)
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Ac Max I.r./breaking Capacity I1 | 150 kA |
|---|---|
| Ac/dc | AC |
| Ampere Rating | 280A |
| Body/insulating Material | Ceramic |
| Clearing I2t At Rated Voltage | 106000 sq. A sec. |
| Connection/terminal Material | Brass |
| Connection/terminal Type | Flush Ends |
| Finish | Silver Plated |
| Fuse Size | 70 |
| Height | 49.5 mm |
| Indication System | Yes |
| Indication System Type | Striker |
|---|---|
| Length | 74 mm |
| Melting I2t | 14200 sq. A sec. |
| Mounting | Bolted |
| Power Dissipation At Rated Current Value | 61 W |
| Product Group | Semiconductor Protection Fuses |
| Rated Voltage Ac Iec | 1200V |
| Rated Voltage Ac Ul | 1300V |
| Speed Characteristic | AR |
| Width | 39.8 mm |
Product Details
Fuse
Shipping Information
| height | 54.99 |
|---|---|
| length | 13.49 |
| width | 8.51 |
|---|---|
| weight | 1.041800 |
