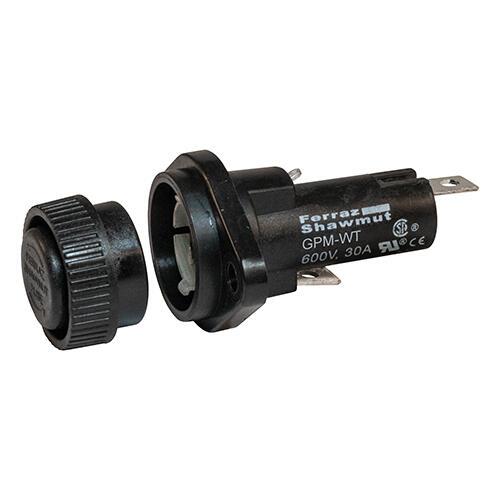

MERSEN FERRAZ GPM-WT Fuse Holder, 600V, 30A, 1 Pole

Item: CH4YFP
Model: GPM-WT
In Stock
Trade Prices Available
Request Quote

Payment

Delivery

Specifications

Item Fuse Base
Ac Voltage Rating 600V AC
Ac/dc AC/DC
Amps 30A
Body Material Thermoplastic
Body/insulating Material Thermoplastic
Design Details Water Tight Screw Knob
Frequency 50/60 Hz
Fuse Installation Method Clip In
Fuse Type Midget
Height 28.7 mm
Installation Mounting Panel Mount
Length 61.5 mm
Max. Fuse Rating 30A
Number Of Poles 1
Product Group Fuse Bases
Rated Voltage Ac Ul 600V
Rated Voltage Dc Ul 600V
Rohs Compliant Yes
Short Circuit Current Rating (sccr) 100 kA
Width 28.7 mm

Product Details

    • WT 1/4 Inch Quick Connect/Solder

Shipping Information

height 17.78
length 11.76
width 5.41
weight 0.306000
