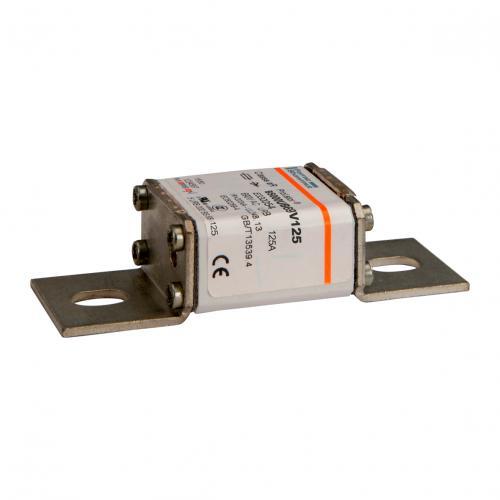

MERSEN FERRAZ E330054 BS000UB69V125 Fuse, 125A, 3PK
Item: CH4XDE
Model: E330054
In Stock
Get it by Tuesday, Apr 14
We deliver to your doorstep under DAP terms. Customs clearance is for your account
Trade Prices Available
Request Quote
Payment
Delivery
Specifications
| Ac Max I.r./breaking Capacity I1 | 200 kA |
|---|---|
| Ac/dc | AC/DC |
| Ampere Rating | 125A |
| Body/insulating Material | Ceramic |
| Clearing I2t At Rated Voltage | 8900 sq. A sec. |
| Connection/terminal Material | Copper |
| Connection/terminal Type | L Brackets |
| Dc Min. Breaking Capacity (mbc) | 20 kA @ 600V |
| Finish | Tin Plated |
| Height | 22.5 mm |
| L/r (ms) | 12 ms |
| Length | 94 mm |
| Max. Rated Breaking Capacity Dc | 55 kA @ 600V DC |
|---|---|
| Melting I2t | 1310 sq. A sec. |
| Mounting | Bolted |
| Power Dissipation At Rated Current Value | 26 W |
| Product Group | Semiconductor Protection Fuses |
| Rated Voltage Ac Iec | 690V |
| Rated Voltage Ac Ul | 690V |
| Rated Voltage Dc Ul | 500V |
| Rohs Compliant | Yes |
| Speed Characteristic | AR |
| Width | 36 mm |
Product Details
Fuse
Shipping Information
| height | 8 |
|---|---|
| length | 13 |
| width | 11 |
|---|---|
| weight | 0.419900 |
